Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0819-018 Gear Secondary drive	0819-018	US $109.04
2	2 3305-554 Washer Thrust	3305-554	US $3.92
3	3 0827-047 Nut	0827-047	US $12.62
4	4 0817-001 Nut	0817-001	US $10.16
	replacement
4	4 3306-428 Nut	3306-428	US $11.47
5	5 3304-958 Washer	3304-958	US $5.87
6	6 0819-022 Flange Output joint	0819-022	US $99.95
7	7 0830-144 Seal Oil	0830-144	US $17.25
8	8 0832-041 Bearing Rear secondary driven shaft	0832-041	US $213.10
9	9 0828-088 Shim Set; 25 x 34	0828-088	US $7.65
10	10 0819-021 Shaft Secondary driven	0819-021	US $125.22
11	11 0819-070 C-ring Driven bearing	0819-070	US $5.28
12	12 0832-040 Bearing Driven gear	0832-040	US $137.33
13	13 0819-019 Gear Secondary driven	0819-019	US $137.33
14	14 0828-090 Washer Secondary driven gear	0828-090	US $5.28
15	15 0827-022 Nut Secondary driven gear	0827-022	US $12.62
16	16 0819-020 Shaft Secondary driven	0819-020	US $160.58
17	17 0832-026 Bearing Front secondary driven shaft	0832-026	US $120.16
18	18 0819-063 Yoke Propeller shaft joint	0819-063	US $71.66
19	19 1402-164 Joint Universal inc. 20 ;	1402-164	US $23.04
20	20 0423-450 Ring Retaining	0423-450	US $15.68
21	21 0819-071 Yoke Drive output	0819-071	US $85.81

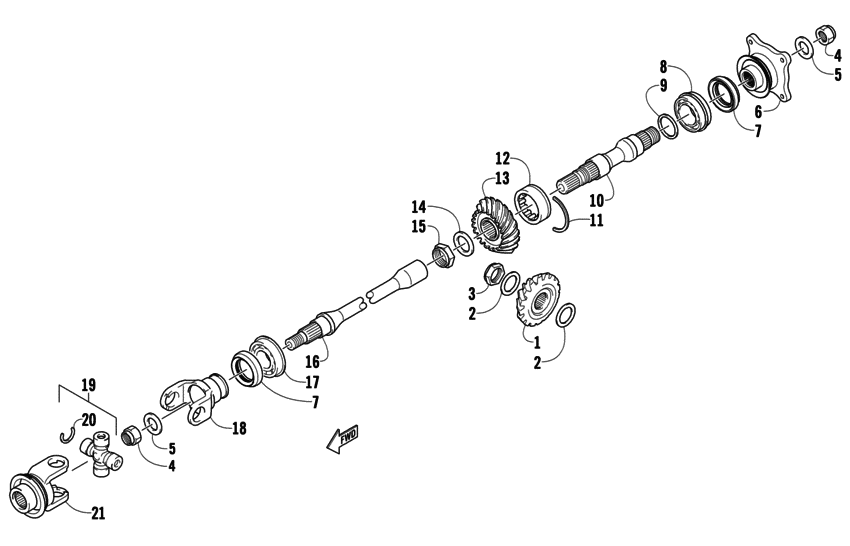

Secondary drive assembly Diagram Arctic Cat TRV 400 TRV 400 H1 Red General 10976321-697434
