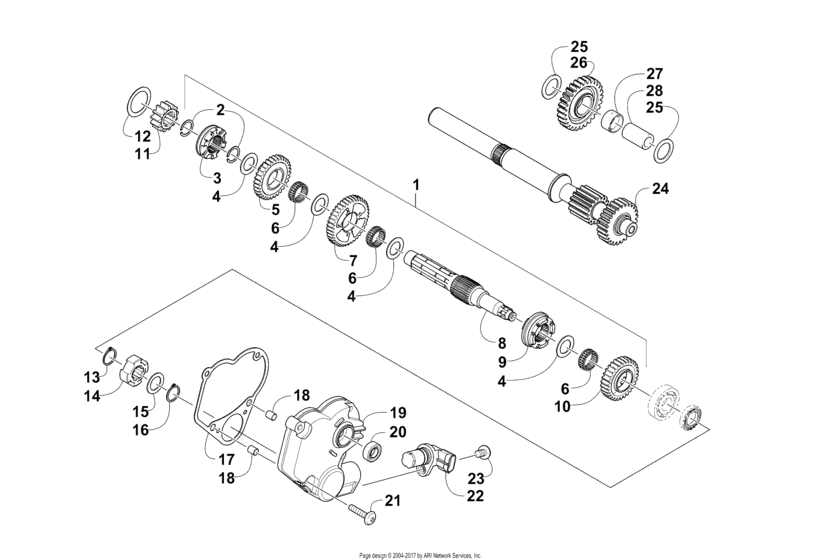

Secondary Transmission Assembly (100045) Diagram Arctic Cat WILDCAT
- Model code
- U2013W3W1PUSY
- Engine Capacity
- 1000
- Year
- 2013
- Colour
- Metallic Orange
- Model
- Wildcat 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0822-144 Countershaft assy - uc(inc. 2-10) |
0822-144 |
US $736.98 |
||
|
2
|
2
0831-085 Cirlclip,ce-shaft-external(inc. 2-10) |
0831-085 |
US $14.94 |
||
|
3
|
3
0822-120 Dog,sliding-reverse sd(inc. 2-10) |
0822-120 |
US $105.52 |
||
|
4
|
4
0822-121 Shim,drive gear spacer(inc. 2-10) |
0822-121 |
US $19.06 |
||
|
5
|
5
0822-119
Gear,reverse-driven-32t
(inc. 2-10) |
0822-119 |
— | ||
|
6
|
6
0832-082 Bearing,roller needle-25x30x13(inc. 2-10) |
0832-082 |
US $45.76 |
||
|
7
|
7
0822-114 Gear,driven-low-40tLow |
0822-114 |
US $139.53 |
||
|
8
|
8
0822-113 Countershaft-sdLow |
0822-113 |
US $326.27 |
||
|
9
|
9
0822-145 Dog,sliding-forward ucLow |
0822-145 |
US $162.47 |
||
| replacement | |||||
|
9
|
9
082-2165 Dog,sliding-Forward (H)Low |
082-2165 |
US $48.43 |
||
|
10
|
10
0822-148 Gear,driven-high, (30t - uc)High |
0822-148 |
US $146 |
||
|
11
|
11
0822-149 Gear,spur-14tHigh |
0822-149 |
US $99.95 |
||
|
12
|
12
0828-011
Washer
High |
0828-011 |
— | ||
|
13
|
13
0831-040 RingRetaining High |
0831-040 |
US $0.59 |
||
|
14
|
14
0822-050 TriggerSpeed sensor High |
0822-050 |
US $17.25 |
||
|
15
|
15
0828-069 WasherThrust High |
0828-069 |
US $1.81 |
||
|
16
|
16
0831-039 RingRetaining High |
0831-039 |
US $0.43 |
||
|
17
|
17
0830-194 GasketHigh |
0830-194 |
US $5.87 |
||
|
18
|
18
0829-062 Dowel,sleeve-od8 x l7High |
0829-062 |
US $30.34 |
||
|
19
|
19
0806-105 HousingSpeedometer sensor High |
0806-105 |
US $83.79 |
||
|
20
|
20
0830-044 SealSub-gear shift shaft High |
0830-044 |
US $5.87 |
||
|
21
|
21
8468-630 ScrewMachine High |
8468-630 |
US $4.40 |
||
|
22
|
22
0430-091 SensorSpeedometer High |
0430-091 |
from US $46.40 |
||
|
23
|
23
8468-620 ScrewMachine High |
8468-620 |
US $0.88 |
||
|
24
|
24
0822-151 Shaft,input - bosHigh |
0822-151 |
US $328.35 |
||
|
25
|
25
0828-016 WasherReverse idle gear High |
0828-016 |
US $7.86 |
||
|
26
|
26
0822-011 GearReverse idle High |
0822-011 |
US $84.55 |
||
|
27
|
27
0822-012 BushingReverse idle gear High |
0822-012 |
US $31.01 |
||
|
28
|
28
0822-015 ShaftReverse idle High |
0822-015 |
US $31.01 |
||
