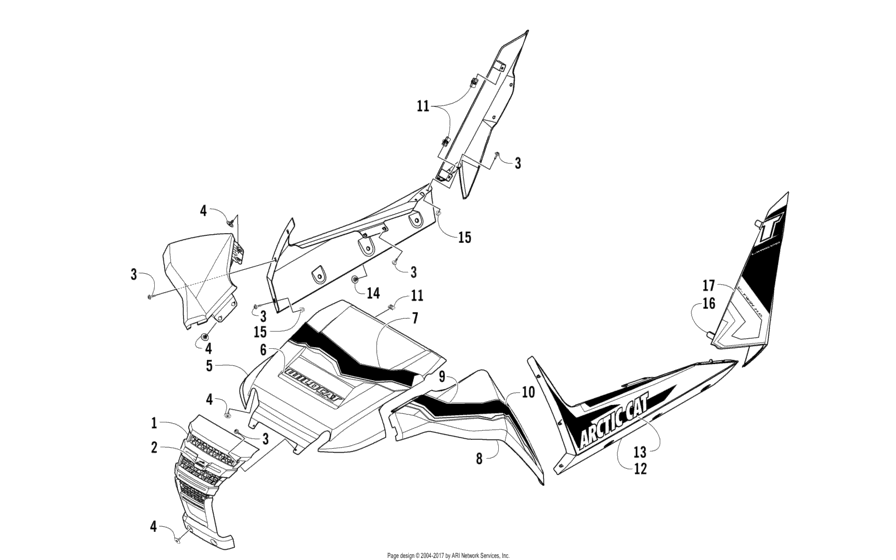

Front And Side Panel Assemblies (100615) Diagram Arctic Cat WILDCAT Wildcat 1000 Limited
- Model code
- U2014WAW1PUSX
- Engine Capacity
- 1000
- Year
- 2014
- Commercial Name
- Wildcat 1000 Limited
- Colour
- Green
- Model
- Wildcat 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2416-685 Grille,frontBlack |
2416-685 |
US $44.38 |
||
|
2
|
2
2411-943 Decal,grill-frontBlack |
2411-943 |
US $17.42 |
||
|
3
|
3
0423-609 ScrewGas tank mount Black |
0423-609 |
US $5.36 |
||
|
4
|
4
0423-101 ScrewBody Black |
0423-101 |
US $14.40 |
||
|
5
|
5
5506-417 HOOD,SD WHITE-PTDWhite |
5506-417 |
US $526.27 |
||
|
6
|
6
3411-763 DECAL,HOOD FWD-TAGWhite |
3411-763 |
US $11.25 |
||
|
7
|
7
3411-762 DECAL,HOOD CREST-TAGWhite |
3411-762 |
US $42.42 |
||
|
8
|
8
5506-142 Panel,fender-frt-rh slvr dlr wht-ptdRight - White |
5506-142 |
US $220.18 |
||
|
8
|
8
5506-143 Panel,fender-frt-lh slvr dlr wht-ptdLeft - White |
5506-143 |
US $241.39 |
||
|
9
|
9
3411-764 DECAL,FR FENDER UPR RH-TAGUpper - Right |
3411-764 |
US $23.76 |
||
|
9
|
9
3411-765 DECAL,FR FENDER UPR LH-TAGUpper - Left |
3411-765 |
US $23.76 |
||
|
10
|
10
3411-766 DECAL,FR FENDER LWR RH-TAGLower - Right |
3411-766 |
US $23.76 |
||
|
10
|
10
3411-767 DECAL,FR FENDER LWR LH-TAGLower - Left |
3411-767 |
US $23.76 |
||
|
11
|
11
0423-577 ClipU-nut Lower - Left |
0423-577 |
US $2.90 |
||
|
12
|
12
2416-988 Panel,side-lwr-rh-blkLower Front - Right - Black |
2416-988 |
US $158.54 |
||
|
12
|
12
2416-989 Panel,side-lwr-lh-blkLower Front - Left - Black |
2416-989 |
US $158.54 |
||
|
13
|
13
3411-772 DECAL,SIDE LWR RH-TAGRight |
3411-772 |
US $59.55 |
||
|
13
|
13
3411-773 DECAL,SIDE LWR LH-TAGLeft |
3411-773 |
US $59.55 |
||
|
14
|
14
1423-133 Screw,shoulder 11 x 3.5 x 6mmLeft |
1423-133 |
US $18.68 |
||
|
15
|
15
8427-602 NutLeft |
8427-602 |
US $1.45 |
||
|
16
|
16
2416-990 Panel,side-upr-rh-blkUpper Rear - Right - Black |
2416-990 |
US $39.34 |
||
|
16
|
16
2416-991 Panel,side-upr-lh-blkUpper Rear - Left - Black |
2416-991 |
US $39.34 |
||
|
17
|
17
3411-774 DECAL,PILLAR RH-TAGRight |
3411-774 |
US $59.55 |
||
|
17
|
17
3411-775 DECAL,PILLAR LH-TAGLeft |
3411-775 |
US $59.55 |
