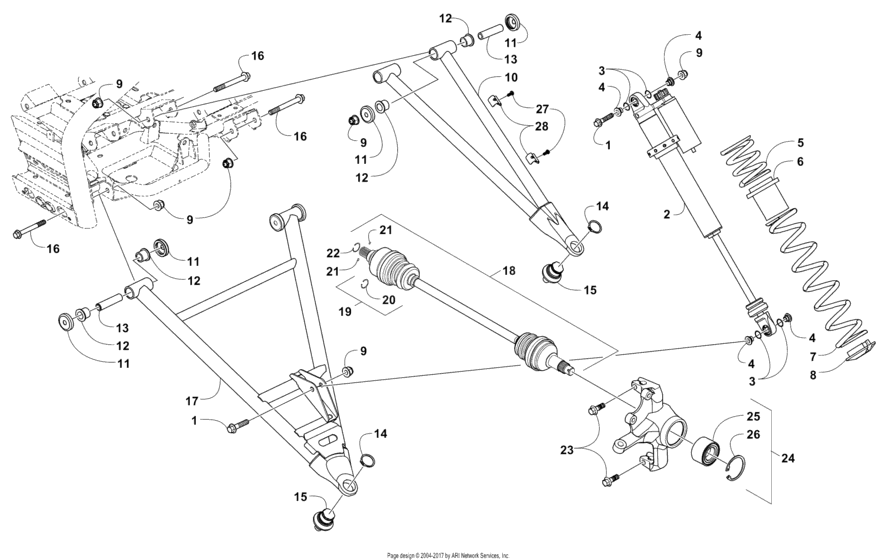

Front Suspension Assembly (97892) Diagram Arctic Cat WILDCAT Wildcat 1000 Limited
- Model code
- U2013W2W1PUSE
- Engine Capacity
- 1000
- Year
- 2013
- Commercial Name
- Wildcat 1000 Limited
- Colour
- Metallic Red
- Model
- Wildcat 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8409-050 ScrewRight; cap (inc. 40) |
8409-050 |
US $2.56 |
||
|
2
|
2
0403-251 Shock, front-9.0 in travel(inc. 3-4) |
0403-251 |
US $818 |
||
|
3
|
3
0403-273 O-ring, shock spacer(inc. 3-4) |
0403-273 |
US $26.80 |
||
|
4
|
4
0403-268 Spacer, front shock mount(inc. 3-4) |
0403-268 |
US $5.75 |
||
|
5
|
5
0503-503
Spring, front - tender - ptd-white
Upper - White |
0503-503 |
— | ||
|
6
|
6
0403-280 Slider,springUpper - White |
0403-280 |
US $14.22 |
||
|
7
|
7
0503-502 Spring, front - main - ptd-whiteLower - White |
0503-502 |
US $191.86 |
||
|
8
|
8
0403-272 Retainer, springLower - White |
0403-272 |
US $42.37 |
||
|
9
|
9
8428-002 NutLock Lower - White |
8428-002 |
US $27.20 |
||
|
10
|
10
0503-724 A-ARM,FR UPR RH-PTD VR ASSYRed | (inc. 14-18) |
0503-724 |
US $359.58 |
||
|
10
|
10
0503-725 A-ARM,FR UPR LH-PTD VR ASSYRed | (inc. 14-18) |
0503-725 |
US $535.38 |
||
|
11
|
11
3313-113 SealSuspension Red | (inc. 14-18) |
3313-113 |
US $4.43 |
||
|
12
|
12
0403-264 Bushing,suspensionRed | (inc. 14-18) |
0403-264 |
US $57.52 |
||
|
13
|
13
0403-250 Sleeve, suspensionRed | (inc. 14-18) |
0403-250 |
US $8.74 |
||
|
14
|
14
0423-009 ClipBall joint Red | (inc. 14-18) |
0423-009 |
US $1.81 |
||
|
15
|
15
0405-483 Balljoint-assyRed | (inc. 14-18) |
0405-483 |
US $59.33 |
||
|
16
|
16
8413-090 Screw,cap-hfh m10x1.25x90 cl10.9 silvRed | (inc. 14-18) |
8413-090 |
US $20.56 |
||
|
17
|
17
0503-694 A-ARM,FR LWR RH-PTD VR ASSYFront Right - Assembly (Painted Vibrant Red) | (inc. 14-18) |
0503-694 |
US $373.73 |
||
|
17
|
17
0503-695 A-ARM,FR LWR LH-PTD VR ASSYFront Left - Assembly (Painted Vibrant Red) | (inc. 14-18) |
0503-695 |
US $411.10 |
||
|
18
|
18
1502-774 Halfshaft,front lock-double bell-s3Front - Locking | (inc. 24-27) |
1502-774 |
US $455.57 |
||
|
19
|
19
2436-112 KIT,REPAIR-CV BOOT(inc. 22) |
2436-112 |
US $85.81 |
||
|
20
|
20
1441-988 Circlip,halfshaft-internal(inc. 22) |
1441-988 |
US $4.60 |
||
|
21
|
21
1402-885 Pin,transfer,short-coupler axle(inc. 22) |
1402-885 |
US $10 |
||
|
22
|
22
1402-889 Circlip,22mm(inc. 22) |
1402-889 |
US $4.60 |
||
|
23
|
23
0423-998 Screw,shldr-hfh-m10x1.25x30 cl10.9 blk(inc. 22) |
0423-998 |
US $14.52 |
||
|
24
|
24
0503-484 Knuckle,front-rh-assyAssembly - Right | (inc. 22-23) |
0503-484 |
US $269.68 |
||
|
24
|
24
0503-485 Knuckle, front-lh-assyAssembly - Left | (inc. 22-23) |
0503-485 |
US $294.93 |
||
|
25
|
25
1402-809 BearingAssembly - Left | (inc. 22-23) |
1402-809 |
US $39.89 |
||
|
26
|
26
0423-423 RingRetaining Assembly - Left | (inc. 22-23) |
0423-423 |
US $5.74 |
||
|
27
|
27
0423-946 ScrewSelf-tapping Assembly - Left | (inc. 22-23) |
0423-946 |
US $3.52 |
||
|
28
|
28
0403-257 Bracket,brake line - 1" odAssembly - Left | (inc. 22-23) |
0403-257 |
US $11.72 |
