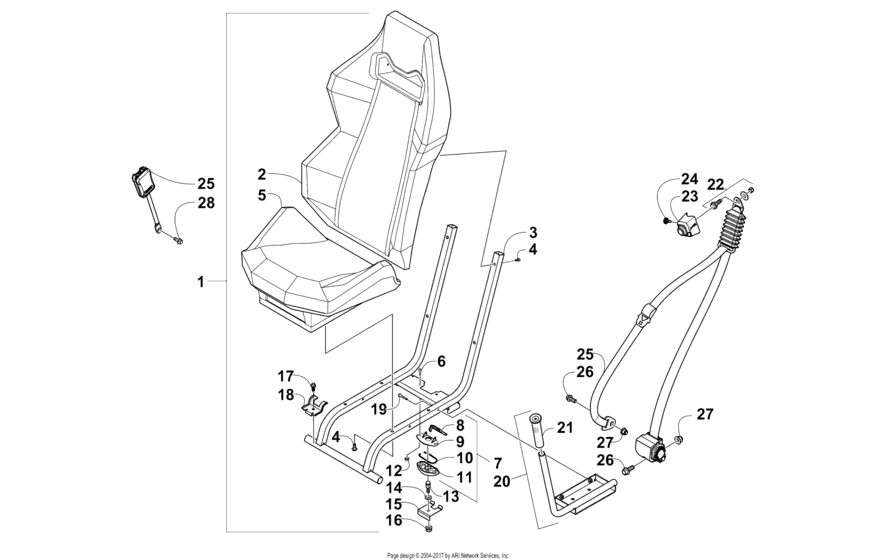

Front Seat Assembly (98588) Diagram Arctic Cat WILDCAT Wildcat 4
- Model code
- U2013W4W1PUSA
- Engine Capacity
- 1000
- Year
- 2013
- Commercial Name
- Wildcat 4
- Colour
- Metallic Green
- Model
- Wildcat 4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5506-070 Seat, front - assyAssembly - Black | (inc. 2-15) |
5506-070 |
US $711.07 |
||
|
2
|
2
5506-075 Seat, back(inc. 3-4) |
5506-075 |
US $487.89 |
||
|
3
|
3
5506-069 Frame, front seat- ptd blackBlack |
5506-069 |
US $241.39 |
||
|
4
|
4
8468-617 ScrewMachine Black |
8468-617 |
US $2.96 |
||
|
5
|
5
5506-074 Seat, base(inc. 8) |
5506-074 |
US $308.06 |
||
|
6
|
6
8468-620 ScrewMachine (inc. 8) |
8468-620 |
US $0.88 |
||
|
7
|
7
2706-164 LatchAssembly; seat Assembly | (inc. 34-36) |
2706-164 |
US $17.09 |
||
|
8
|
8
2606-854 LeverSeat latch Assembly | (inc. 34-36) |
2606-854 |
US $10.94 |
||
| replacement | |||||
|
8
|
8
2706-164 LatchAssembly; seat Assembly | (inc. 34-36) |
2706-164 |
US $17.09 |
||
|
9
|
9
1673-635 CoverLatch Assembly | (inc. 34-36) |
1673-635 |
US $5.20 |
||
|
10
|
10
0673-023 ClipRetaining Assembly | (inc. 34-36) |
0673-023 |
US $31.10 |
||
|
11
|
11
1673-634 BackLatch Assembly | (inc. 34-36) |
1673-634 |
US $7.36 |
||
|
12
|
12
0623-038 Nut w/washerAssembly | (inc. 34-36) |
0623-038 |
US $2.15 |
||
|
13
|
13
0423-559 StudSeat; latch Seat |
0423-559 |
US $13.31 |
||
|
14
|
14
8050-282 WasherSeat |
8050-282 |
from US $1.60 |
||
|
15
|
15
5506-253 Bracket, latch protectorSeat |
5506-253 |
US $14.22 |
||
|
16
|
16
8424-002 NutSeat |
8424-002 |
US $4.40 |
||
|
17
|
17
8408-821 ScrewCap Seat |
8408-821 |
US $6 |
||
|
18
|
18
5506-078 Bracket, seat mounting - ptd blackSeat |
5506-078 |
US $18.99 |
||
|
19
|
19
8477-635 ScrewMachine Seat |
8477-635 |
US $1.20 |
||
|
20
|
20
5506-173 Handle - assy(inc. 21) |
5506-173 |
US $109.04 |
||
|
21
|
21
4606-945 GripHandlebar (inc. 21) |
4606-945 |
US $19.54 |
||
|
22
|
22
0423-915 ScrewAssembly; shoulder Assembly | (inc. 9-11) |
0423-915 |
US $23.76 |
||
|
23
|
23
2416-936 Cover,seatbelt-rhRight |
2416-936 |
US $23.76 |
||
|
23
|
23
2416-937 Cover,seatbelt-lhLeft |
2416-937 |
US $21.13 |
||
|
24
|
24
0623-784
Screw
Left |
0623-784 |
— | ||
| replacement | |||||
|
24
|
24
2623-163 Screw, Self-TappingLeft |
2623-163 |
US $9.05 |
||
|
25
|
25
5506-160 Belt,seat-3pt 11.5" nar cable-assyAssembly |
5506-160 |
US $351.50 |
||
|
26
|
26
1423-182 Screw,cap-hfh m12x1.75x30 cl10.9 rie blkAssembly |
1423-182 |
US $21.68 |
||
|
27
|
27
1423-184 Nut,hex flg-nyl lock m12x1.75 cl10 z&yAssembly |
1423-184 |
US $9.04 |
||
|
28
|
28
1423-183 Screw,cap-hfhm12x1.75x30cl10.9rie w/2353Assembly |
1423-183 |
US $5.70 |
||
