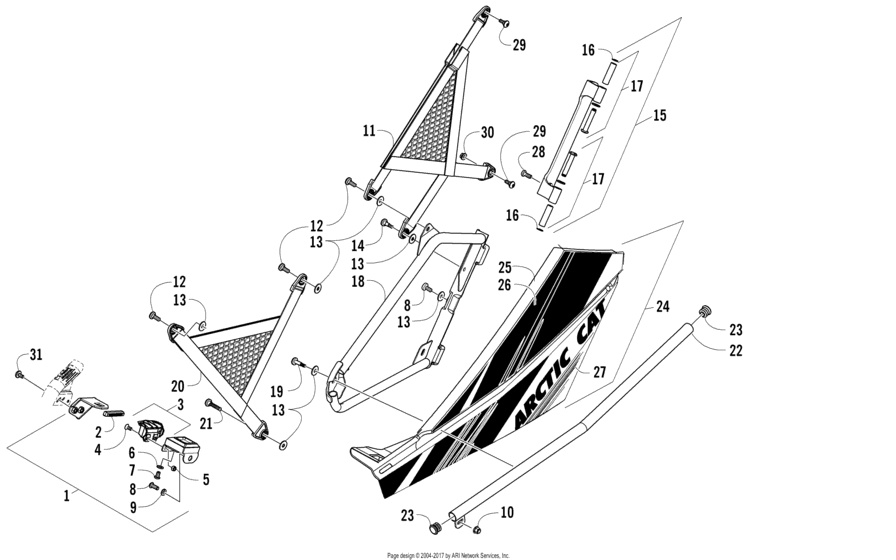

Rear Door Assembly (98613) Diagram Arctic Cat WILDCAT Wildcat 4
- Model code
- U2013W4W1PUSA
- Engine Capacity
- 1000
- Year
- 2013
- Commercial Name
- Wildcat 4
- Colour
- Metallic Green
- Model
- Wildcat 4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1436-802 Kit,buckle-rear-rh-assyRight Assembly | (inc. 2-10) |
1436-802 |
US $163.73 |
||
|
1
|
1
1436-803 Kit,buckle-rear-lh-assyLeft Assembly | (inc. 2-10) |
1436-803 |
US $173.42 |
||
|
2
|
2
4406-262 Bumper,latchLeft Assembly | (inc. 2-10) |
4406-262 |
US $9.86 |
||
|
3
|
3
1436-475 Tongue guide-door-assyAssembly | (inc. 4-5) |
1436-475 |
US $37.33 |
||
|
4
|
4
1423-155 SFH SCREW BLK CL10.9 M5X12 (ISO 10642)Assembly | (inc. 4-5) |
1423-155 |
US $14 |
||
|
5
|
5
1423-154 Hex nylon nut cl8 blk zinc m5 (din 985)Assembly | (inc. 4-5) |
1423-154 |
US $5 |
||
|
6
|
6
8051-213 WasherLock Assembly | (inc. 4-5) |
8051-213 |
US $2.96 |
||
| replacement | |||||
|
6
|
6
8051-212
Washer
Assembly | (inc. 4-5) |
8051-212 |
— | ||
|
7
|
7
8468-616 ScrewMachine Assembly | (inc. 4-5) |
8468-616 |
US $3.52 |
||
|
8
|
8
1423-113 Screw,cap button head torx blk m6-1x10Assembly | (inc. 4-5) |
1423-113 |
US $15.68 |
||
|
9
|
9
1423-119 FLAT WASHER BLK MAGNI 575 COATING M6Assembly | (inc. 4-5) |
1423-119 |
US $18.80 |
||
|
10
|
10
1423-171 Nut,flg lock-nylon sl m6-1.0 cl8 z&bAssembly | (inc. 4-5) |
1423-171 |
US $3.52 |
||
|
11
|
11
4406-260 Net,fabric-upper-rearUpper |
4406-260 |
US $49.44 |
||
|
12
|
12
1423-196 Bolt,shoulder-m6 x 1.0 x 12mm lgUpper |
1423-196 |
US $14.50 |
||
|
13
|
13
8050-223 WasherFlat Upper |
8050-223 |
US $1.72 |
||
|
14
|
14
1423-187 Bolt,shoulder-m5x0.8x17mmUpper |
1423-187 |
US $16.36 |
||
|
15
|
15
1436-476 Hinge-door-rh-assyAssembly - Right | (inc. 20-21) |
1436-476 |
US $94.90 |
||
|
15
|
15
1436-454 Hinge-door-lh-assyAssembly - Left | (inc. 20-21) |
1436-454 |
US $94.90 |
||
|
16
|
16
1423-118 Circlip blk magni 575 coating (8mm)Assembly - Left | (inc. 20-21) |
1423-118 |
US $9.15 |
||
|
17
|
17
0518-096 Kit,door hinge pinAssembly - Left | (inc. 20-21) |
0518-096 |
US $48.43 |
||
|
18
|
18
5506-200 Frame,rear door-rh-blackRight |
5506-200 |
US $275.74 |
||
|
18
|
18
5506-201 Frame,rear door-lh-blackLeft |
5506-201 |
US $275.74 |
||
|
19
|
19
1423-192 BOLT,SHOULDER-M5X0.8X23MMLeft |
1423-192 |
US $16 |
||
|
20
|
20
4406-261 Net,fabric-lower-rearLower |
4406-261 |
US $53.49 |
||
|
21
|
21
1423-205 Screw,shoulder-m6 x 1.0 x 35-blkLower |
1423-205 |
US $7.26 |
||
|
22
|
22
5506-204 Tube,rear door frame-rh-blackRight |
5506-204 |
US $53.49 |
||
|
22
|
22
5506-205 Tube,rear door frame-lh-blackLeft |
5506-205 |
US $53.49 |
||
|
23
|
23
4406-013 Cap,plasticLeft |
4406-013 |
US $9.24 |
||
|
24
|
24
0518-102 Door,rear-w/decals-agm-rhRight | (inc. 25-27) |
0518-102 |
US $266.70 |
||
|
24
|
24
0518-103 Door,rear-w/decals-agm-lhLeft | (inc. 25-27) |
0518-103 |
US $274.17 |
||
|
25
|
25
4406-256 Panel,rear door-rhRight - Black |
4406-256 |
US $238.80 |
||
|
25
|
25
4406-257 Panel,rear door-lhLeft - Black |
4406-257 |
US $269.68 |
||
|
26
|
26
3411-278 Decal,rear door-up-wc4-agm-rhUpper Right |
3411-278 |
US $31.26 |
||
|
26
|
26
3411-279 Decal,rear door-up-wc4-agm-lhUpper Left |
3411-279 |
US $31.26 |
||
|
27
|
27
3411-280 Decal,rear door-lwr-wc4-agm-rhLower Right |
3411-280 |
US $42.42 |
||
|
27
|
27
3411-281 Decal,rear door-lwr-wc4-agm-lhLower Left |
3411-281 |
US $49.44 |
||
|
28
|
28
0423-817 ScrewMachine Lower Left |
0423-817 |
US $8.52 |
||
|
29
|
29
0423-355 ScrewShoulder Lower Left |
0423-355 |
US $5.36 |
||
|
30
|
30
8427-602 NutLower Left |
8427-602 |
US $1.45 |
||
|
31
|
31
0826-029 ScrewLower Left |
0826-029 |
US $0.88 |
||
