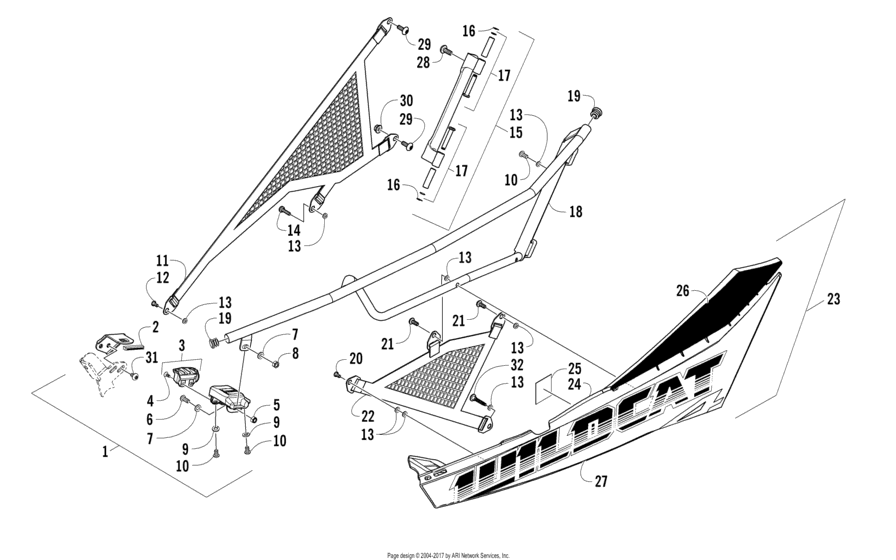

Front Door Assembly (100695) Diagram Arctic Cat WILDCAT Wildcat 4X
- Model code
- U2014WFW1PUSD
- Engine Capacity
- 1000
- Year
- 2014
- Commercial Name
- Wildcat 4X
- Colour
- Blue
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1436-800
New Genuine Part
Right - Assembly | (inc. 2-10) |
1436-800 |
— | ||
| replacement | |||||
|
1
|
1
343-6102 Kit,buckle Replacement (1436-801)Right - Assembly | (inc. 2-10) |
343-6102 |
US $309.07 |
||
|
1
|
1
1436-801
New Genuine Part
Left - Assembly | (inc. 2-10) |
1436-801 |
— | ||
|
2
|
2
4406-262 Bumper,latchLeft - Assembly | (inc. 2-10) |
4406-262 |
US $9.86 |
||
|
3
|
3
1436-475 Tongue guide-door-assyAssembly | (inc. 4-5) |
1436-475 |
US $37.33 |
||
|
4
|
4
1423-155 SFH SCREW BLK CL10.9 M5X12 (ISO 10642)Assembly | (inc. 4-5) |
1423-155 |
US $14 |
||
|
5
|
5
1423-154 Hex nylon nut cl8 blk zinc m5 (din 985)Assembly | (inc. 4-5) |
1423-154 |
US $5 |
||
|
6
|
6
8468-616 ScrewMachine Assembly | (inc. 4-5) |
8468-616 |
US $3.52 |
||
|
7
|
7
1423-119 FLAT WASHER BLK MAGNI 575 COATING M6Assembly | (inc. 4-5) |
1423-119 |
US $18.80 |
||
|
8
|
8
1423-153 Hex nylon nut cl8 blk zinc m6(din 985)Assembly | (inc. 4-5) |
1423-153 |
US $2.46 |
||
|
9
|
9
8051-213 WasherLock Assembly | (inc. 4-5) |
8051-213 |
US $2.96 |
||
| replacement | |||||
|
9
|
9
8051-212
Washer
Assembly | (inc. 4-5) |
8051-212 |
— | ||
|
10
|
10
1423-113 Screw,cap button head torx blk m6-1x10Assembly | (inc. 4-5) |
1423-113 |
US $15.68 |
||
|
11
|
11
4406-304 Net,fabric-upperUpper |
4406-304 |
US $47.42 |
||
|
12
|
12
1423-206 Bolt,shoulder-m5 x 0.8 x 15mmUpper |
1423-206 |
US $15.24 |
||
|
13
|
13
8050-223 WasherFlat Upper |
8050-223 |
US $1.72 |
||
|
14
|
14
1423-186 Bolt,shoulder-m5x0.8x25mmUpper |
1423-186 |
US $25.24 |
||
|
15
|
15
1436-476 Hinge-door-rh-assyAssembly - Right | (inc. 20-21) |
1436-476 |
US $94.90 |
||
|
15
|
15
1436-454 Hinge-door-lh-assyAssembly - Left | (inc. 20-21) |
1436-454 |
US $94.90 |
||
|
16
|
16
1423-118 Circlip blk magni 575 coating (8mm)Assembly - Left | (inc. 20-21) |
1423-118 |
US $9.15 |
||
|
17
|
17
0518-096 Kit,door hinge pinAssembly - Left | (inc. 20-21) |
0518-096 |
US $48.43 |
||
|
18
|
18
5506-174 Frame,door-rh-blackRight |
5506-174 |
US $255.54 |
||
|
18
|
18
5506-175 Frame,door-lh-blackLeft |
5506-175 |
US $255.54 |
||
|
19
|
19
4406-013 Cap,plasticLeft |
4406-013 |
US $9.24 |
||
|
20
|
20
1423-196 Bolt,shoulder-m6 x 1.0 x 12mm lgLeft |
1423-196 |
US $14.50 |
||
|
21
|
21
1423-197 Bolt,shoulder-m6 x 1.0 x 25mm lgLeft |
1423-197 |
US $11.37 |
||
|
22
|
22
4406-305 Net,fabric-lowerLower |
4406-305 |
US $47.42 |
||
|
23
|
23
0518-152 DOOR,PANEL W/DECALS-VB-FRT-RH(WC4 X)Right | (inc. 24 and 26-27) |
0518-152 |
US $266.70 |
||
|
23
|
23
0518-153 DOOR,PANEL W/DECALS-VB-FRT-LH(WC4 X)Left | (inc. 24-27) |
0518-153 |
US $266.70 |
||
|
24
|
24
4406-246 Panel,door-rhRight - Black |
4406-246 |
US $290.90 |
||
|
24
|
24
0518-061 Door,w/warning-decal-lhLeft - Black | (inc. 25) |
0518-061 |
US $246.64 |
||
|
25
|
25
4411-105 DECAL,WARNING-TIRE PRESSURE (18 PSI)Tire Pressure |
4411-105 |
US $12.62 |
||
|
26
|
26
3411-898 DECAL,DOOR UPR RH-VIP BLUEUpper Right |
3411-898 |
US $41.36 |
||
|
26
|
26
3411-899 DECAL,DOOR UPR LH-VIP BLUEUpper Left |
3411-899 |
US $33.82 |
||
|
27
|
27
3411-900 DECAL,DOOR LWR RH-VIP BLUELower Right |
3411-900 |
US $68.49 |
||
|
27
|
27
3411-901 DECAL,DOOR LWR LH-VIP BLUELower Left |
3411-901 |
US $68.49 |
||
|
28
|
28
0423-817 ScrewMachine Lower Left |
0423-817 |
US $8.52 |
||
|
29
|
29
0423-355 ScrewShoulder Lower Left |
0423-355 |
US $5.36 |
||
|
30
|
30
8427-602 NutLower Left |
8427-602 |
US $1.45 |
||
|
31
|
31
0826-029 ScrewLower Left |
0826-029 |
US $0.88 |
||
|
32
|
32
1423-205 Screw,shoulder-m6 x 1.0 x 35-blkLower Left |
1423-205 |
US $7.26 |
||
