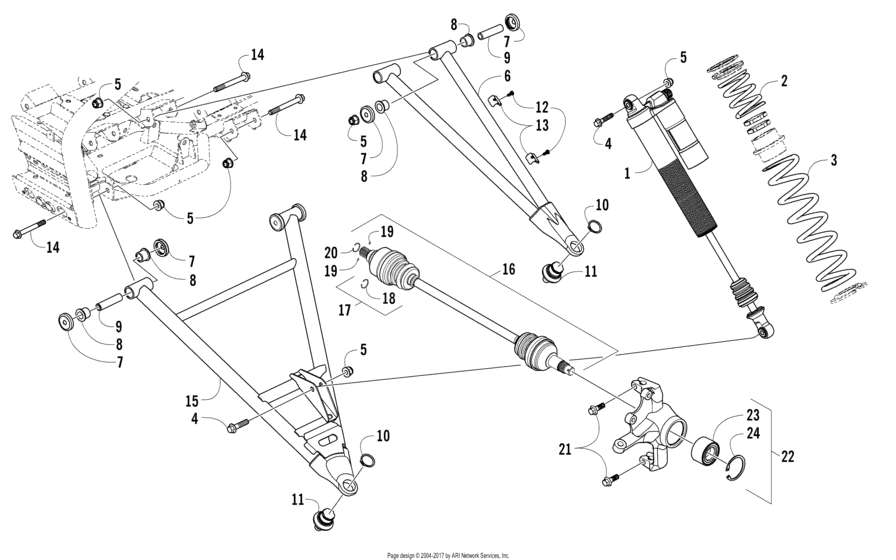

Front Suspension Assembly (100697) Diagram Arctic Cat WILDCAT Wildcat 4X
- Model code
- U2014WFW1PUSD
- Engine Capacity
- 1000
- Year
- 2014
- Commercial Name
- Wildcat 4X
- Colour
- Blue
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0403-344 Shock,front (fox)Assembly |
0403-344 |
US $818 |
||
|
2
|
2
0503-554 Spring, front-tender-ptd whiteUpper - White |
0503-554 |
US $85.81 |
||
|
3
|
3
0503-630 Spring,front-main-ptd whiteLower - White |
0503-630 |
US $85.81 |
||
|
4
|
4
8409-050 ScrewRight; cap Lower - White |
8409-050 |
US $2.56 |
||
|
5
|
5
8428-002 NutLock Lower - White |
8428-002 |
US $27.20 |
||
|
6
|
6
0503-762 A-ARM,FRONT UPPER RH-ASSY N. BLUERight - Blue | (inc. 14-18) |
0503-762 |
US $359.58 |
||
|
6
|
6
0503-763 A-ARM,FRONT UPPER LH-ASSY N. BLUELeft - Blue | (inc. 14-18) |
0503-763 |
US $359.58 |
||
|
7
|
7
1423-204 SEAL,SUSPENSIONLeft - Blue | (inc. 14-18) |
1423-204 |
US $6.58 |
||
|
8
|
8
0403-264 Bushing,suspensionLeft - Blue | (inc. 14-18) |
0403-264 |
US $57.52 |
||
|
9
|
9
0403-250 Sleeve, suspensionLeft - Blue | (inc. 14-18) |
0403-250 |
US $8.74 |
||
|
10
|
10
0423-009 ClipBall joint Left - Blue | (inc. 14-18) |
0423-009 |
US $1.81 |
||
|
11
|
11
0405-483 Balljoint-assyLeft - Blue | (inc. 14-18) |
0405-483 |
US $55.50 |
||
|
12
|
12
0423-946 ScrewSelf-tapping Left - Blue | (inc. 14-18) |
0423-946 |
US $3.52 |
||
|
13
|
13
0403-257 Bracket,brake line - 1" odLeft - Blue | (inc. 14-18) |
0403-257 |
US $11.72 |
||
|
14
|
14
8413-090 Screw,cap-hfh m10x1.25x90 cl10.9 silvLeft - Blue | (inc. 14-18) |
8413-090 |
US $20.56 |
||
|
15
|
15
0503-774 A-ARM,FRONT LOWER RH-ASSY N. BLUERight - Blue | (inc. 14-18) |
0503-774 |
US $364.39 |
||
|
15
|
15
0503-775 A-ARM,FRONT LOWER LH-ASSY N. BLUELeft - Blue | (inc. 14-18) |
0503-775 |
US $411.10 |
||
|
16
|
16
1502-774 Halfshaft,front lock-double bell-s3Front - Locking | (inc. 24-27) |
1502-774 |
US $455.57 |
||
|
17
|
17
2436-112 KIT,REPAIR-CV BOOT(inc. 22) |
2436-112 |
US $85.81 |
||
|
18
|
18
1441-988 Circlip,halfshaft-internal(inc. 22) |
1441-988 |
US $4.60 |
||
|
19
|
19
1402-885 Pin,transfer,short-coupler axle(inc. 22) |
1402-885 |
US $10 |
||
|
20
|
20
1402-889 Circlip,22mm(inc. 22) |
1402-889 |
US $4.60 |
||
|
21
|
21
0423-998 Screw,shldr-hfh-m10x1.25x30 cl10.9 blk(inc. 22) |
0423-998 |
US $14.52 |
||
|
22
|
22
0503-548 Knuckle,front-rh-assy (w4)Assembly - Right | (inc. 26-27) |
0503-548 |
US $312.63 |
||
|
22
|
22
0503-549 Knuckle, front-lh-assy (w4)Assembly - Left | (inc. 26-27) |
0503-549 |
US $522.24 |
||
|
23
|
23
1402-809 BearingAssembly - Left | (inc. 26-27) |
1402-809 |
US $39.89 |
||
|
24
|
24
0423-423 RingRetaining Assembly - Left | (inc. 26-27) |
0423-423 |
US $5.74 |
