Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 5506-435 SEAT,BLK/VBLUE-REAR-ASSY Assembly Blk/Blue \| (inc. 2-8)	5506-435	US $980.60
2	2 5506-431 SEAT BACK-VIP BLUE Assembly Blk/Blue \| (inc. 2-8)	5506-431	US $484.86
3	3 5506-645 COVER, SEAT BACK-VIP BLUE Assembly Blk/Blue \| (inc. 2-8)	5506-645	US $335.85
4	4 1423-265 KIT, SEAT HARDWARE Assembly Blk/Blue \| (inc. 2-8)	1423-265	US $14.22
5	5 5506-072 Frame, rear seat- ptd black Black	5506-072	US $258.56
6	6 8468-617 Screw Machine Black	8468-617	US $2.96
7	7 5506-430 SEAT BASE-VIP BLUE Black	5506-430	US $302
8	8 5506-644 COVER, SEAT BASE-VIP BLUE Black	5506-644	US $292.91
9	9 8468-616 Screw Machine Black	8468-616	US $3.52
10	10 5506-226 Bracket,rear seat-ptd black Black	5506-226	US $23.85
11	11 0423-915 Screw Assembly; shoulder Assembly \| (inc. 9-11)	0423-915	US $23.76
12	12 2416-936 Cover,seatbelt-rh Right	2416-936	US $23.76
12	12 2416-937 Cover,seatbelt-lh Left	2416-937	US $21.13
13	13 0623-784 Screw Left	0623-784	—
	replacement
13	13 2623-163 Screw, Self-Tapping Left	2623-163	US $9.05
14	14 5506-161 Belt,seat-3pt 15.5" nar cable-assy Assembly	5506-161	US $351.50
15	15 1423-182 Screw,cap-hfh m12x1.75x30 cl10.9 rie blk Assembly	1423-182	US $21.68
16	16 1423-184 Nut,hex flg-nyl lock m12x1.75 cl10 z&y Assembly	1423-184	US $9.04
17	17 1423-183 Screw,cap-hfhm12x1.75x30cl10.9rie w/2353 Assembly	1423-183	US $5.70
18	18 8408-821 Screw Cap Assembly	8408-821	US $6

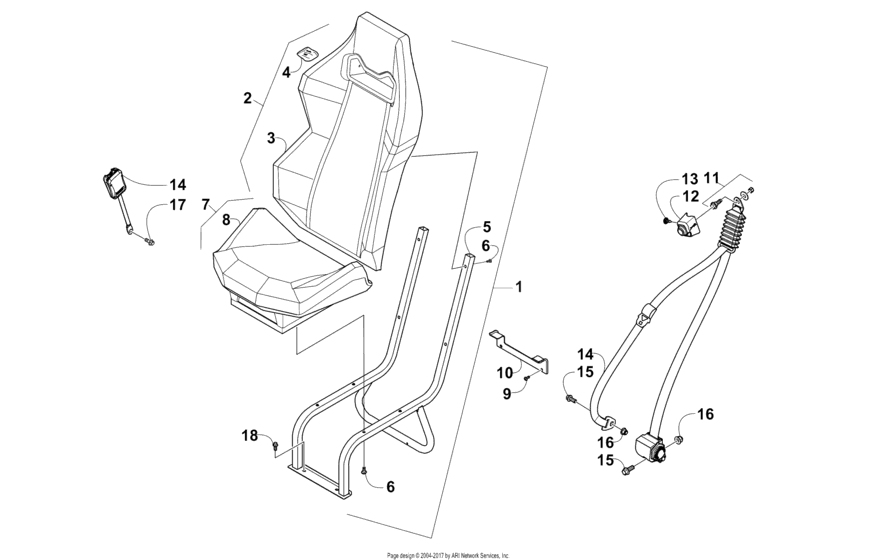

Rear Seat Assembly (100691) Diagram Arctic Cat WILDCAT Wildcat 4X Blue 16814838-861827
