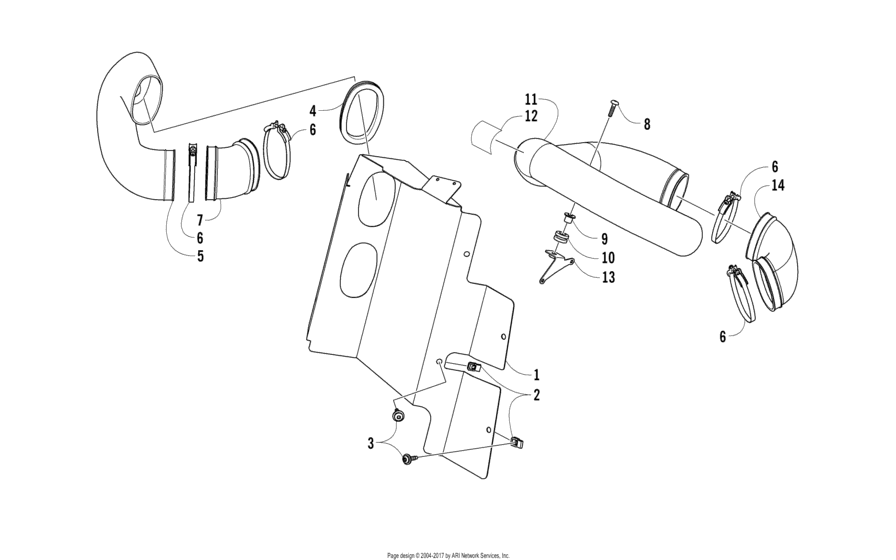

Case/belt Cooling Assembly (97746) Diagram Arctic Cat WILDCAT Wildcat 4X
- Model code
- U2014WFW1POSE
- Engine Capacity
- 1000
- Year
- 2014
- Commercial Name
- Wildcat 4X
- Colour
- Red
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2416-974 Shield,heat-air intakeLeft |
2416-974 |
US $146.43 |
||
|
2
|
2
0423-577 ClipU-nut Left |
0423-577 |
US $2.90 |
||
|
3
|
3
0423-609 ScrewGas tank mount Left |
0423-609 |
US $5.36 |
||
|
4
|
4
0470-945 Grommet, air intake ductLeft |
0470-945 |
US $7.30 |
||
|
5
|
5
0413-295 Duct,front-clutch ventLeft |
0413-295 |
US $65.60 |
||
|
6
|
6
0423-057 ClampLeft |
0423-057 |
US $5.89 |
||
|
7
|
7
0413-294 Boot,front-clutch ventLeft |
0413-294 |
US $23.76 |
||
|
8
|
8
8476-625 ScrewCap Left |
8476-625 |
US $12 |
||
|
9
|
9
0423-669 SpacerLeft |
0423-669 |
US $7.24 |
||
|
10
|
10
0423-465 GrommetLeft |
0423-465 |
US $32.88 |
||
|
11
|
11
0513-047 Duct,rear-clutch vent assy(inc. 12) |
0513-047 |
US $64.59 |
||
|
12
|
12
0413-307 Tape,heat-clutch duct(inc. 12) |
0413-307 |
US $2.93 |
||
|
13
|
13
2416-818 Mount, clutch duct(inc. 12) |
2416-818 |
US $11.47 |
||
|
14
|
14
0413-296 Boot,rear-clutch vent(inc. 12) |
0413-296 |
US $32.27 |
