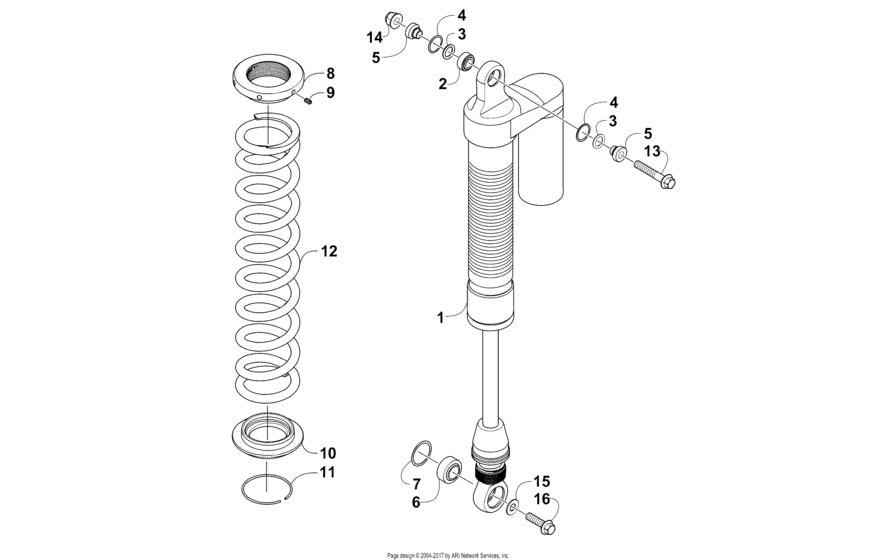

Rear Suspension Shock Assembly (300786) Diagram Arctic Cat WILDCAT Wildcat 4X
- Model code
- U2015WFW1PUSW
- Engine Capacity
- 1000
- Year
- 2015
- Commercial Name
- Wildcat 4X
- Colour
- White
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0404-490 SHOCK,REAR (JRI)Assembly - Left | (inc. 38-39 and 43-46) |
0404-490 |
US $759.65 |
||
|
2
|
2
0403-506 BEARING,SPHERICAL-0.5" BOREAssembly - Left | (inc. 38-39 and 43-46) |
0403-506 |
US $108.03 |
||
|
3
|
3
0403-507 CLIP,SPIRAL RETAINING-0.5" BOREAssembly - Left | (inc. 38-39 and 43-46) |
0403-507 |
US $4.90 |
||
|
4
|
4
0403-504 O-RING,SHOCK SPACERAssembly - Left | (inc. 38-39 and 43-46) |
0403-504 |
US $14.08 |
||
|
5
|
5
0404-513 SPACER,REAR SHOCK MOUNTAssembly - Left | (inc. 38-39 and 43-46) |
0404-513 |
US $75.68 |
||
|
6
|
6
0404-515 BEARING,SPHERICAL-0.75" BOREAssembly - Left | (inc. 38-39 and 43-46) |
0404-515 |
US $94.90 |
||
|
7
|
7
0404-514 CLIP,SPIRAL RETAINING-0.75" BOREAssembly - Left | (inc. 38-39 and 43-46) |
0404-514 |
US $5.28 |
||
|
8
|
8
0404-510 NUT,SPRING RETAINER-3.0"Assembly - Left | (inc. 38-39 and 43-46) |
0404-510 |
US $12.62 |
||
|
9
|
9
0403-501 SCREW,SET-SPRING RETAINERAssembly - Left | (inc. 38-39 and 43-46) |
0403-501 |
US $11.19 |
||
|
10
|
10
0404-511 RETAINER,LOWER SPRING-3.0"Lower Spring |
0404-511 |
US $15.82 |
||
|
11
|
11
0403-503 CLIP,RETAINING-2.5"Lower Spring |
0403-503 |
US $9.09 |
||
|
12
|
12
0504-995
SPRING,REAR MAIN-PTD WHT
White |
0504-995 |
— | ||
|
13
|
13
8409-060 ScrewCap White |
8409-060 |
US $4.98 |
||
|
14
|
14
8428-002 NutLock White |
8428-002 |
US $27.20 |
||
|
15
|
15
0623-664 WasherWhite |
0623-664 |
US $8.10 |
||
|
16
|
16
8409-030 ScrewCap White |
8409-030 |
US $16.65 |
