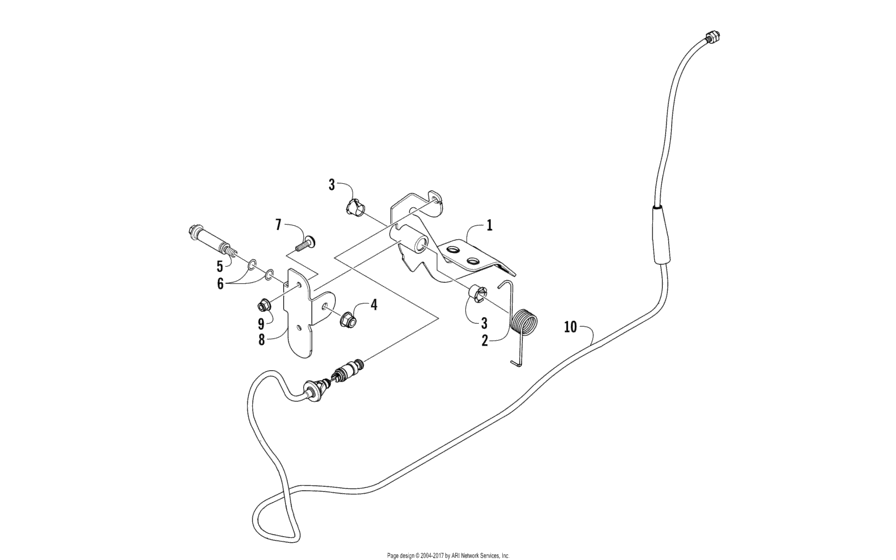

Accelerator Assembly (300017) Diagram Arctic Cat WILDCAT Wildcat Trail
- Model code
- U2014W5T2PUSZ
- Engine Capacity
- 1000
- Year
- 2014
- Commercial Name
- Wildcat Trail
- Colour
- Lime Green
- Model
- Wildcat Trail
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2502-068 PEDAL,ACCELERATOR-MACH (BLACK)11.5 in. |
2502-068 |
US $227.25 |
||
|
2
|
2
0405-233 Spring11.5 in. |
0405-233 |
US $9.54 |
||
| replacement | |||||
|
2
|
2
0470-851 Spring11.5 in. |
0470-851 |
US $31.26 |
||
|
3
|
3
2402-213 BUSHING (.5 ID X .594 OD X .25 L)11.5 in. |
2402-213 |
US $6.04 |
||
|
4
|
4
8427-802 NUT,HEX FLG-NYL LOCK M8X1.25Lock 11.5 in. |
8427-802 |
US $0.72 |
||
|
5
|
5
1423-272 SCREW,SHOULDER-M8-1.25X45 (W/ GROOVES)11.5 in. |
1423-272 |
US $20.59 |
||
|
6
|
6
1423-273 O-RING, .364 ID X .070 W (2-012)11.5 in. |
1423-273 |
US $2.68 |
||
|
7
|
7
8477-616 ScrewMachine 11.5 in. |
8477-616 |
US $4.40 |
||
|
8
|
8
2502-069 BRACKET,ACCELERATOR MOUNT-PTD BLACK11.5 in. |
2502-069 |
US $12.62 |
||
|
9
|
9
8427-602 Nut11.5 in. |
8427-602 |
US $1.45 |
||
|
10
|
10
0487-088 CABLE,THROTTLE-HD DAMPER (P145)11.5 in. |
0487-088 |
US $58.53 |
||
