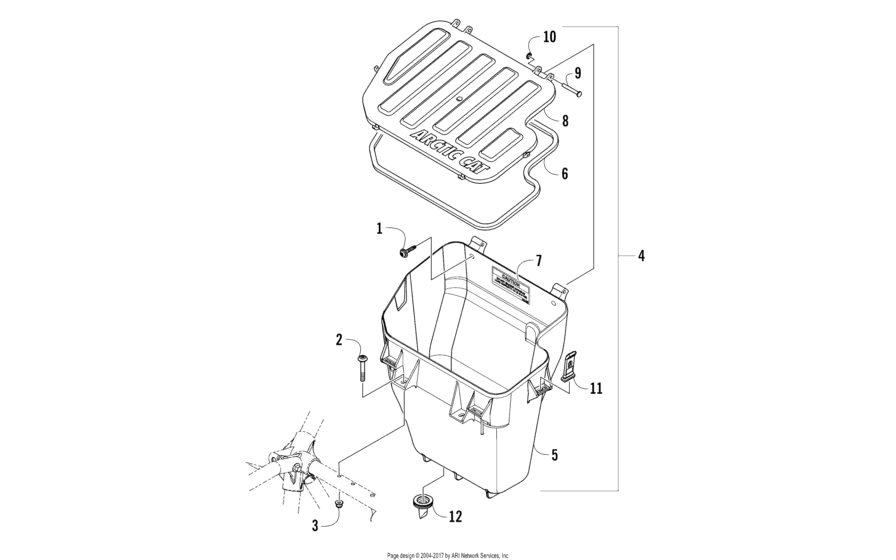

Front Storage Box (301789) Diagram Arctic Cat WILDCAT Wildcat Trail Special Edition
- Model code
- U2017WYT2POSP
- Engine Capacity
- 1000
- Year
- 2017
- Commercial Name
- Wildcat Trail Special Edition
- Colour
- Black
- Model
- Wildcat Trail
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1423-281 SCREW,BODY M6X1.0X25 W LEAD-IN BLACK8 in. |
1423-281 |
US $8.52 |
||
|
2
|
2
8476-640 ScrewCap 8 in. |
8476-640 |
US $73.20 |
||
|
3
|
3
8427-603 Nut, Lock8 in. |
8427-603 |
US $4.30 |
||
|
4
|
4
5506-626 BOX,STORAGE-ASSY(inc. 5-12) |
5506-626 |
US $109.04 |
||
|
5
|
5
4406-540 BOX,STORAGE(inc. 5-12) |
4406-540 |
US $377.78 |
||
|
6
|
6
0470-995 GASKET,AIR CLEANER(inc. 5-12) |
0470-995 |
US $22.19 |
||
|
7
|
7
4411-573 DECAL,CAUTION LOAD CAPACITY (15LB)(inc. 5-12) |
4411-573 |
US $9.58 |
||
|
8
|
8
4406-619 COVER,STORAGE BOX(inc. 5-12) |
4406-619 |
US $31.26 |
||
|
9
|
9
0623-772 Rivet(inc. 5-12) |
0623-772 |
US $6.70 |
||
|
10
|
10
2623-001 Ushnut - 3/16" stud(inc. 5-12) |
2623-001 |
US $2.36 |
||
|
11
|
11
1406-134 StrapHatch (inc. 5-12) |
1406-134 |
US $32.50 |
||
|
12
|
12
0470-442 ValveAir intake (inc. 5-12) |
0470-442 |
US $14.38 |
