Cargo Box And Taillight Assembly (302236)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 5506-530 HEADREST-TEAMARCTIC GREEN Green	5506-530	US $359.58
2	2 0423-609 Screw Gas tank mount Green	0423-609	US $5.36
3	3 2416-825 Panel,access-radiator blk Green	2416-825	US $22.67
4	4 0423-535 Rivet Reinstallable Green	0423-535	US $9.05
5	5 7506-696 Box, Cargo - W/decals w/Decals \| (inc. 6-8)	7506-696	US $291.90
6	6 0412-892 SHIELD,BOX-BOTTOM Bottom	0412-892	US $11.25
	replacement
6	6 1412-121 Shield,box-Bottom Bottom	1412-121	US $12.62
7	7 2411-974 Reflector,rear (wc) Red	2411-974	US $12.62
8	8 5411-504 Decal, Warning - Cargo Box Cargo Box	5411-504	US $11.25
9	9 1423-109 Screw,self tap-tstrh m5x0.8x16mm Cargo Box	1423-109	US $15.12
10	10 0423-577 Clip U-nut Cargo Box	0423-577	US $2.90
11	11 4406-264 FASCIA,REAR Cargo Box	4406-264	US $58.53
12	12 2411-944 Decal,rear-flag Cargo Box	2411-944	US $27.22
13	13 0509-074 TAILLIGHT,LED-RH-ASSY (WC50) Right	0509-074	US $98.94
13	13 0509-075 TAILLIGHT,LED-LH-ASSY (WC50) Left	0509-075	US $98.94
14	14 8427-602 Nut Left	8427-602	US $1.45
15	15 0623-784 Screw Left	0623-784	—
	replacement
15	15 2623-163 Screw, Self-Tapping Left	2623-163	US $9.05
16	16 5506-562 FENDER,REAR-RH-TEAM ARCTIC GREEN Right - Green	5506-562	US $150.09
16	16 5506-563 FENDER,REAR-LH-TEAM ARCTIC GREEN Left - Green	5506-563	US $170.67
17	17 0623-797 Screw Self-tapping Left - Green	0623-797	US $8.32
	replacement
17	17 2623-164 Screw, Self-Tapping Left - Green	2623-164	US $7.60
18	18 0623-362 Rivet Plastic Left - Green	0623-362	US $4.40
19	19 5411-089 DECAL,REAR FENDER (WC TRL XT TAG) Rear - Green	5411-089	US $4.70

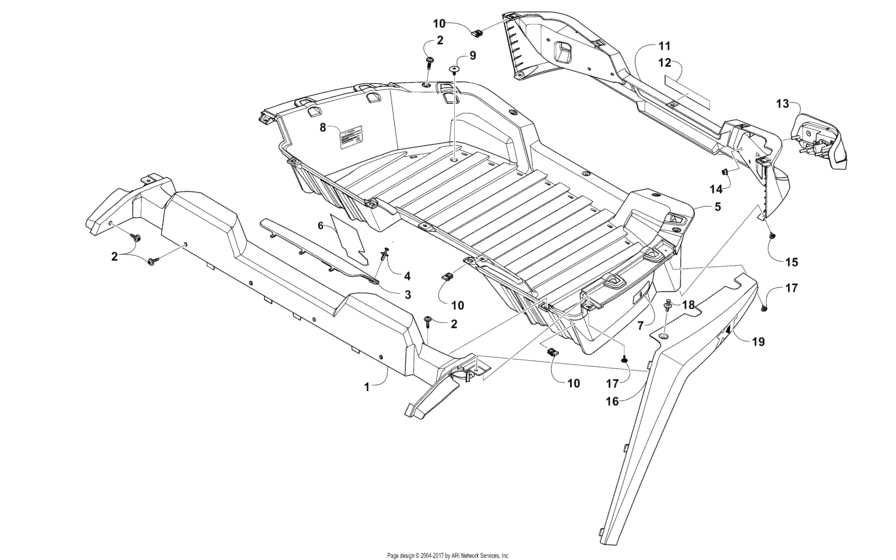

Cargo Box And Taillight Assembly (302236) Diagram Arctic Cat WILDCAT Green 16820617-861961
