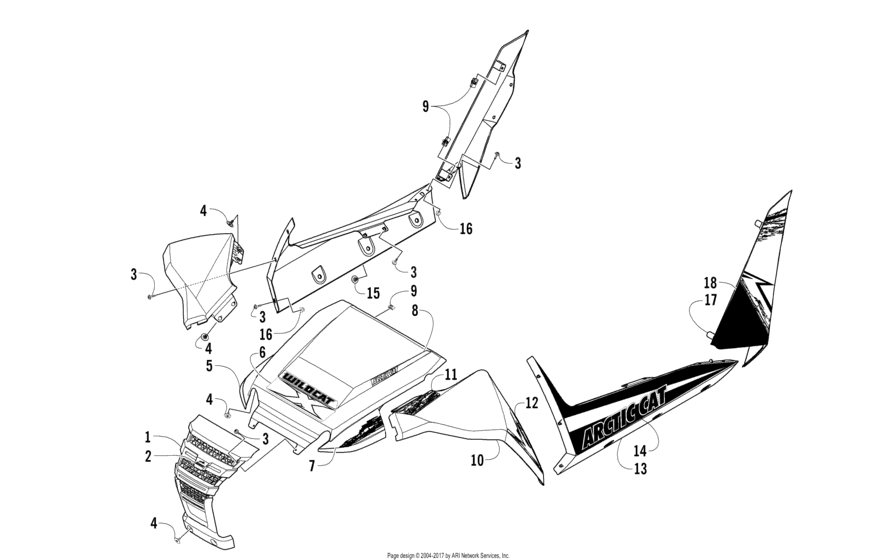

Front And Side Panel Assemblies (98624) Diagram Arctic Cat WILDCAT Wildcat X
- Model code
- U2013WSW1PUSE
- Engine Capacity
- 1000
- Year
- 2013
- Commercial Name
- Wildcat X
- Colour
- Red
- Model
- Wildcat X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2416-685 Grille,frontBlack |
2416-685 |
US $44.38 |
||
|
2
|
2
2411-943 Decal,grill-frontBlack |
2411-943 |
US $17.42 |
||
|
3
|
3
0423-609 ScrewGas tank mount Black |
0423-609 |
US $5.36 |
||
|
4
|
4
0423-101 ScrewBody Black |
0423-101 |
US $14.40 |
||
|
5
|
5
4506-772 Hood,m.black-ptdBlack |
4506-772 |
US $330.24 |
||
|
6
|
6
3411-347 Decal,crest-vrBlack |
3411-347 |
US $20.59 |
||
|
7
|
7
3411-348 Decal,headlight-rh-vrRight |
3411-348 |
US $12.64 |
||
|
7
|
7
3411-349 Decal,headlight-lh-vrLeft |
3411-349 |
US $12.64 |
||
|
8
|
8
3411-350 Decal,hood-rh-vrRight |
3411-350 |
US $5.07 |
||
|
8
|
8
3411-351 Decal,hood-lh-vrLeft |
3411-351 |
US $5.07 |
||
|
9
|
9
0423-577 ClipU-nut Left |
0423-577 |
US $2.90 |
||
|
10
|
10
4506-756 Panel,fender-frt-rh m.black-ptdRight - Black |
4506-756 |
US $220.18 |
||
|
10
|
10
4506-757 Panel,fender-frt-lh m.black-ptdLeft - Black |
4506-757 |
US $241.39 |
||
|
11
|
11
3411-364 Decal,fender-front upr-rh-vrUpper Right Red |
3411-364 |
US $33.82 |
||
|
11
|
11
3411-365 Decal,fender-front upr-lh-vrUpper Left Red |
3411-365 |
US $33.69 |
||
|
12
|
12
3411-366 Decal,fender-front lwr-rh-vrLower Right Red |
3411-366 |
US $150.76 |
||
|
12
|
12
3411-367 Decal,fender-front lwr-lh-vrLower Left Red |
3411-367 |
US $150.76 |
||
|
13
|
13
2416-988 Panel,side-lwr-rh-blkLower Front - Right - Black |
2416-988 |
US $158.54 |
||
|
13
|
13
2416-989 Panel,side-lwr-lh-blkLower Front - Left - Black |
2416-989 |
US $158.54 |
||
|
14
|
14
3411-352 Decal,side-lower-rh-vrRight |
3411-352 |
US $59.55 |
||
|
14
|
14
3411-353 Decal,side-lower-lh-vrLeft |
3411-353 |
US $59.55 |
||
|
15
|
15
1423-133 Screw,shoulder 11 x 3.5 x 6mmLeft |
1423-133 |
US $18.68 |
||
|
16
|
16
8427-602 NutLeft |
8427-602 |
US $1.45 |
||
|
17
|
17
2416-990 Panel,side-upr-rh-blkUpper Rear - Right - Black |
2416-990 |
US $39.34 |
||
|
17
|
17
2416-991 Panel,side-upr-lh-blkUpper Rear - Left - Black |
2416-991 |
US $39.34 |
||
|
18
|
18
3411-358 Decal,side-rear-rh-vrRight |
3411-358 |
US $49.44 |
||
|
18
|
18
3411-359 Decal,side-rear-lh-vrLeft |
3411-359 |
US $49.44 |
