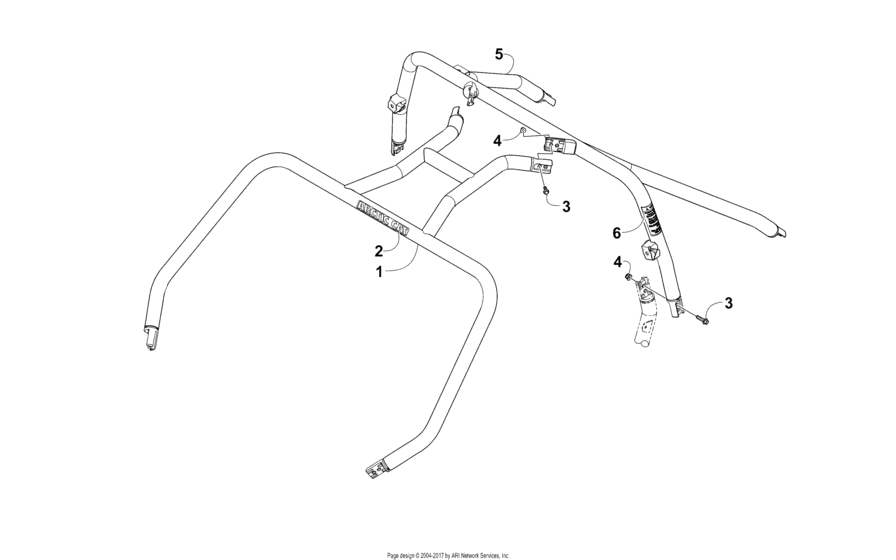

Rops Assembly (300136) Diagram Arctic Cat WILDCAT Wildcat X
- Model code
- U2015WSW1PUSW
- Engine Capacity
- 1000
- Year
- 2015
- Commercial Name
- Wildcat X
- Colour
- White
- Model
- Wildcat X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5506-113 Rops, front - 10mm - ptd blkAssembly |
5506-113 |
US $298.98 |
||
| replacement | |||||
|
1
|
1
8506-091 Rops,front-Ptd Blk-Wc X (10Mm)Assembly |
8506-091 |
US $338.37 |
||
|
2
|
2
0411-501 Decal"arctic cat" Assembly |
0411-501 |
US $10.48 |
||
|
3
|
3
1423-140 Screw,cap-hsh m10 x 1.25 x 35Assembly |
1423-140 |
US $9.60 |
||
|
4
|
4
1423-161 Nut,hex lock-nsl m10x1.25 gr 8 din 985Assembly |
1423-161 |
US $3.52 |
||
|
5
|
5
5506-907 ROPS,REAR W/ WARNING DECAL (2015 WC)Rear Assembly |
5506-907 |
US $492.54 |
||
| replacement | |||||
|
5
|
5
8506-088 Rops,rear-W/warning Decal (Wc X Blk)Rear Assembly |
8506-088 |
US $554.56 |
||
|
6
|
6
3411-970 DECAL,WARNING-ROPSROPS |
3411-970 |
US $9.30 |
||
