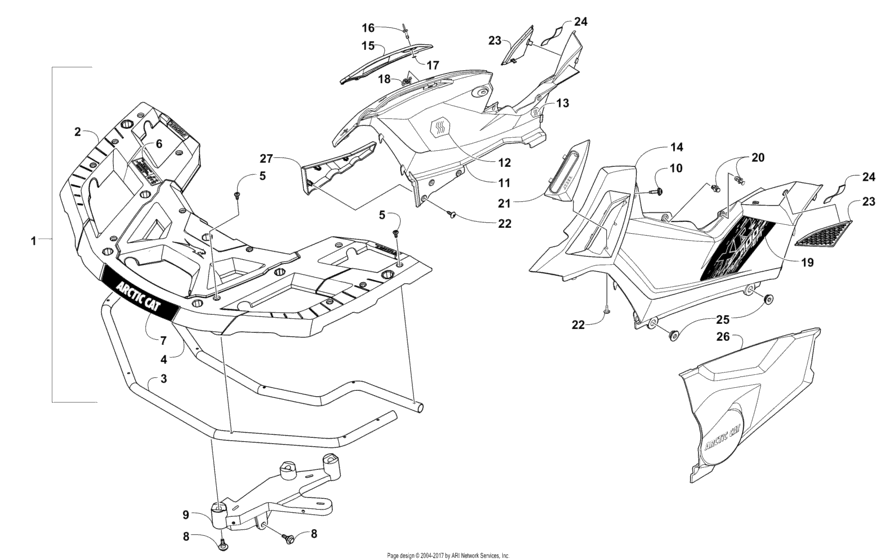

Front Rack And Side Panel Assemblies (300288) Diagram Arctic Cat XR 700 XR 700
- Model code
- A2015XAT4EOSG
- Engine Capacity
- 700
- Year
- 2015
- Commercial Name
- XR 700
- Colour
- Green
- Model
- XR 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5506-840 RACK-MOLDED-FRONT-ASSYAssembly | (inc. 2-6) |
5506-840 |
US $359.58 |
||
|
2
|
2
5506-672 RACK,W/OVERMOLDAssembly | (inc. 2-6) |
5506-672 |
US $233.31 |
||
|
3
|
3
5506-671 TUBE,RACK-OUTER PERIMETER-PTD BLKOuter - Black |
5506-671 |
US $65.60 |
||
|
4
|
4
5506-592 TUBE,RACK-INNER PERIMETER-PTD BLKInner - Black |
5506-592 |
US $104 |
||
|
5
|
5
1423-301 SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/Inner - Black |
1423-301 |
US $8.04 |
||
|
6
|
6
4411-678 DECAL,WARNING-FRONT RACKEnglish |
4411-678 |
US $8.61 |
||
|
7
|
7
4411-879 DECAL,ARCTIC CAT-RACKEnglish |
4411-879 |
US $17.25 |
||
|
8
|
8
1423-280 SCREW,SHOULDER-M8 X 12.7D X 12LEnglish |
1423-280 |
US $4.44 |
||
|
9
|
9
4406-626 MOUNT,RACK FRONT-RHRight |
4406-626 |
US $65.60 |
||
|
9
|
9
4406-627 MOUNT,RACK FRONT-LHLeft |
4406-627 |
US $65.60 |
||
|
10
|
10
0423-609 ScrewGas tank mount Left |
0423-609 |
US $5.36 |
||
|
11
|
11
7506-020 PANEL,SIDE-RH-MARSH-HDPE-ASSYUpper - Right - Green | (inc. 12-13) |
7506-020 |
US $147.44 |
||
|
12
|
12
0412-838 SHIELD,RH PANELUpper - Right - Green | (inc. 12-13) |
0412-838 |
US $47.30 |
||
| replacement | |||||
|
12
|
12
1412-108 Shield,rh PanelUpper - Right - Green | (inc. 12-13) |
1412-108 |
US $42.37 |
||
|
13
|
13
0412-852 SHIELD,RH PANELUpper - Right - Green | (inc. 12-13) |
0412-852 |
US $36.08 |
||
| replacement | |||||
|
13
|
13
1412-114 Shield,rh PanelUpper - Right - Green | (inc. 12-13) |
1412-114 |
US $23.76 |
||
|
14
|
14
4406-763 PANEL,SIDE-LH-MARSH-HDPEUpper - Left - Green |
4406-763 |
US $104 |
||
|
15
|
15
4406-773 PANEL,PDM ACCESS-MARSH-HDPEGreen |
4406-773 |
US $18.32 |
||
|
16
|
16
2623-003 Stud,1/4 turn-16mmGreen |
2623-003 |
US $10.85 |
||
|
17
|
17
2623-004 Nut, PushGreen |
2623-004 |
US $5.89 |
||
|
18
|
18
2623-005 Clip,receptacle-1/4 turn studGreen |
2623-005 |
US $3.63 |
||
|
19
|
19
4411-660 DECAL,SIDE 700 EFI-MARSH-RHRight |
4411-660 |
US $33.82 |
||
|
19
|
19
4411-661 DECAL,SIDE 700 EFI-MARSH-LHLeft |
4411-661 |
US $42.42 |
||
|
20
|
20
1423-276
RIVET,PLASTIC-REINSTALLABLE
Left |
1423-276 |
— | ||
|
21
|
21
2402-218 GATE,SHIFT-AUTO-W/PARKLeft |
2402-218 |
US $9.15 |
||
|
22
|
22
1423-284 SCREW,SELF TAPPING-HIGH/LOWLeft |
1423-284 |
US $10.65 |
||
|
23
|
23
4406-710 VENT,PLASTIC-RHRight |
4406-710 |
US $5.87 |
||
|
23
|
23
4406-711 VENT,PLASTIC-LHLeft |
4406-711 |
US $5.87 |
||
|
24
|
24
0617-556 TAPE,FOAM-DOUBLE SIDED PSA-CTL-25.4Double Sided |
0617-556 |
US $1.50 |
||
|
25
|
25
0423-678 GrommetDouble Sided |
0423-678 |
US $14.40 |
||
|
26
|
26
4406-579 PANEL,ENGINE COVER-LHLeft |
4406-579 |
US $27.22 |
||
|
27
|
27
4406-578 PANEL,ENGINE COVER-RH (550/700)Right |
4406-578 |
US $17.42 |
||
