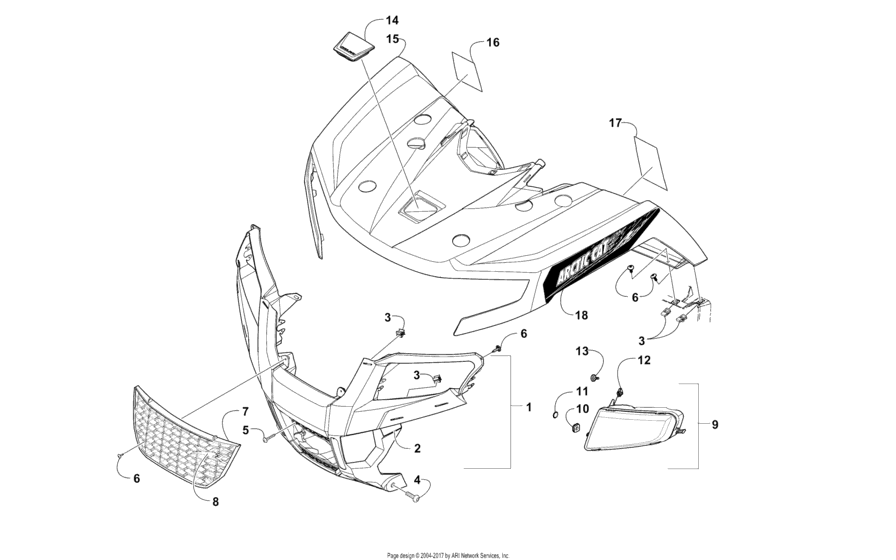

Front Body Panel And Headlight Assemblies (300811) Diagram Arctic Cat XR 700 XR 700 Limited
- Model code
- A2015XDT1PUSO
- Engine Capacity
- 700
- Year
- 2015
- Commercial Name
- XR 700 Limited
- Colour
- Black
- Model
- XR 700 Limited
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5506-753 FASCIA,FRONT-W/REFLECTORSw/Reflectors | (inc. 2) |
5506-753 |
US $170.67 |
||
|
2
|
2
4411-168 REFLECTOR,FRONT-RHRight - Amber |
4411-168 |
US $8.42 |
||
|
2
|
2
4411-169 REFLECTOR,FRONT-LHLeft - Amber |
4411-169 |
US $8.42 |
||
|
3
|
3
1423-321 CLIP,RETAININGLeft - Amber |
1423-321 |
US $7.40 |
||
|
4
|
4
8409-020 ScrewCap Left - Amber |
8409-020 |
US $7.44 |
||
|
5
|
5
0423-609 ScrewGas tank mount Left - Amber |
0423-609 |
US $5.36 |
||
|
6
|
6
1423-284 SCREW,SELF TAPPING-HIGH/LOWLeft - Amber |
1423-284 |
US $10.65 |
||
|
7
|
7
4406-990 GRILL,FRONT-151 ATV (13.5 mm TABS)Left - Amber |
4406-990 |
US $21.60 |
||
|
8
|
8
4411-479 EMBLEM,AIRCATLeft - Amber |
4411-479 |
US $9.90 |
||
|
9
|
9
0509-104 HEADLIGHT,LED-RH (XR LTD)Assembly - Right |
0509-104 |
US $772.78 |
||
|
9
|
9
0509-105 HEADLIGHT,LED-LH (XR LTD)Assembly - Left |
0509-105 |
US $772.78 |
||
|
10
|
10
4406-722 GROMMET-RHRight |
4406-722 |
US $3.92 |
||
|
10
|
10
4406-723 GROMMET-LHLeft |
4406-723 |
US $3.92 |
||
|
11
|
11
1423-326 O-RING,D:.116 ID: .924-EPDM (3-912)Left |
1423-326 |
US $14.16 |
||
|
12
|
12
1623-637 ClipU-nut Left |
1623-637 |
US $13 |
||
|
13
|
13
2623-113 SCREW,1" RND KNOB-M5X0.8X15MM LGLeft |
2623-113 |
US $19.92 |
||
|
14
|
14
4406-784 PLUG,ACCESS COOLINGLeft |
4406-784 |
US $9.15 |
||
|
15
|
15
7506-142 FENDER,FRONT-GLOSS BLACK-ASSYAssembly - Black | (inc. 16-17) |
7506-142 |
US $806.45 |
||
|
16
|
16
4411-672 DECAL,WARNING-FRONT FENDER-RHFront Fender |
4411-672 |
US $16.87 |
||
| replacement | |||||
|
16
|
16
6411-422 Decal,warning-Front Fender-RhFront Fender |
6411-422 |
US $18.99 |
||
|
17
|
17
4411-673 DECAL,WARNING-FRONT FENDER-LHFront Fender |
4411-673 |
US $9.44 |
||
|
18
|
18
4411-898 DECAL,FRONT FENDER-ARCTIC CAT-RHRight |
4411-898 |
US $29.23 |
||
|
18
|
18
4411-899 DECAL,FRONT FENDER-ARCTIC CAT-LHLeft |
4411-899 |
US $29.23 |
||
