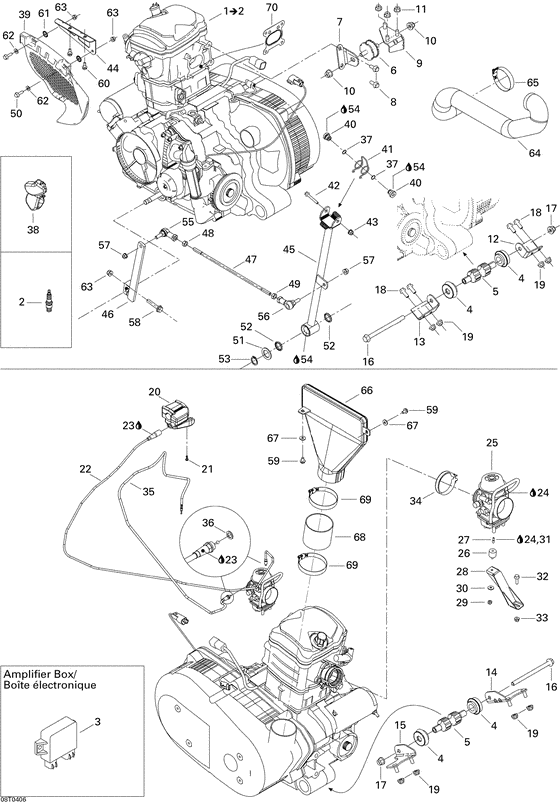

01- engine support Diagram Bombardier Quest
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
707000344
Moteur 4 temps *engine-4 stroke
Includes Items 1 to 2; |
707000344 |
— | ||
|
2
|
2
707000246
Bougie dcp-r8e *plug-spark dcp-r8e
|
707000246 |
— | ||
| replacement | |||||
|
2
|
2
715900637 Spark Plug |
715900637 |
US $32.84 |
||
|
3
|
3
420265820
Boite electron.*box-amplifier
|
420265820 |
— | ||
|
4
|
4
707000094
Tampon an.vibr.*mount-a.vibra.
|
707000094 |
— | ||
|
5
|
5
707000019
Douille support*bushing support
|
707000019 |
— | ||
|
6
|
6
707000174
Tampon *mount-rubber
|
707000174 |
— | ||
|
7
|
7
707000159 Support moteur *engine-support |
707000159 |
US $10.17 |
||
|
8
|
8
207581646 Screw-hex.flange din.6921 s.grip |
207581646 |
US $27.20 |
||
|
9
|
9
707000161
Attache moteur *engine-bracket
|
707000161 |
— | ||
|
10
|
10
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
11
|
11
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
12
|
12
707000132 Attache moteur *bracket-engine |
707000132 |
US $15.27 |
||
|
13
|
13
707000101
Attache moteur *bracket-engine
|
707000101 |
— | ||
|
14
|
14
707000207
Attache moteur *bracket-engine
|
707000207 |
— | ||
|
15
|
15
707000210
Attache moteur *bracket-engine
|
707000210 |
— | ||
|
16
|
16
230604044 Screw-hex.flange din.6921 |
230604044 |
US $34.25 |
||
|
17
|
17
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
18
|
18
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
19
|
19
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
20
|
20
707000370 Manette acc. *throttle hand. |
707000370 |
US $80.55 |
||
|
21
|
21
205052588 Screw-socket hd.din.912 |
205052588 |
US $2.45 |
||
|
22
|
22
707000311 Cable accel. *throttle cable |
707000311 |
US $81.57 |
||
|
24
|
24
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
25
|
25
707200186 Carburateur *carburator |
707200186 |
US $832.30 |
||
|
26
|
26
707000248
Tampon an.vibr.*mount-a.vibra.
|
707000248 |
— | ||
|
27
|
27
707000250 Ajout filete *threaded insert |
707000250 |
US $15.27 |
||
|
28
|
28
707000252 Support *support |
707000252 |
US $31.59 |
||
|
29
|
29
212000006 Nut-stop elastic ms-17830 |
212000006 |
US $7.25 |
||
|
30
|
30
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
31
|
31
413708300 Colle tube 20gr*glue-tube 20gr |
413708300 |
US $75.07 |
||
|
32
|
32
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
33
|
33
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
34
|
34
293650157 Bride *clamp |
293650157 |
US $8.13 |
||
|
35
|
35
707000334
Cable etrang. *cable-choke
|
707000334 |
— | ||
|
36
|
36
293300075 Joint torique *o-ring |
293300075 |
US $7.09 |
||
|
37
|
37
293300081 Joint torique *o ring |
293300081 |
US $7.09 |
||
|
38
|
38
705500282 Poignee trans. *shifter-handle |
705500282 |
US $33.61 |
||
|
39
|
39
707000139
Guide transmi. *guide-trans.
|
707000139 |
— | ||
|
40
|
40
707000205 Douille pivot *pivot-sleeve |
707000205 |
US $11.17 |
||
|
41
|
41
705500283 Ressort levier *lever spring |
705500283 |
US $14.25 |
||
|
42
|
42
207665044 Screw-hex.flange din.6921 |
207665044 |
US $15.96 |
||
|
43
|
43
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
44
|
44
707000297
Support guide *guide support
|
707000297 |
— | ||
|
45
|
45
707000335 Bras inferi. *lever-lower |
707000335 |
US $53.01 |
||
|
46
|
46
707000338
Bras inferi. *lever-lower
|
707000338 |
— | ||
|
47
|
47
707000343 Tige filetee *threaded rod |
707000343 |
US $13.21 |
||
|
48
|
48
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
49
|
49
232066414 Nut-hex.lh.thread din.934 l |
232066414 |
US $7.25 |
||
|
50
|
50
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
51
|
51
503107800 Rondelle *washer |
503107800 |
US $13.50 |
||
|
52
|
52
293300053 Joint torique *o-ring |
293300053 |
US $70.90 |
||
|
53
|
53
293370012 Circlip *circlip |
293370012 |
US $101.25 |
||
|
54
|
54
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
55
|
55
707000142 Joint rotule dr*joint-ball rh |
707000142 |
US $45.85 |
||
|
56
|
56
707000143
Joint rotule ga*joint-ball lh
|
707000143 |
— | ||
| replacement | |||||
|
56
|
56
707000545
JOINT ROTULE: BALL JOINT LH
|
707000545 |
— | ||
|
57
|
57
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
58
|
58
207663044
Screw-hex.flange din.6921
|
207663044 |
— | ||
|
59
|
59
210261080 Screw-forming hex.hd.fl.din.7500d |
210261080 |
US $16.30 |
||
|
60
|
60
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
61
|
61
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
62
|
62
391302000
Washer-flat yic
|
391302000 |
— | ||
|
63
|
63
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
64
|
64
707000332 Entree d air *intake-air |
707000332 |
US $134.61 |
||
|
65
|
65
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
66
|
66
707000153
Sortie d air *exhaust
|
707000153 |
— | ||
|
67
|
67
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
68
|
68
707000154
Adap.flexible *adap-flex.
|
707000154 |
— | ||
|
69
|
69
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
70
|
70
420950680
Anneau etanche *gasket
|
420950680 |
— | ||
