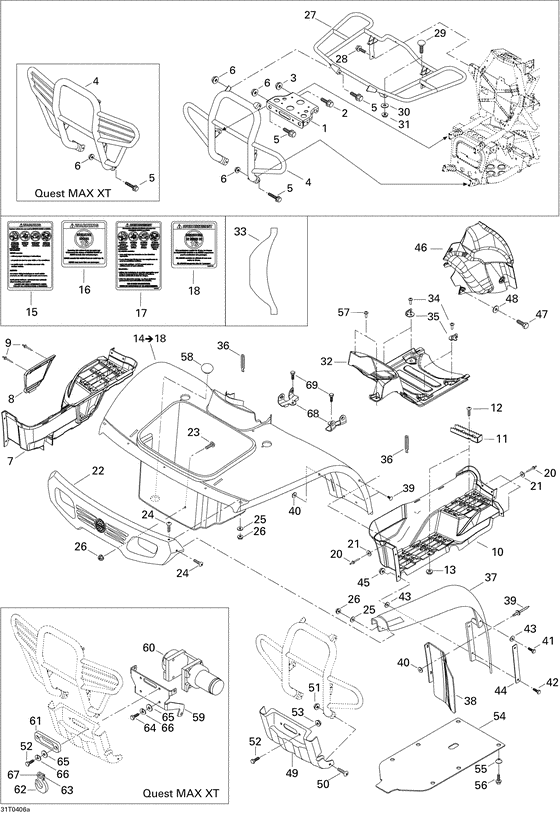

09- body and accessories, front view Diagram Bombardier Quest
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
705200196 Attache treuil *latch winch |
705200196 |
US $30.41 |
||
|
2
|
2
207682544 Screw-hex.flange din.6921 |
207682544 |
US $16.30 |
||
|
3
|
3
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
4
|
4
705000585
Pare-chocs *front bumper
XT; |
705000585 |
— | ||
|
4
|
4
705000591
Pare-chocs *front bumper
STD; |
705000591 |
— | ||
|
5
|
5
207682544 Screw-hex.flange din.6921 |
207682544 |
US $16.30 |
||
|
6
|
6
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
7
|
7
705000931
Marchepied dr. *rh.footboard
|
705000931 |
— | ||
|
8
|
8
705001120
Panneau d acc+s*acces panel
|
705001120 |
— | ||
|
9
|
9
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
9
|
9
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
10
|
10
705000932
Marchepied ga. *lh.footboard
|
705000932 |
— | ||
|
11
|
11
705001083
Repose-pied *footrest
|
705001083 |
— | ||
|
12
|
12
207662584 Screw-hex.flange din.6921 |
207662584 |
US $7.25 |
||
|
13
|
13
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
14
|
14
703500402
Ens. aile avan*viper red fr. fender kit
includes Items 14 to 18; |
703500402 |
— | ||
|
15
|
15
704900451
Etiquete avert *warning label
|
704900451 |
— | ||
|
16
|
16
704900515
Etiquette avert*warning label
|
704900515 |
— | ||
|
17
|
17
704900435
Etiquete avert *warning label
|
704900435 |
— | ||
|
18
|
18
704900436 Etiquette avert*warning label |
704900436 |
US $0.02 |
||
|
20
|
20
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
20
|
20
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
22
|
22
705000708
Facia avant *front facia
|
705000708 |
— | ||
|
23
|
23
211000123
Phil-truss m/s gm6047m
|
211000123 |
— | ||
|
24
|
24
211000123
Phil-truss m/s gm6047m
|
211000123 |
— | ||
|
25
|
25
224060201 Flat washer |
224060201 |
US $17.20 |
||
|
26
|
26
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
27
|
27
703500264
Ens. porte bag*front luggage rack kit
|
703500264 |
— | ||
| replacement | |||||
|
27
|
27
703500452
Ens. porte bag*front luggage rack kit
|
703500452 |
— | ||
|
28
|
28
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
29
|
29
250000035 Phil-truss m/s m6 x 25 |
250000035 |
US $19.60 |
||
|
30
|
30
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
31
|
31
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
32
|
32
705001052
Console *console
|
705001052 |
— | ||
|
33
|
33
705000541
Feuille reflect*reflect.sheet
|
705000541 |
— | ||
|
34
|
34
211000123
Phil-truss m/s gm6047m
|
211000123 |
— | ||
|
35
|
35
705000369 Crochet *hook |
705000369 |
US $10.47 |
||
|
36
|
36
570023800 Loquet pare-bri*latch-windshield |
570023800 |
from US $6.09 |
||
|
37
|
37
705000711
Garde-boue *mudguard
|
705000711 |
— | ||
|
37
|
37
705000712
Garde-boue *mudguard
|
705000712 |
— | ||
|
38
|
38
705000755
Extension *extension
|
705000755 |
— | ||
|
39
|
39
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
39
|
39
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
40
|
40
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
41
|
41
207162044 Screw-hex.cap din.933 |
207162044 |
US $9.90 |
||
|
42
|
42
207162544 Screw-hex.cap din.933 |
207162544 |
US $14.60 |
||
|
43
|
43
224060201 Flat washer |
224060201 |
US $17.20 |
||
|
44
|
44
705000754 Plaque *plate |
705000754 |
US $10.47 |
||
|
45
|
45
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
46
|
46
705000133 Protecteur ga. *protector-lh. |
705000133 |
US $28.51 |
||
|
46
|
46
705000134
Protecteur dr. *protector-rh.
|
705000134 |
— | ||
|
47
|
47
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
48
|
48
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
49
|
49
705000713
Plaque protect.*protector plate
|
705000713 |
— | ||
|
50
|
50
211000123
Phil-truss m/s gm6047m
|
211000123 |
— | ||
|
51
|
51
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
52
|
52
207602544 Screw-hex.flange din.6921STD; |
207602544 |
US $21.90 |
||
|
52
|
52
250000042
Screw-socket 5/16-18 x 1 1/2" yic
XT; |
250000042 |
— | ||
|
53
|
53
233201414 Nut-flange elastic din.6926STD; |
233201414 |
US $20.10 |
||
|
54
|
54
705000949
Plaque moteur *skid plate
|
705000949 |
— | ||
|
55
|
55
705200533 Coupole *cup |
705200533 |
US $62.60 |
||
|
56
|
56
207581646 Screw-hex.flange din.6921 s.grip |
207581646 |
US $27.20 |
||
|
57
|
57
414745900 Screw-tuflock phillips |
414745900 |
US $21.80 |
||
|
58
|
58
570041600
Couvercle caout*cover-rubber
|
570041600 |
— | ||
|
59
|
59
705000994
Plaque montage *mounting plate
XT; |
705000994 |
— | ||
|
60
|
60
705000839
Treuil *winch
XT; |
705000839 |
— | ||
|
61
|
61
705000194 Guide de cable *cable guideXT; |
705000194 |
US $31.59 |
||
|
62
|
62
705000618
Crochet *hook
XT; |
705000618 |
— | ||
|
63
|
63
250400022 Goupille fendue*cotter pinXT; |
250400022 |
US $244.75 |
||
|
64
|
64
250000041 Screw-socket 5/16-18 x 1" yicXT; |
250000041 |
US $14.20 |
||
|
65
|
65
234081410 Washer-flat din.125aXT; |
234081410 |
US $10.70 |
||
|
66
|
66
234181401 Washer-lock din*.127bXT; |
234181401 |
US $59.50 |
||
|
67
|
67
250400021 Goupille *clevis pinXT; |
250400021 |
US $13.36 |
||
|
68
|
68
705000311
Attache *bracket
|
705000311 |
— | ||
|
69
|
69
210261080 Screw-forming hex.hd.fl.din.7500d |
210261080 |
US $16.30 |
||
