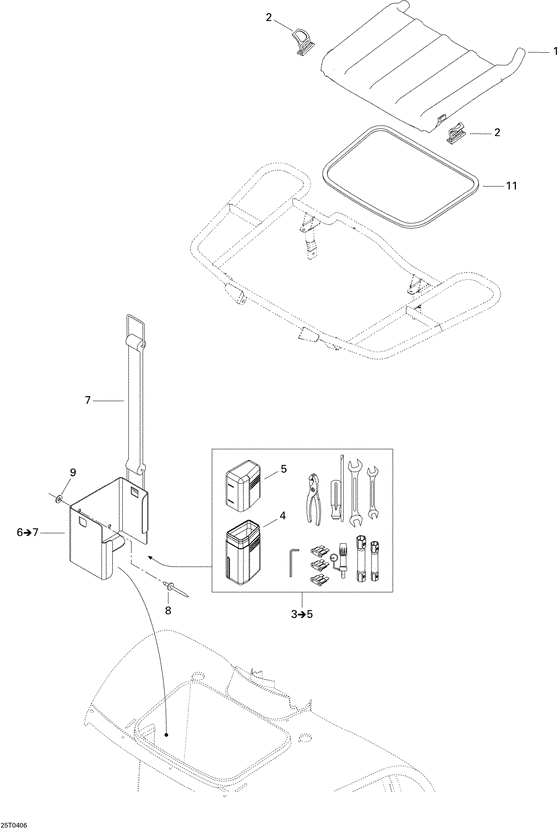

09- front storage compartment Diagram Bombardier Quest
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
708200033
Couvercle bagag*storage cover
|
708200033 |
— | ||
|
2
|
2
708200003
Loquet couv. *latch-cover
|
708200003 |
— | ||
|
3
|
3
704700084
Trousse outil *kit-tool owner
|
704700084 |
— | ||
|
4
|
4
708200041
Coffre outils *box-tool
|
708200041 |
— | ||
| replacement | |||||
|
4
|
4
A50121179000 Coffre outils *box-tool assy. |
A50121179000 |
US $19.33 |
||
|
5
|
5
572036400
Couverc.coffre *cover-box
|
572036400 |
— | ||
| replacement | |||||
|
5
|
5
572036310
Coffre outils *box-tool assy.
|
572036310 |
— | ||
|
6
|
6
708200007
Support coffre *tray-support
|
708200007 |
— | ||
|
7
|
7
293850080
Sangle retenue *strap-rubber
|
293850080 |
— | ||
| replacement | |||||
|
7
|
7
293850077
Sangle retenue *strap-rubber
|
293850077 |
— | ||
|
8
|
8
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
9
|
9
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
10
|
10
529007800
Cle amortisseur*wrench-shock
Not Shown; |
529007800 |
— | ||
|
11
|
11
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
