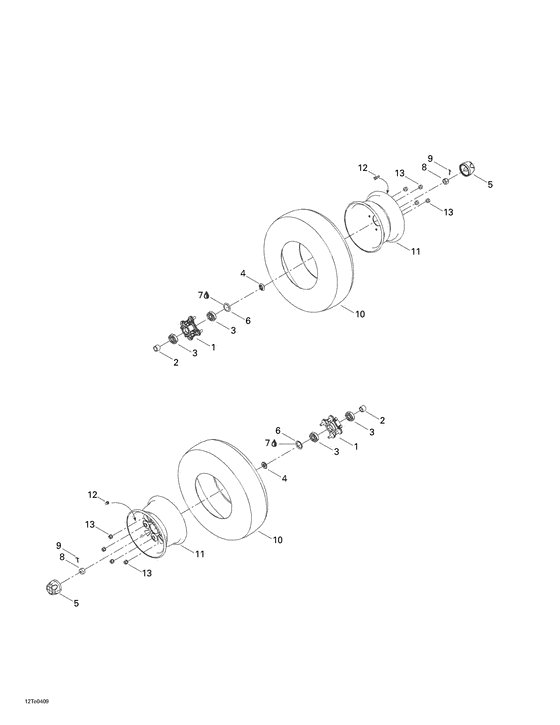

05- drive system, front Diagram Bombardier Rally
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
705400233
Moyeu de roue *wheel hub
|
705400233 |
— | ||
| replacement | |||||
|
1
|
1
A42709179000 Moyeu roue *hub-wheel |
A42709179000 |
US $122.37 |
||
|
2
|
2
705400113 Douille inter. *bushing-inside |
705400113 |
US $14.25 |
||
|
3
|
3
293350049
Roulement bille*ball bearing
|
293350049 |
— | ||
| replacement | |||||
|
3
|
3
293350036 Roulement bille*ball bearing |
293350036 |
US $19.33 |
||
|
4
|
4
705400235 Douille exter. *outer bushing |
705400235 |
US $11.17 |
||
|
5
|
5
705400012
Capuchon roue *cap-wheel
|
705400012 |
— | ||
|
6
|
6
293250094 Joint etanche *oil seal |
293250094 |
US $33.61 |
||
|
7
|
7
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
8
|
8
232591414 Nut-stop elastic din.985 |
232591414 |
US $29.35 |
||
|
9
|
9
250400016
Goupille fendue*cotter pin
|
250400016 |
— | ||
|
10
|
10
705400114
Pneu avant *front tire
|
705400114 |
— | ||
| replacement | |||||
|
10
|
10
A42711179000 Pneu avant *tire-front |
A42711179000 |
US $119.31 |
||
|
11
|
11
705400242
Jante avant *rim-front
|
705400242 |
— | ||
|
12
|
12
705400193 Soupape jante *rim valve |
705400193 |
US $8.91 |
||
|
13
|
13
250100042 Ecrou jante *wheel nut |
250100042 |
US $19.40 |
||
