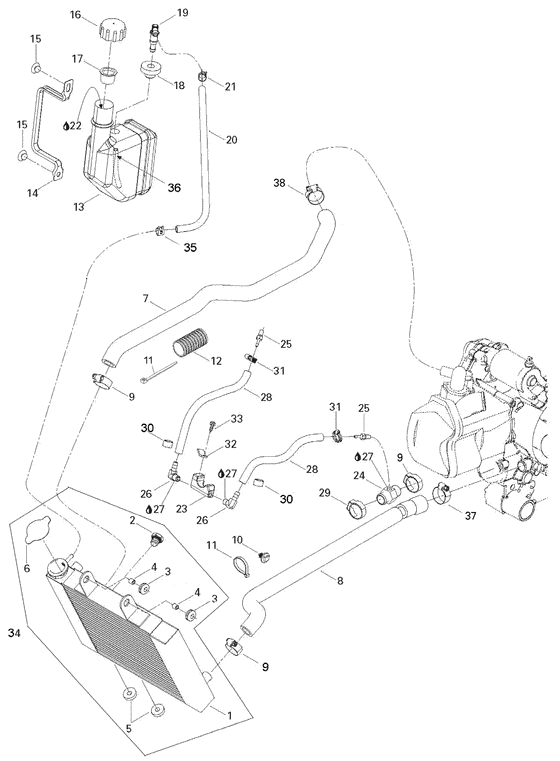

01- cooling system Diagram Bombardier Rally
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
A19100179000
Radiateur *radiator
|
A19100179000 |
— | ||
|
2
|
2
250500006 Bouchon 18mm *plug 18mm |
250500006 |
US $23.41 |
||
|
3
|
3
705000321 Washer-oblong |
705000321 |
US $14.52 |
||
|
4
|
4
293900045 Douille *bushing |
293900045 |
US $8.10 |
||
|
5
|
5
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
5
|
5
709200285
GROMMET
|
709200285 |
— | ||
|
6
|
6
A19110179000 Bouchon radiat.*cap-pressure |
A19110179000 |
US $18.33 |
||
|
7
|
7
709200066 Boyau entre rad*hose-rad.in. |
709200066 |
US $30.57 |
||
|
8
|
8
709200067 Boyau sort.rad.*hose-rad.out. |
709200067 |
US $30.57 |
||
|
9
|
9
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
10
|
10
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
11
|
11
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
12
|
12
709200031 Gaine *protector tube |
709200031 |
US $6.07 |
||
|
13
|
13
A19200179000 Res.antigel *tank-coolant |
A19200179000 |
US $51.97 |
||
|
14
|
14
709200080 Att. reservoir *anchor-rad. |
709200080 |
US $7.31 |
||
|
15
|
15
390409600
Rivet-pop 3/16 *rivet-pop 3/16
|
390409600 |
— | ||
|
16
|
16
A19210179000 Bouchon reserv.*cap-tank |
A19210179000 |
US $10.47 |
||
|
17
|
17
709200034
Bouchon anti *cap-protec.
|
709200034 |
— | ||
| replacement | |||||
|
17
|
17
709200205 Bouchon anti *cap-protec. |
709200205 |
US $4.05 |
||
|
18
|
18
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
18
|
18
709200285
GROMMET
|
709200285 |
— | ||
|
19
|
19
414580600 Raccord male *connector-male |
414580600 |
US $27.35 |
||
|
20
|
20
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
21
|
21
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
23
|
23
709200096
Bloc chauffant *block heater
|
709200096 |
— | ||
|
24
|
24
709200097 Adapteur *adapter |
709200097 |
US $20.37 |
||
|
25
|
25
293710037 Raccord male *connector-male |
293710037 |
US $10.17 |
||
|
26
|
26
293700016
Raccord coude90*fitting-elbow
|
293700016 |
— | ||
|
27
|
27
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
28
|
28
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
29
|
29
293650141 Bride serrage *clamp-oetiker |
293650141 |
US $5.71 |
||
|
30
|
30
293650125 Bride serrage *clamp-oetiker |
293650125 |
US $21.70 |
||
|
31
|
31
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
32
|
32
709200116
Verrou *lock
|
709200116 |
— | ||
| replacement | |||||
|
32
|
32
A19303179001
Verrou *lock
|
A19303179001 |
— | ||
|
33
|
33
208640860 Screw-pan hd.ph.din.7985a-a2 |
208640860 |
US $5.35 |
||
|
35
|
35
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
36
|
36
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
37
|
37
A9451430000
Bride serrage *clamp-gemi
|
A9451430000 |
— | ||
|
38
|
38
A9451425000
Bride serrage *clamp-gemi
|
A9451425000 |
— | ||
