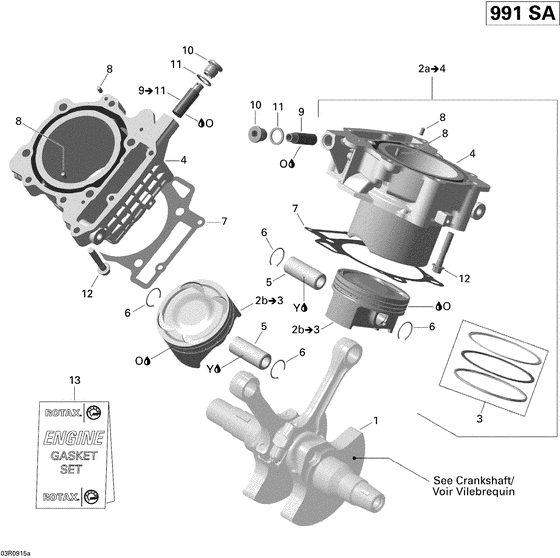

01- cylinder and piston Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
Y
|
Y
420899271 Graisse *grease |
420899271 |
US $83.84 |
||
|
2b
|
2b
420684681
Piston*piston
Includes 2b to 3; |
420684681 |
— | ||
|
2b
|
2b
420684682 Piston*pistonIncludes 2b to 3; |
420684682 |
US $378.39 |
||
|
2a
|
2a
420623223
Cylindre/piston*cylinder-& pistons
Includes 2a to 4; |
420623223 |
— | ||
|
3
|
3
420295858 Segments*piston ring set |
420295858 |
US $107.25 |
||
|
5
|
5
420216222 Goupille piston*pin-piston |
420216222 |
US $37.03 |
||
|
6
|
6
420245436 Circlip #22 *circlip-#22 |
420245436 |
US $6.53 |
||
|
7
|
7
420650390 Joint etanche *gasket-cylinder |
420650390 |
US $17.05 |
||
|
8
|
8
420929650 Goupille ass. *guide pin |
420929650 |
US $21.40 |
||
|
9
|
9
420236257
Tendeur chaine *chain tensioner w screw
Includes 9 to 11; |
420236257 |
— | ||
|
10
|
10
420640455 Bouchon*plug screw |
420640455 |
US $19.40 |
||
|
11
|
11
420430622 Gasket ring |
420430622 |
US $5.71 |
||
|
12
|
12
420940637 Collar hexagonal screw m8 x 45 |
420940637 |
US $8.13 |
||
|
13
|
13
420685482 Ens. joint etanc*gasket set |
420685482 |
US $311.10 |
