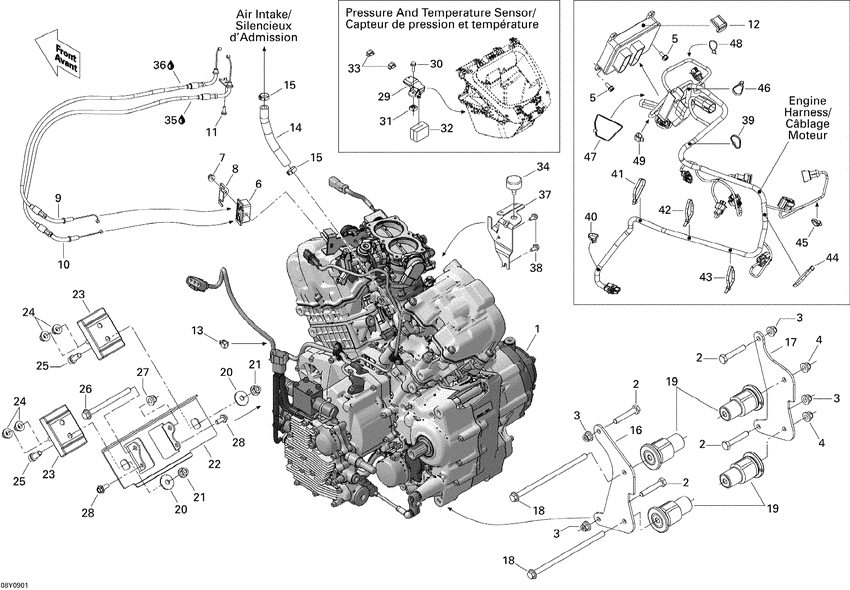

01- engine se5 electronic Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
707000379
Moteur *engine
|
707000379 |
— | ||
|
2
|
2
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
3
|
3
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
4
|
4
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
5
|
5
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
6
|
6
707000614 Bloc indexation*block indexing |
707000614 |
US $10.17 |
||
|
7
|
7
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
8
|
8
707000610 Plaque fix. *plate-fix. |
707000610 |
US $6.07 |
||
|
9
|
9
707000607
Cable accelerat*cable-throttle
|
707000607 |
— | ||
|
10
|
10
707000608 Cable accelerat*cable-throttle |
707000608 |
US $80.55 |
||
|
11
|
11
250000145 Torx-truss m/s gm6047m |
250000145 |
US $1.90 |
||
| replacement | |||||
|
11
|
11
250000742 TORX-TRUSS M/S M5 X 14 NYLON |
250000742 |
US $1.89 |
||
|
12
|
12
278001166 Protect.module *protect-module |
278001166 |
US $10.47 |
||
|
13
|
13
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
14
|
14
707000484 Boyau 11.1mm. *hose-11.1mm. |
707000484 |
US $19.33 |
||
|
15
|
15
293650186 Bride serrage *clamp-oetiker |
293650186 |
US $5.46 |
||
|
16
|
16
707000510 Support gauche *lh. support |
707000510 |
US $18.33 |
||
|
17
|
17
707000512 Support droit *rh.support |
707000512 |
US $18.33 |
||
|
18
|
18
250000286 Screw-hex.flange din.6921 |
250000286 |
US $13.87 |
||
|
19
|
19
707000516
Tampon *rubber mount
|
707000516 |
— | ||
|
20
|
20
512056700 Rondelle-frein *washer-lock |
512056700 |
US $20.50 |
||
|
21
|
21
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
22
|
22
707000452 Sup mot av pe *fr eng sup p |
707000452 |
US $13.60 |
||
|
23
|
23
707000441
Tampon ancrage *mount-rubber
|
707000441 |
— | ||
|
24
|
24
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
25
|
25
205002544 Screw-socket hd.din 912 |
205002544 |
US $19.20 |
||
|
26
|
26
230602546 Screw-hex.flange din.6921 |
230602546 |
US $9.40 |
||
|
27
|
27
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
28
|
28
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
29
|
29
707000564
Capteur temp. *temp.sensor
|
707000564 |
— | ||
|
30
|
30
207662084 Screw-hex.flange din.6921 |
207662084 |
US $21.90 |
||
|
31
|
31
269500725 Logement ecrou *housing-nut as |
269500725 |
US $5.87 |
||
|
32
|
32
707000586 Filtre *filter |
707000586 |
US $7.11 |
||
|
33
|
33
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
34
|
34
708000006 Butee caout. *stopper-rubber |
708000006 |
US $10.47 |
||
|
35
|
35
293600041
Lubrifiant cabl*lub-cable
|
293600041 |
— | ||
|
36
|
36
293600041
Lubrifiant cabl*lub-cable
|
293600041 |
— | ||
|
37
|
37
707000756 Sup.admission *intake supportSE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G; |
707000756 |
US $9.13 |
||
|
37
|
37
707000514
Sup.admission *intake support
SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29N; |
707000514 |
— | ||
|
38
|
38
207661244 Screw-hex.flange din.6921 |
207661244 |
US $27 |
||
|
39
|
39
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
40
|
40
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
41
|
41
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
42
|
42
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
43
|
43
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
44
|
44
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
45
|
45
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
46
|
46
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
47
|
47
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
48
|
48
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
49
|
49
414227300 Clip - spring |
414227300 |
US $20.70 |
||
