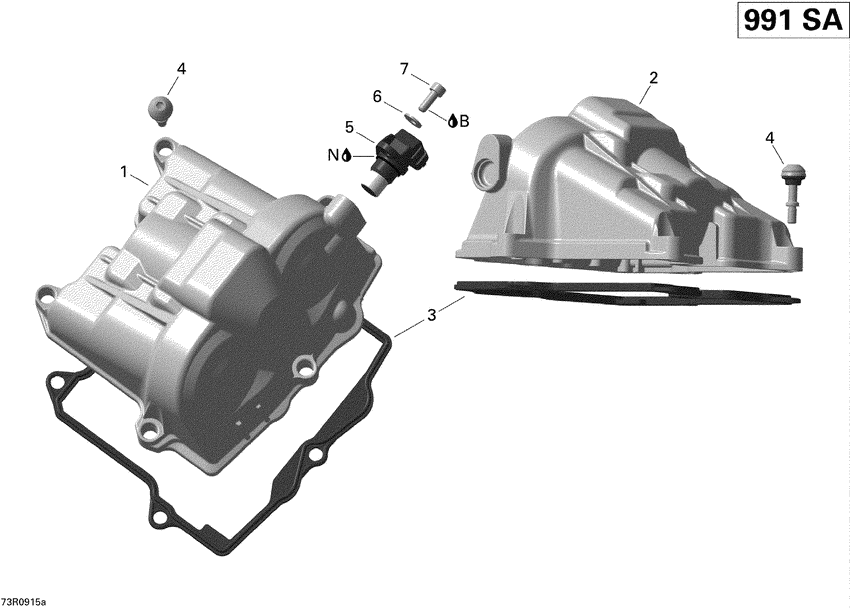

01- valve cover Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
B
|
B
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
N
|
N
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
|
1
|
1
420611320 Couv.soupape *cover-valve |
420611320 |
US $68.29 |
||
|
2
|
2
420611325 Couv.soupape *cover-valve |
420611325 |
US $68.29 |
||
|
3
|
3
420650345 Joint etanche *gasket-valve cover |
420650345 |
US $16.05 |
||
|
4
|
4
420241625 Vis ajustement *screw-distance assy |
420241625 |
US $16.05 |
||
|
5
|
5
420664042
Capteur*camshaft sensor
|
420664042 |
— | ||
|
6
|
6
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
7
|
7
420241236 Screw-socket m6 x 16 |
420241236 |
US $10.65 |
