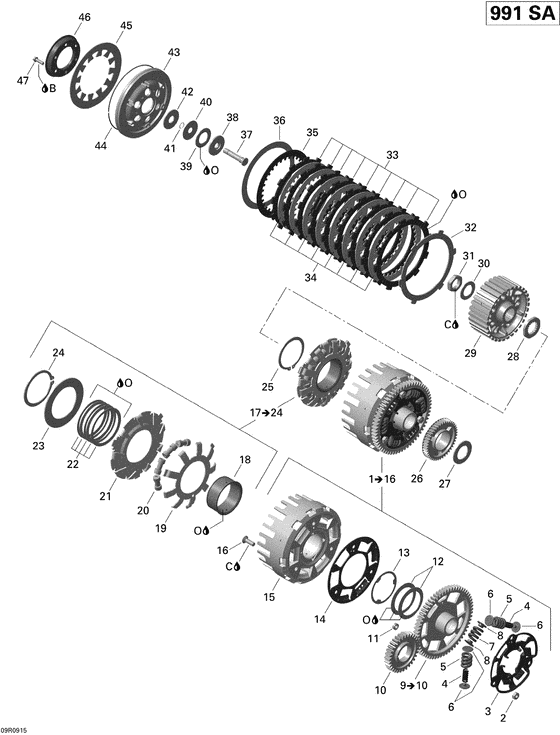

05- clutch Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
C
|
C
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
B
|
B
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
2
|
2
232081414 Nut-hexagonal din.934 |
232081414 |
US $9.40 |
||
|
3
|
3
420259583 Plaque*support plate |
420259583 |
US $51.97 |
||
|
4
|
4
420238140 Ressort*spring |
420238140 |
US $17.99 |
||
|
5
|
5
420238135 Ressort*spring |
420238135 |
US $18.09 |
||
|
6
|
6
420247972
Reteneur*spring retainer
|
420247972 |
— | ||
|
7
|
7
420238130 Ressort* white spring |
420238130 |
US $19.09 |
||
|
8
|
8
420247976 Reteneur*spring retainer d 11,5 |
420247976 |
US $13.21 |
||
| replacement | |||||
|
8
|
8
420247974
Reteneur*spring retainer d 11,5
|
420247974 |
— | ||
|
9
|
9
420684815 Engrenage*primary drive gearIncludes 9 to 10; |
420684815 |
US $475.29 |
||
|
11
|
11
420247614 Bague*distance sleeve |
420247614 |
US $11.15 |
||
|
12
|
12
420239395
Ressort*disc spring
|
420239395 |
— | ||
|
13
|
13
420627915
Rondelle butee *washer-thrust
|
420627915 |
— | ||
|
14
|
14
420259685 Plaque*support plate |
420259685 |
US $51.97 |
||
|
15
|
15
420659720 Tambour embray.*drum-clutch |
420659720 |
US $122.86 |
||
|
16
|
16
420941835 Vis plate*screw-flat head m8 x 25 |
420941835 |
US $5.05 |
||
|
17
|
17
420685540
Embr centrifug*centrifugal clutch assy
Includes 17 to 24; |
420685540 |
— | ||
|
18
|
18
420659850 Coussinet*bushing |
420659850 |
US $136.63 |
||
|
19
|
19
420659821 Came*cam |
420659821 |
US $38.98 |
||
|
20
|
20
420229945 Masse centrifug*weight-centrifug assy |
420229945 |
US $18.33 |
||
|
21
|
21
420659740 Plateau press. *plate-pressure |
420659740 |
US $84.81 |
||
|
22
|
22
420238520
Ressort*disk spring
|
420238520 |
— | ||
|
23
|
23
420626390 Plaque*stop plate |
420626390 |
US $17.87 |
||
|
24
|
24
420245080 Anneau*retaining ring |
420245080 |
US $11.29 |
||
|
25
|
25
420245070 Anneau*retaining ring |
420245070 |
US $11.24 |
||
|
26
|
26
420634476
Engrenage pompe*gear-oil pump
|
420634476 |
— | ||
|
27
|
27
420626540 Rondelle butee *washer-thrust |
420626540 |
US $18.33 |
||
|
28
|
28
420627220 Anneau butee *ring-thrust |
420627220 |
US $14.25 |
||
|
29
|
29
420659750 Moyeu embrayage*hub-clutch |
420659750 |
US $105.01 |
||
|
30
|
30
420245830 Rondelle ressort *washer-spring |
420245830 |
US $11.15 |
||
|
31
|
31
420242950 Ecrou hex.m24 *nut-hex.m24 |
420242950 |
US $17.29 |
||
|
32
|
32
420659970
Plateau 2.5mm *plate-2.5mm
|
420659970 |
— | ||
|
33
|
33
420659800
Plateau 3.5mm *plate-friction
|
420659800 |
— | ||
|
34
|
34
420259260
Plateau 1.5mm *plate-1.5mm
|
420259260 |
— | ||
|
35
|
35
420281535 Plateau*adjustment plate |
420281535 |
US $78 |
||
|
36
|
36
420238855
Ressort*disc spring
|
420238855 |
— | ||
|
37
|
37
420659797 Goupille*pin |
420659797 |
US $20.37 |
||
|
38
|
38
420659890 Rondelle butee *washer-thrust |
420659890 |
US $40.92 |
||
|
39
|
39
420632700 Roulement*needle bearing |
420632700 |
US $16.17 |
||
|
40
|
40
420626560 Rondelle butee *washer-thrust |
420626560 |
US $21.42 |
||
|
41
|
41
420245440 Circlip 12 *circlip-12 |
420245440 |
US $3.52 |
||
|
42
|
42
420626570 Rondelle butee *washer-thrust |
420626570 |
US $31.18 |
||
|
43
|
43
420659730
Plateau press. *plate-pressure
|
420659730 |
— | ||
| replacement | |||||
|
43
|
43
420659735 Plateau press. *plate-pressure |
420659735 |
US $85.65 |
||
|
44
|
44
420245250 Anneau*retaining ring |
420245250 |
US $17.80 |
||
|
45
|
45
420238530 Ressort*disk spring |
420238530 |
US $78 |
||
|
46
|
46
420259860 Plateau*plate inner |
420259860 |
US $19.13 |
||
|
47
|
47
420440207 Screw torx flange m6 x 20 |
420440207 |
US $3.96 |
||
