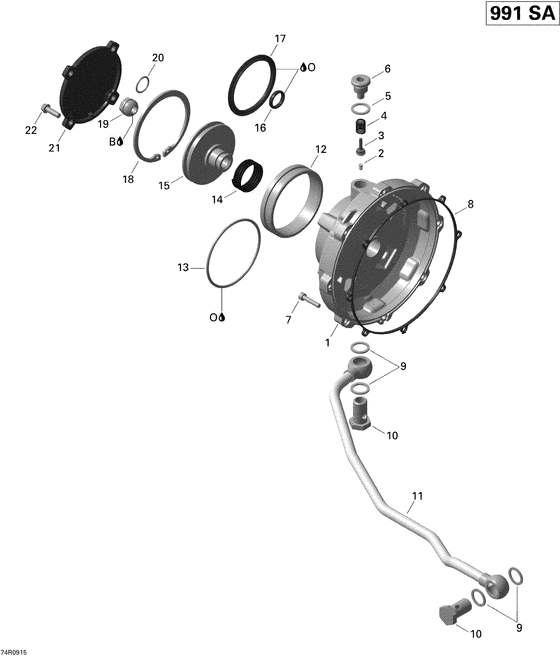

05- clutch release cover Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
B
|
B
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
1
|
1
420611512 Couvercle*clutch release cover |
420611512 |
US $77.01 |
||
|
2
|
2
420262050 Buse*nozzle |
420262050 |
US $11.29 |
||
|
3
|
3
420656374 Soupape*pressure retaining valve |
420656374 |
US $19.13 |
||
|
4
|
4
420939480 Ressort *compression spring |
420939480 |
US $3.83 |
||
|
5
|
5
420430623 Rondelle cuivre*copper washer |
420430623 |
US $2.43 |
||
| replacement | |||||
|
5
|
5
420430624 GASKET RING |
420430624 |
US $2.43 |
||
|
6
|
6
420242151 Bouchon *plug-screw |
420242151 |
US $14.50 |
||
|
7
|
7
420240186 Allen screw *allen screw m5x25 |
420240186 |
US $6.07 |
||
|
8
|
8
420651242 Joint etanche *gasket |
420651242 |
US $17.37 |
||
|
9
|
9
420430623 Rondelle cuivre*copper washer |
420430623 |
US $2.43 |
||
| replacement | |||||
|
9
|
9
420430624 GASKET RING |
420430624 |
US $2.43 |
||
|
10
|
10
420640848 Boulon banjo *banjo bolt |
420640848 |
US $18.33 |
||
|
11
|
11
420656215
Boyau*oil line assy
|
420656215 |
— | ||
| replacement | |||||
|
11
|
11
420656210 Boyau*oil line assy |
420656210 |
US $93.60 |
||
|
12
|
12
420656520 Chemise cyl. *sleeve-cylinder |
420656520 |
US $54.59 |
||
|
13
|
13
420950980
Joint torique *o ring
|
420950980 |
— | ||
|
14
|
14
420238770 Ressort *compression spring |
420238770 |
US $11.22 |
||
|
15
|
15
420656125 Piston*hydraulic piston |
420656125 |
US $64.33 |
||
|
16
|
16
420431350 Segment*piston lining |
420431350 |
US $20.45 |
||
|
17
|
17
420431360 Segment*piston lining |
420431360 |
US $22.39 |
||
|
18
|
18
420245230 Anneau*retaining ring |
420245230 |
US $15.27 |
||
|
19
|
19
420242641 Ecrou*neck nut |
420242641 |
US $20.45 |
||
|
20
|
20
420631890 Joint torique *o ring |
420631890 |
US $6.68 |
||
|
21
|
21
420626205 Couvercle*cover |
420626205 |
US $22.39 |
||
|
22
|
22
420440202
Vis hexalob.epa*screw-torx flange
|
420440202 |
— | ||
