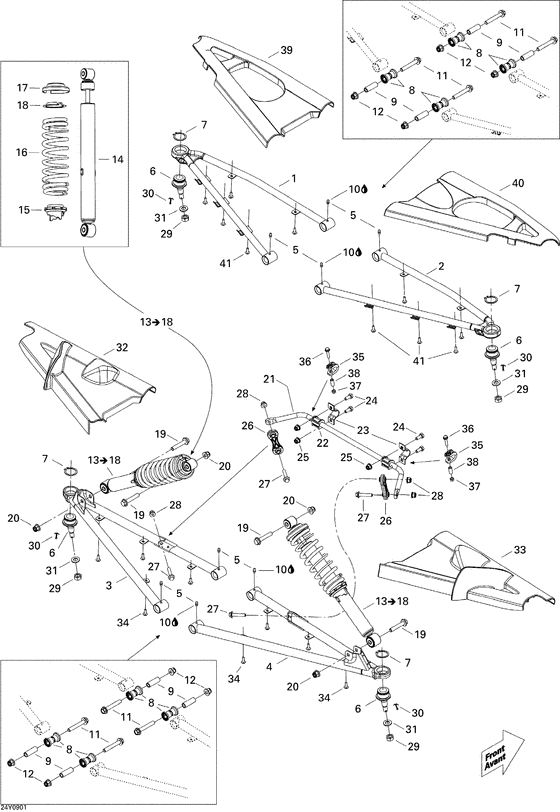

07- suspension, front se5 electronic Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
505072406 Bras sup.gauche*arm-upper lh |
505072406 |
US $189.69 |
||
|
2
|
2
505072407 Bras sup.droit *arm-upper rh |
505072407 |
US $189.69 |
||
|
3
|
3
505071697 Bras inf.gauche*arm-lower l.h. |
505071697 |
US $189.69 |
||
|
4
|
4
505071703 Bras inf.droit *arm-lower r.h. |
505071703 |
US $189.69 |
||
|
5
|
5
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
6
|
6
505072362 Joint rotule *ball joint |
505072362 |
US $71.16 |
||
| replacement | |||||
|
6
|
6
706202044 BALL JOINT |
706202044 |
US $40.92 |
||
|
7
|
7
293370035 Circlip *circlip |
293370035 |
US $34 |
||
|
8
|
8
706200181 Coussinet *cushion |
706200181 |
US $30.64 |
||
|
9
|
9
706200618 Douille int. *bushing-int. |
706200618 |
US $19.47 |
||
|
10
|
10
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
11
|
11
207606536 Screw-hex.flange din.6921 |
207606536 |
US $5.71 |
||
|
12
|
12
233201434 Nut-flange elastic din.6926 |
233201434 |
US $10.88 |
||
|
14
|
14
505071705 Amort. avant *front shock |
505071705 |
US $122.37 |
||
|
15
|
15
706000294
Bague reglage *adjuster ring
|
706000294 |
— | ||
|
16
|
16
505071707 Ressort peint *spring-paint |
505071707 |
US $47.91 |
||
|
17
|
17
706200881 Butee ressort *spring stopper |
706200881 |
from US $13.75 |
||
|
18
|
18
503191610 Capuchon *cap |
503191610 |
US $5.17 |
||
| replacement | |||||
|
18
|
18
706200785 CAP |
706200785 |
US $5.87 |
||
|
19
|
19
207605534 Screw-hex.flange din.6921 |
207605534 |
US $2.72 |
||
|
20
|
20
233201434 Nut-flange elastic din.6926 |
233201434 |
US $10.88 |
||
|
21
|
21
505071708
Barr.stab. *sway-bar
|
505071708 |
— | ||
|
22
|
22
505072287 Coussinet stab.*bushing-tor. |
505072287 |
US $12.19 |
||
|
23
|
23
506095800 Bride *clamp |
506095800 |
US $34.10 |
||
|
24
|
24
207182034 Screw-hex.cap din.933 |
207182034 |
US $10.05 |
||
|
25
|
25
233281434 Nut-flange elastic din.6926 |
233281434 |
US $2.72 |
||
|
26
|
26
706200671 Barre acc. *tie rod |
706200671 |
US $18.16 |
||
|
27
|
27
207684034 Screw-hex.flange din.6921 |
207684034 |
US $2.72 |
||
|
28
|
28
233281434 Nut-flange elastic din.6926 |
233281434 |
US $2.72 |
||
|
29
|
29
250100099 Ecrou m12 *nut m12 |
250100099 |
US $2.57 |
||
|
30
|
30
250400035 Goupille fendue*cotter-pin |
250400035 |
US $2.72 |
||
|
31
|
31
250200086 Rondelle plate *flat washer |
250200086 |
US $5.83 |
||
|
32
|
32
706200629
Deflecteur ga. *deflector lh
|
706200629 |
— | ||
|
33
|
33
706200630
Deflecteur dr. *deflector rh
|
706200630 |
— | ||
|
34
|
34
243141630 Screw-plastite hex.wr.hd. |
243141630 |
US $2.72 |
||
|
35
|
35
706200649 But+e bar. stab*sway. stopper |
706200649 |
US $11.17 |
||
|
36
|
36
207663034 Screw-hex.flange din.6921 |
207663034 |
US $10.05 |
||
|
37
|
37
232561434 Nut-stop elastic din.985 |
232561434 |
US $2.60 |
||
|
38
|
38
517302179 Douille *bushing |
517302179 |
US $5.20 |
||
|
39
|
39
706200870
Deflecteur ga. *deflector lh
SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G; |
706200870 |
— | ||
|
39
|
39
706200707
Deflecteur ga. *deflector lh
SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29N; |
706200707 |
— | ||
|
40
|
40
706200871 Deflecteur dr. *deflector rhSE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G; |
706200871 |
US $20.37 |
||
|
40
|
40
706200708
Deflecteur dr. *deflector rh
SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29N; |
706200708 |
— | ||
|
41
|
41
243141630 Screw-plastite hex.wr.hd. |
243141630 |
US $2.72 |
||
