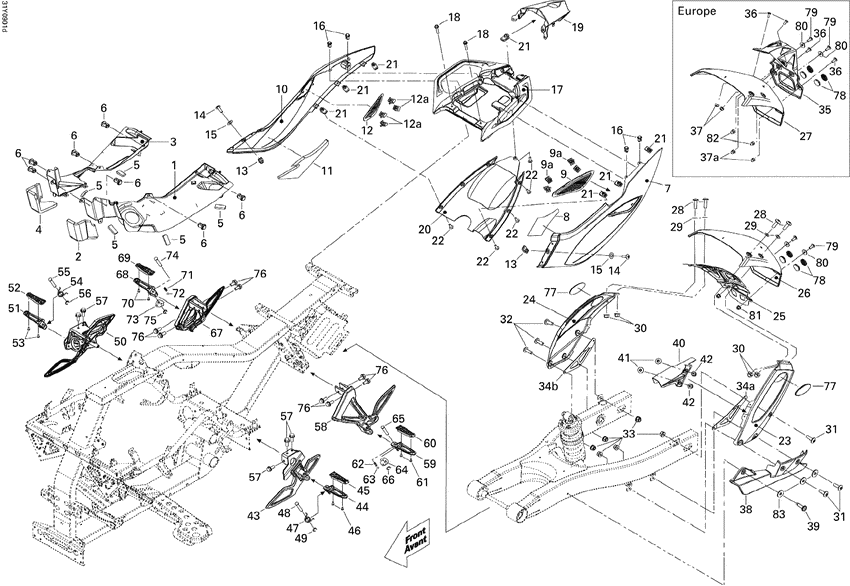

09- body and accessories rear Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
705002325
Couvre r+s. ga *tank cover lh
|
705002325 |
— | ||
|
2
|
2
705002920 Mousse refl ga.*foam lh |
705002920 |
US $14.67 |
||
|
3
|
3
705002546 Couvre r+s. dr *tank cover rh |
705002546 |
US $91.77 |
||
|
4
|
4
705002921 Mousse refl dr *foam rh |
705002921 |
US $14.67 |
||
|
5
|
5
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
6
|
6
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
6
|
6
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
7
|
7
705002548 Panneau ar ga *lh rear panel |
705002548 |
US $305.97 |
||
|
8
|
8
705002508 Feuille reflect*reflector |
705002508 |
US $9.33 |
||
|
9
|
9
705001542 Grille gauche *lh grill |
705001542 |
US $24.45 |
||
|
9a
|
9a
517302785 Pince *clip |
517302785 |
US $11.70 |
||
|
10
|
10
705002547 Panneau ar dr *rh rear panel |
705002547 |
US $305.97 |
||
|
11
|
11
705002509 Mousse arr dr *foam panel rh |
705002509 |
US $17.63 |
||
|
12
|
12
705001544 Grille droite *rh grill |
705001544 |
US $24.45 |
||
|
12a
|
12a
517302785 Pince *clip |
517302785 |
US $11.70 |
||
|
13
|
13
250100113 Extruded panel nut m6 x 1.0 |
250100113 |
US $10.05 |
||
|
14
|
14
250000350 Torx-truss m/s stlss nylon patch |
250000350 |
US $34.25 |
||
|
15
|
15
705003207 Rond. plastique*plastic washer |
705003207 |
US $10.70 |
||
|
16
|
16
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
16
|
16
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
17
|
17
705001550
Poign passager *passenger hdle
|
705001550 |
— | ||
|
18
|
18
207584034 Screw-hex.flange din.6921 s.grip |
207584034 |
US $2.01 |
||
|
19
|
19
705002387 Pointe arriere *rear tipFull Moon; |
705002387 |
US $98.89 |
||
|
19
|
19
705002563 Pointe arriere *rear tipYellow; |
705002563 |
US $98.89 |
||
|
19
|
19
705003193 Pointe arriere *rear tipRed; |
705003193 |
US $98.89 |
||
|
20
|
20
705001551
Passage roue *under tail cov
|
705001551 |
— | ||
|
21
|
21
250100113 Extruded panel nut m6 x 1.0 |
250100113 |
US $10.05 |
||
|
22
|
22
250000350 Torx-truss m/s stlss nylon patch |
250000350 |
US $34.25 |
||
|
23
|
23
705002503
Support gauche *lh.support
|
705002503 |
— | ||
|
24
|
24
705002501
Support droit *rh.support
|
705002501 |
— | ||
| replacement | |||||
|
24
|
24
705006085 RH REAR FENDER SUPPORT |
705006085 |
US $91.77 |
||
|
25
|
25
705003031 Support aile *fender support |
705003031 |
US $91.77 |
||
|
26
|
26
705002535
Aile arriere *rear fender
Full Moon; |
705002535 |
— | ||
|
26
|
26
705002538 Aile arriere *rear fenderYellow; |
705002538 |
US $201.93 |
||
|
26
|
26
705003184
Aile arriere *rear fender
Red; |
705003184 |
— | ||
|
27
|
27
705002536 Aile arriere *rear fenderFull Moon, Europe; |
705002536 |
US $201.93 |
||
|
27
|
27
705002540 Aile arriere *rear fenderYellow, Europe; |
705002540 |
US $201.93 |
||
|
27
|
27
705003185
Aile arriere *rear fender
Red, Europe; |
705003185 |
— | ||
|
28
|
28
250000303 Torx-truss m/s m6 x 20 stlss n.patch |
250000303 |
US $9.15 |
||
|
29
|
29
705003207 Rond. plastique*plastic washer |
705003207 |
US $10.70 |
||
|
30
|
30
233261494 Nut-flange elastic din.6926 |
233261494 |
US $20.10 |
||
|
31
|
31
250000350 Torx-truss m/s stlss nylon patch |
250000350 |
US $34.25 |
||
|
32
|
32
250000350 Torx-truss m/s stlss nylon patch |
250000350 |
US $34.25 |
||
|
33
|
33
233261494 Nut-flange elastic din.6926 |
233261494 |
US $20.10 |
||
|
34a
|
34a
705002980 Plaque renfort *reinf. plate |
705002980 |
US $26.49 |
||
|
34b
|
34b
705002981 Plaque renfort *reinf. plate |
705002981 |
US $35.07 |
||
|
35
|
35
705002367 Support plaque *licence pl supEurope; |
705002367 |
US $18.68 |
||
|
36
|
36
250000348 Torx-truss m/s stlss nylon patchEurope; |
250000348 |
US $10.88 |
||
|
37
|
37
232561494 Nut-stop elastic din.985Europe; |
232561494 |
US $18.75 |
||
|
37a
|
37a
232361493 Nut-domed hexagonal din.1587Europe; |
232361493 |
US $27.40 |
||
|
38
|
38
705002092 Garde-courroie *guard-belt |
705002092 |
US $52.63 |
||
|
39
|
39
250000081 Screw-torx button head m6 x 25 |
250000081 |
US $7.66 |
||
|
40
|
40
705001555
Garde-courroie *guard-belt
|
705001555 |
— | ||
|
41
|
41
250000349 Torx-truss m/s stlss nylon patch |
250000349 |
US $9.55 |
||
|
42
|
42
232361493 Nut-domed hexagonal din.1587 |
232361493 |
US $27.40 |
||
|
43
|
43
705003335 Lh front foot peg support |
705003335 |
US $131.53 |
||
|
44
|
44
705003331 Lh front foot peg |
705003331 |
US $44.83 |
||
|
45
|
45
705002359 Tampon caout. *pad-rubber |
705002359 |
US $26.30 |
||
|
46
|
46
250000099 Screw-plastite allen button head #12 |
250000099 |
US $13.35 |
||
|
47
|
47
705001701 Ressort *spring |
705001701 |
US $15.90 |
||
|
48
|
48
705001702 Axe de retenue *pin retainer |
705001702 |
US $19.31 |
||
|
49
|
49
705600272 Circlip *circlip |
705600272 |
US $9.89 |
||
|
50
|
50
705003336
Rh front foot peg support
|
705003336 |
— | ||
|
51
|
51
705003332 Rh front foot peg |
705003332 |
US $44.83 |
||
|
52
|
52
705002359 Tampon caout. *pad-rubber |
705002359 |
US $26.30 |
||
|
53
|
53
250000099 Screw-plastite allen button head #12 |
250000099 |
US $13.35 |
||
|
54
|
54
705003362 Spring |
705003362 |
US $52.63 |
||
|
55
|
55
705001702 Axe de retenue *pin retainer |
705001702 |
US $19.31 |
||
|
56
|
56
705600272 Circlip *circlip |
705600272 |
US $9.89 |
||
|
57
|
57
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
58
|
58
705003337
Lh rear foot peg support
|
705003337 |
— | ||
|
59
|
59
705003333
Lh rear foot peg
|
705003333 |
— | ||
|
60
|
60
705002359 Tampon caout. *pad-rubber |
705002359 |
US $26.30 |
||
|
61
|
61
250000099 Screw-plastite allen button head #12 |
250000099 |
US $13.35 |
||
|
62
|
62
705001704 Ressort *spring |
705001704 |
US $13.67 |
||
|
63
|
63
705001705 Bille *ball |
705001705 |
US $7.67 |
||
|
64
|
64
705001706 Plaque indexa *plate index |
705001706 |
US $12.85 |
||
|
65
|
65
705001702 Axe de retenue *pin retainer |
705001702 |
US $19.31 |
||
|
66
|
66
705600272 Circlip *circlip |
705600272 |
US $9.89 |
||
|
67
|
67
705003338
Rh rear foot peg support
|
705003338 |
— | ||
|
68
|
68
705003334 Rh rear foot peg |
705003334 |
US $44.83 |
||
|
69
|
69
705002359 Tampon caout. *pad-rubber |
705002359 |
US $26.30 |
||
|
70
|
70
250000099 Screw-plastite allen button head #12 |
250000099 |
US $13.35 |
||
|
71
|
71
705001704 Ressort *spring |
705001704 |
US $13.67 |
||
|
72
|
72
705001705 Bille *ball |
705001705 |
US $7.67 |
||
|
73
|
73
705001706 Plaque indexa *plate index |
705001706 |
US $12.85 |
||
|
74
|
74
705001702 Axe de retenue *pin retainer |
705001702 |
US $19.31 |
||
|
75
|
75
705600272 Circlip *circlip |
705600272 |
US $9.89 |
||
|
76
|
76
207581644 Screw-hex.flange din.6921 s.grip |
207581644 |
US $2.96 |
||
|
77
|
77
705001572
Reflect. rouge *red reflector
|
705001572 |
— | ||
|
77
|
77
705001573
Reflect.jaune *amber reflect
Europe; |
705001573 |
— | ||
|
78
|
78
293740028 Dual.lock 3/4" *dual.lock 3/4 |
293740028 |
US $10.92 |
||
|
79
|
79
250000303 Torx-truss m/s m6 x 20 stlss n.patch |
250000303 |
US $9.15 |
||
|
80
|
80
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
81
|
81
233261494 Nut-flange elastic din.6926 |
233261494 |
US $20.10 |
||
|
82
|
82
232361493 Nut-domed hexagonal din.1587Europe; |
232361493 |
US $27.40 |
||
|
83
|
83
234062670 Washer-flat din.9021 a2 |
234062670 |
US $27.20 |
||
