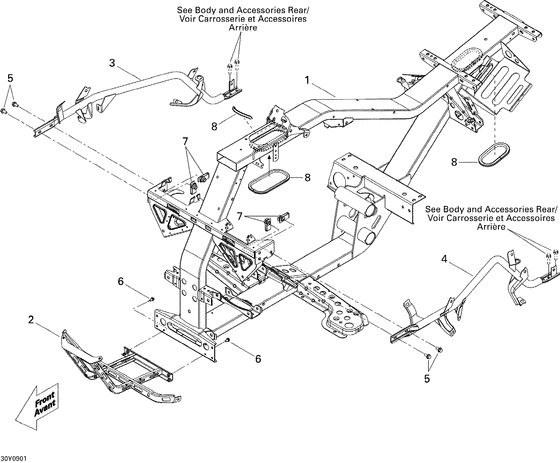

09- frame Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
705201987
Frame
|
705201987 |
— | ||
|
2
|
2
705201326 Cadre noir *black frame |
705201326 |
US $86.77 |
||
|
3
|
3
705201354 Support dr. *rh. support |
705201354 |
US $81.57 |
||
|
4
|
4
705201355
Support gauche *lh.supporft
|
705201355 |
— | ||
|
5
|
5
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
6
|
6
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
7
|
7
250100118 Extruded panel nut m8 x 1.25 |
250100118 |
US $10.88 |
||
|
8
|
8
271001530 Moul.protect. *trim-protect. |
271001530 |
US $14.67 |
