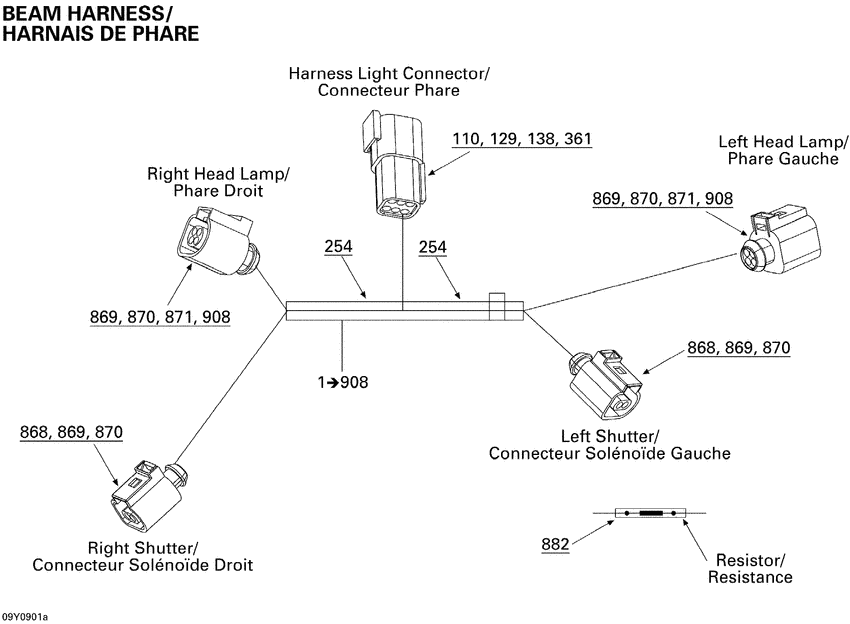

10- beam harness Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
710000792 Harnais phare *beam harnessIncludes 1 to 908; |
710000792 |
US $74.41 |
||
|
110
|
110
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
129
|
129
278000735 Cale 6 circ.fem*wedge-6 ways f |
278000735 |
US $21.15 |
||
|
138
|
138
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
254
|
254
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
361
|
361
515175668 Bloc 6 circ.fem*housing-tab |
515175668 |
US $16.92 |
||
|
868
|
868
710001184 Logement *housing |
710001184 |
US $10.93 |
||
|
869
|
869
710001185 Terminal femel *terminal-femal |
710001185 |
US $9.40 |
||
|
870
|
870
710001186 Joint de fil *seal-wire |
710001186 |
US $5.17 |
||
|
871
|
871
710001187 Logement *housing |
710001187 |
US $14.54 |
||
|
882
|
882
710001205 R+sistance *resistor |
710001205 |
US $5.17 |
||
|
908
|
908
710001258 Bouchon *plug |
710001258 |
US $4.47 |
