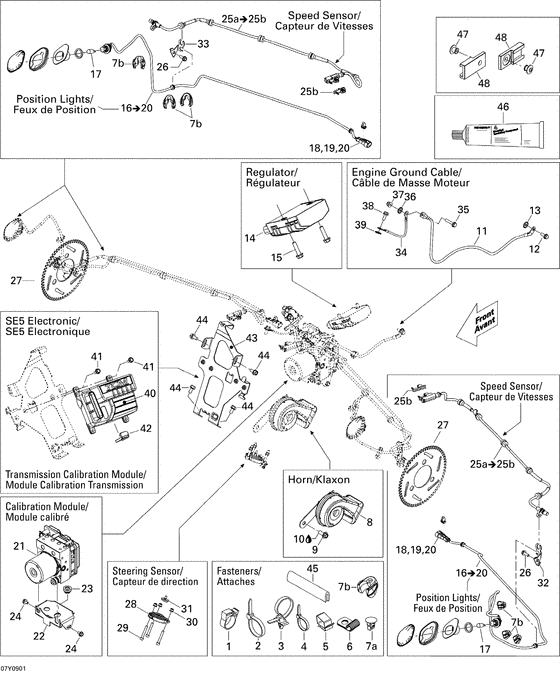

10- electrical accessories, front se5 electronic Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293650082 Bride serrage *hose clamp |
293650082 |
US $27.30 |
||
|
2
|
2
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
3
|
3
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
4
|
4
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
5
|
5
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
6
|
6
415052400 Attache collier*open clamp |
415052400 |
US $35.22 |
||
|
7a
|
7a
293750044 Ancrage tie rap*mount-tie rap |
293750044 |
US $2.01 |
||
|
7b
|
7b
710001452 Attache fil *bracket-wire |
710001452 |
US $5.20 |
||
|
8
|
8
710001777
Avertisseur *horn
|
710001777 |
— | ||
|
9
|
9
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
10
|
10
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
11
|
11
710000177 Cable masse *cable-ground |
710000177 |
US $17.82 |
||
|
12
|
12
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
13
|
13
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
14
|
14
278002021 Regulateur *regulator |
278002021 |
US $166.21 |
||
|
15
|
15
210262580 Screw-forming hex.hd.fl.gm6174m |
210262580 |
US $2.45 |
||
|
16
|
16
710001058
Feu de position*pos-light
Includes 16 to 20; |
710001058 |
— | ||
|
17
|
17
410922994
Ampoule 5w. *bulb 5w.
|
410922994 |
— | ||
|
18
|
18
409209400 Logement male *housing-male |
409209400 |
US $16.92 |
||
|
19
|
19
409012900 Cosse male *terminal-male |
409012900 |
US $42.30 |
||
|
20
|
20
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
21
|
21
705600626 Module calibre *calib. module |
705600626 |
US $2,595.88 |
||
|
22
|
22
705600602 Support module *modul. brkt |
705600602 |
US $17.63 |
||
|
23
|
23
710000938 Butee *stopper |
710000938 |
US $5.17 |
||
|
24
|
24
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
25a
|
25a
706200495
Capteur *speed sensor
Includes 25a to 25b; |
706200495 |
— | ||
|
25b
|
25b
219800059 Attache*clip |
219800059 |
US $21.90 |
||
|
26
|
26
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
27
|
27
705600436 Roue capteur *tone wheel |
705600436 |
US $37.71 |
||
|
28
|
28
709400363 Capteur pos dir*steer pos sens |
709400363 |
US $537.39 |
||
|
29
|
29
205053588 Screw-socket hd.din.912 |
205053588 |
US $2.45 |
||
|
30
|
30
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
31
|
31
709400362 Aimant encodeur*encoder magnet |
709400362 |
US $62.17 |
||
|
32
|
32
710001249 Support fils *support-wire |
710001249 |
US $6.21 |
||
|
33
|
33
710001250 Support fils *support-wire |
710001250 |
US $6.21 |
||
|
34
|
34
710001165 Cablage masse *ground harness |
710001165 |
US $11.41 |
||
|
35
|
35
207663044
Screw-hex.flange din.6921
|
207663044 |
— | ||
|
36
|
36
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
37
|
37
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
38
|
38
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
39
|
39
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
40
|
40
710001945
Tcm module
SE5 Electronic; |
710001945 |
— | ||
|
41
|
41
210261280 Screw-forming hex.hd.fl.gm6174mSE5 Electronic; |
210261280 |
US $1.79 |
||
|
42
|
42
278001166 Protect.module *protect-moduleSE5 Electronic; |
278001166 |
US $10.47 |
||
|
43
|
43
705202002 Module support |
705202002 |
US $20.77 |
||
|
44
|
44
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
45
|
45
271001530 Moul.protect. *trim-protect. |
271001530 |
US $14.67 |
||
|
46
|
46
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
47
|
47
390402400 Rivet-pop 3/16 *rivet-pop 3/16SE5 Electronic; |
390402400 |
US $22 |
||
|
48
|
48
270000141 Clip *clipSE5 Electronic; |
270000141 |
US $59.50 |
