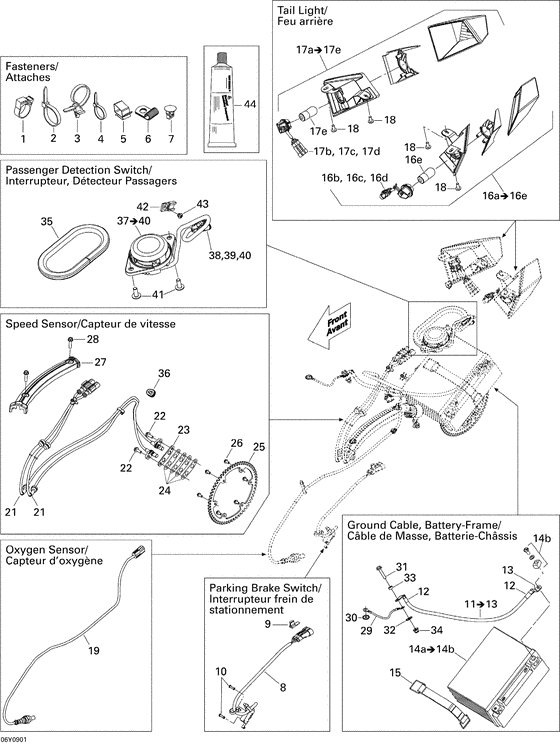

10- electrical accessories, rear Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293650082 Bride serrage *hose clamp |
293650082 |
US $27.30 |
||
|
2
|
2
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
3
|
3
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
4
|
4
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
5
|
5
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
6
|
6
415052400 Attache collier*open clamp |
415052400 |
US $35.22 |
||
|
7
|
7
293750044 Ancrage tie rap*mount-tie rap |
293750044 |
US $2.01 |
||
|
8
|
8
710001379 Inter. ass e *switch ass y |
710001379 |
US $47.75 |
||
|
9
|
9
710001343 Clip *clip |
710001343 |
US $9.89 |
||
|
10
|
10
293150150 Rivet-pop *rivet-pop |
293150150 |
US $2.92 |
||
|
11
|
11
710000830 Cable masse *cable-groundIncludes 11 to 13; |
710000830 |
US $25.31 |
||
|
12
|
12
710000483 Gaine thermo. *shrink tubing |
710000483 |
US $75.45 |
||
|
13
|
13
710000518 Cosse a anneau *open baril |
710000518 |
US $12.21 |
||
|
14b
|
14b
295500849
Ens. boulon ba*fastener battery kit
|
295500849 |
— | ||
|
14a
|
14a
410922962 Batterie ytx24hl*battery 21ampsIncludes 14a to 14b; |
410922962 |
US $240.86 |
||
|
15
|
15
515176044 Sangle batterie*strap-battery |
515176044 |
US $19.47 |
||
|
16a
|
16a
710000706
Feu arriere *tail-light
Includes 16a to 16e; |
710000706 |
— | ||
|
16b
|
16b
710000568 Logement *housing |
710000568 |
US $12.22 |
||
|
16c
|
16c
409012900 Cosse male *terminal-male |
409012900 |
US $42.30 |
||
|
16d
|
16d
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
16e
|
16e
410504100
Ampoule feu arr*bulb-tail lamp
|
410504100 |
— | ||
| replacement | |||||
|
16e
|
16e
520000758 Ampoule *bulb |
520000758 |
US $160.50 |
||
|
17e
|
17e
410504100
Ampoule feu arr*bulb-tail lamp
|
410504100 |
— | ||
| replacement | |||||
|
17e
|
17e
520000758 Ampoule *bulb |
520000758 |
US $160.50 |
||
|
17a
|
17a
710000869
Feu arriere *tail light
Includes 17a to 17e; |
710000869 |
— | ||
|
17b
|
17b
710000568 Logement *housing |
710000568 |
US $12.22 |
||
|
17c
|
17c
409012900 Cosse male *terminal-male |
409012900 |
US $42.30 |
||
|
17d
|
17d
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
18
|
18
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
||
|
19
|
19
707600557 Capteur oxygene*oxygen sensor |
707600557 |
US $176.51 |
||
|
21
|
21
706200560 Capteur *speed sensor |
706200560 |
US $130.53 |
||
|
22
|
22
210262080 Screw-forming hex.hd.fl.gm6174m |
210262080 |
US $2.72 |
||
|
23
|
23
710001212 Cale epaisseur *shim |
710001212 |
US $10.35 |
||
|
24
|
24
710001213
Cale epaisseur *shim
|
710001213 |
— | ||
|
25
|
25
705600573 Roue capteur *tone wheel |
705600573 |
US $37.71 |
||
|
26
|
26
207551034 Screw-hex.flange din.6921 s.grip |
207551034 |
US $7.09 |
||
|
27
|
27
710001035 Protecteur *protector |
710001035 |
US $22.39 |
||
|
28
|
28
210263080 Screw-forming hex.hd.fl.gm6174m |
210263080 |
US $19.60 |
||
|
29
|
29
710001165 Cablage masse *ground harness |
710001165 |
US $11.41 |
||
|
30
|
30
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
31
|
31
207663044
Screw-hex.flange din.6921
|
207663044 |
— | ||
|
32
|
32
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
33
|
33
293900054 Entretoise *spacer |
293900054 |
US $14.25 |
||
|
34
|
34
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
35
|
35
271001530 Moul.protect. *trim-protect. |
271001530 |
US $14.67 |
||
|
36
|
36
293720080 Passe-fils *grommet |
293720080 |
US $6.21 |
||
|
37
|
37
710001346 Interrupteur *switchIncludes 37 to 40; |
710001346 |
US $74.41 |
||
|
38
|
38
409207400 Logement femel.*housing-female |
409207400 |
US $10.47 |
||
|
39
|
39
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
40
|
40
409207200 Verrou femelle *lock-female |
409207200 |
US $5.87 |
||
|
41
|
41
250000261 Torx-truss m/s gm6047m m6 x 16 |
250000261 |
US $10.44 |
||
|
42
|
42
270000141 Clip *clip |
270000141 |
US $59.50 |
||
|
43
|
43
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
44
|
44
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
