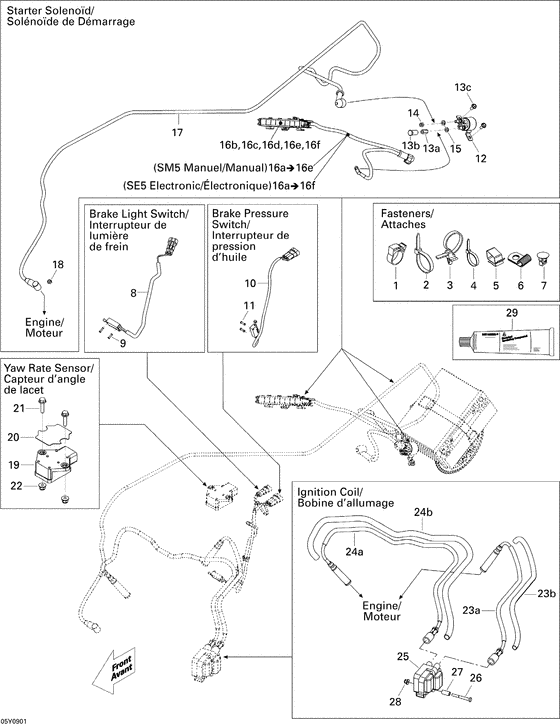

10- electrical accessories se5 electronic Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293650082 Bride serrage *hose clamp |
293650082 |
US $27.30 |
||
|
2
|
2
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
3
|
3
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
4
|
4
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
5
|
5
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
6
|
6
415052400 Attache collier*open clamp |
415052400 |
US $35.22 |
||
|
7
|
7
293750044 Ancrage tie rap*mount-tie rap |
293750044 |
US $2.01 |
||
|
8
|
8
710001357 Inter. ass e *switch ass y |
710001357 |
US $46.89 |
||
|
9
|
9
293150150 Rivet-pop *rivet-pop |
293150150 |
US $2.92 |
||
|
10
|
10
710001379 Inter. ass e *switch ass y |
710001379 |
US $47.75 |
||
|
11
|
11
293150150 Rivet-pop *rivet-pop |
293150150 |
US $2.92 |
||
|
12
|
12
710001364 Solenoide dem. *relay-starter |
710001364 |
US $58.48 |
||
|
13a
|
13a
250100117 Hexagon coupling nut m6 x 1.0 x 18 |
250100117 |
US $8.04 |
||
|
13b
|
13b
710001610 Capuchon *boot |
710001610 |
US $10.34 |
||
|
13c
|
13c
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
14
|
14
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
15
|
15
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
16c
|
16c
710001200 Fusible 30 amp.*fuse-30 amp. |
710001200 |
US $9.18 |
||
|
16d
|
16d
710001047 Fusible 40 amp.*fuse-40 amp. |
710001047 |
US $15.71 |
||
|
16e
|
16e
710001048 Fusible 50 amp.*fuse-50 amp. |
710001048 |
US $6.58 |
||
|
16f
|
16f
710001078 Fusible 20 amp.*fuse-20 amp.SE5 Electronic; |
710001078 |
US $2.47 |
||
|
16a
|
16a
710001641
Cable positif *cable-positive
SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G; |
710001641 |
— | ||
|
16a
|
16a
710001197
Cable positif *cable-positive
SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29N; |
710001197 |
— | ||
|
16b
|
16b
710001046 Fusible 25 amp.*fuse-25 amp. |
710001046 |
US $5.07 |
||
|
17
|
17
710000794 Cable positif *cable-positive |
710000794 |
US $53.01 |
||
|
18
|
18
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
19
|
19
710000790
Capt ang lacet *yaw rate sens.
|
710000790 |
— | ||
|
20
|
20
293830127 Tampon amort. *bumper-rubber |
293830127 |
US $7.24 |
||
|
21
|
21
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
22
|
22
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
23a
|
23a
707000399 Cable ass. *cable-assy |
707000399 |
US $73.27 |
||
|
23b
|
23b
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
24a
|
24a
707000518 Cable ass. *cable-assy |
707000518 |
US $75.07 |
||
|
24b
|
24b
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
25
|
25
278001546 Bobine allumage*coil-ignition |
278001546 |
US $172.60 |
||
|
26
|
26
207065044 Screw-hex.cap din.931 |
207065044 |
US $19.60 |
||
|
27
|
27
512059812 Entretoise *spacer |
512059812 |
US $10.17 |
||
|
28
|
28
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
29
|
29
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
