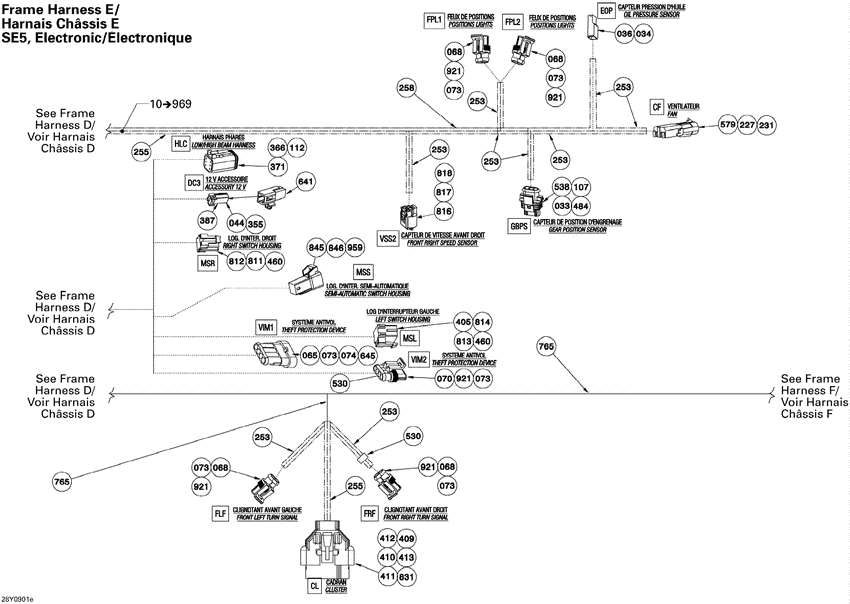

10- frame harness e_se5 electronic Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
515176382
Cablage chassis*harness-frame
Includes 10 to 969, A29H, A29J, A29K, A29L, A29M, A29N; |
515176382 |
— | ||
|
10
|
10
710001653 Cablage chassis*harness-frameIncludes 10 to 969, A29B, A29C, A29D, A29E, A29F, A29G; |
710001653 |
US $723.13 |
||
|
21
|
21
409004800 Cosse femelle *terminal-femal |
409004800 |
US $83.80 |
||
|
33
|
33
278000999 Joint de fil *seal-wire |
278000999 |
US $21.15 |
||
|
34
|
34
409010100 Cosse femelle *terminal-femal. |
409010100 |
US $36.20 |
||
|
36
|
36
409010400 Logement femel.*housing-female |
409010400 |
US $48.80 |
||
|
44
|
44
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
61
|
61
409012900 Cosse male *terminal-male |
409012900 |
US $42.30 |
||
|
62
|
62
278001014 Cosse femelle *terminal-femal |
278001014 |
from US $6.09 |
||
|
65
|
65
710000576 Housing, 4circuits |
710000576 |
US $18.85 |
||
|
68
|
68
409209500 Logement femel.*housing-femal. |
409209500 |
from US $15.23 |
||
|
69
|
69
409209600 Logement femel.*housing-femal. |
409209600 |
US $39.95 |
||
|
70
|
70
409209700 Logement femel.*housing-femal. |
409209700 |
US $18.12 |
||
|
73
|
73
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
74
|
74
409013700 Bouchon *plug |
409013700 |
US $29.35 |
||
|
107
|
107
278000997 Bloc 3 circ.mal*housing-tab |
278000997 |
US $21.42 |
||
|
112
|
112
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
120
|
120
409207300 Logement femel.*housing-female |
409207300 |
US $10.85 |
||
|
124
|
124
278001473 Bloc 4 circ.mal*housing-tab |
278001473 |
US $30.19 |
||
|
127
|
127
409207600 Verrou male *lock-male |
409207600 |
US $42.30 |
||
|
132
|
132
409207100 Verrou femelle *lock-female |
409207100 |
US $3.11 |
||
|
136
|
136
278001744 Cale 8 circ.mal*wedge-8 ways m |
278001744 |
US $5.20 |
||
|
186
|
186
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
188
|
188
409902000 Gaine low temp.vinyl |
409902000 |
US $11.49 |
||
|
196
|
196
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
203
|
203
278001113 Bloc 2 circ.mal*housing-tab |
278001113 |
US $84.60 |
||
|
227
|
227
409004300 Cosse male *terminal-male |
409004300 |
US $36.20 |
||
|
231
|
231
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
253
|
253
515175442
Gaine *housing
|
515175442 |
— | ||
|
254
|
254
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
255
|
255
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
256
|
256
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
257
|
257
409901600 Gaine *tubing |
409901600 |
US $94 |
||
|
258
|
258
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
260
|
260
515175319 Gaine 22mm *tubing-22mm |
515175319 |
US $14.67 |
||
|
301
|
301
409012700 Diode *diode |
409012700 |
US $12.22 |
||
|
331
|
331
710000244 Gaine *protector tube |
710000244 |
US $5.27 |
||
|
339
|
339
278001012 Bloc 1 circ.mal*housing-tab |
278001012 |
US $84.60 |
||
|
355
|
355
515175658 Logement femel.*housing-female |
515175658 |
US $18.12 |
||
|
359
|
359
515175666 Logement male *housing-male |
515175666 |
US $15.74 |
||
|
365
|
365
515175672 Bloc 4 circ.mal*housing-tab |
515175672 |
US $13.60 |
||
|
366
|
366
515175673 Bloc 6 circ.mal*housing-tab |
515175673 |
US $15.74 |
||
|
370
|
370
515175677 Cale 4 circ.mal*wedge-4 ways m |
515175677 |
US $6.26 |
||
|
371
|
371
515175678 Cale 6 circ.mal*wedge-6 ways m |
515175678 |
US $7.24 |
||
|
387
|
387
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
388
|
388
278001750 Cosse femelle *terminal-femal |
278001750 |
US $15.55 |
||
|
391
|
391
278001751 Bloc 41circ.mal*housing-tab |
278001751 |
US $24.11 |
||
|
405
|
405
515175808 Cosse femelle *terminal-femal. |
515175808 |
US $62.60 |
||
|
409
|
409
515175812 Bouchon *plug |
515175812 |
US $14.30 |
||
|
410
|
410
515175801 Logement femel.*housing-female |
515175801 |
US $21.72 |
||
|
411
|
411
515175802 Boitier *retainer block |
515175802 |
US $12.29 |
||
|
412
|
412
515175803 Joint de fil *seal-wire |
515175803 |
US $40.60 |
||
|
413
|
413
515175804 Logement femel.*housing-female |
515175804 |
US $73.10 |
||
|
415
|
415
515175806 Cosse femelle *terminal-femal. |
515175806 |
US $33.50 |
||
|
420
|
420
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
426
|
426
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
437
|
437
515175886 Joint *seal |
515175886 |
US $6.26 |
||
|
438
|
438
515175883 Loquet *latch |
515175883 |
US $7.31 |
||
|
439
|
439
515175884 Verrou *lock |
515175884 |
US $6.26 |
||
|
440
|
440
515175885 Couvercle *cover |
515175885 |
US $6.26 |
||
|
460
|
460
515175941 Cosse femelle *terminal-femal. |
515175941 |
US $3.54 |
||
|
475
|
475
710000643 Joint *seal |
710000643 |
US $58.70 |
||
|
476
|
476
278001482 Joint de fil *seal |
278001482 |
US $8.46 |
||
|
484
|
484
415128501 Joint de fil *seal |
415128501 |
US $2.57 |
||
|
524
|
524
512059668
Gaine thermo. *shrink tubing
|
512059668 |
— | ||
|
538
|
538
278001210 Cosse femelle *terminal-femal |
278001210 |
US $52.35 |
||
|
579
|
579
710000504 Joint de fil *wire seal |
710000504 |
US $5.87 |
||
|
596
|
596
710000670 Capuchon *cap |
710000670 |
US $10.47 |
||
|
641
|
641
710000667 Logement 2 pos *housing 2 pos |
710000667 |
US $48.80 |
||
|
645
|
645
515176164 Cosse male *terminal-male |
515176164 |
US $9.01 |
||
|
652
|
652
515176221 Logement femel.*housing-female |
515176221 |
US $18.02 |
||
|
653
|
653
515176222 Joint de fil *seal-wire |
515176222 |
US $16.92 |
||
|
654
|
654
515176223 Logement pt fem*housing-fem te |
515176223 |
US $15.64 |
||
|
655
|
655
515176224 Support termina*terminal retai |
515176224 |
US $18.12 |
||
|
663
|
663
710000739
Relais *relay
|
710000739 |
— | ||
| replacement | |||||
|
663
|
663
515176774 Relay, 30 amp |
515176774 |
US $22.39 |
||
|
666
|
666
710000742 Mini-fusible *little fuse |
710000742 |
US $9.67 |
||
|
668
|
668
710000744 Mini-fusible *little fuse |
710000744 |
US $9.67 |
||
|
669
|
669
710000745 Mini-fusible *little fuse |
710000745 |
US $9.67 |
||
|
675
|
675
710000660
Boitier ass. *base ass y
|
710000660 |
— | ||
|
684
|
684
710000781 Pince fusible *fuse puller |
710000781 |
US $10.80 |
||
|
702
|
702
710000836 Cosse femelle *terminal-femal. |
710000836 |
US $38.95 |
||
|
703
|
703
710000837 Cosse femelle *terminal-femal. |
710000837 |
US $74.10 |
||
|
706
|
706
710000840 Bouchon *cap |
710000840 |
US $7.26 |
||
|
732
|
732
710000877 Terminal *terminal |
710000877 |
US $48.80 |
||
|
734
|
734
710000879 Logement *housing |
710000879 |
US $28.25 |
||
|
736
|
736
710000881 Joint *seal |
710000881 |
US $19.47 |
||
|
737
|
737
710000882 Bouchon *cap |
710000882 |
US $12.29 |
||
|
750
|
750
710000913 Terminal rond *ring terminal |
710000913 |
US $7.24 |
||
|
766
|
766
278002164 Cosse femelle *terminal-femal. |
278002164 |
US $36.55 |
||
|
770
|
770
710001008 Mini-fusible *little fuse |
710001008 |
US $5.07 |
||
|
773
|
773
710001026 Couvercle fuse *fuse cover |
710001026 |
US $24.34 |
||
|
784
|
784
710001050 Terminal male *terminal-male |
710001050 |
US $5.17 |
||
|
785
|
785
710001051 Terminal male *terminal-male |
710001051 |
US $5.20 |
||
|
787
|
787
710001053 Porte fusible *holder-fuse |
710001053 |
US $7.24 |
||
|
788
|
788
710001054 Porte fusible *holder-fuse |
710001054 |
US $10.35 |
||
|
789
|
789
710001055 Porte fusible *holder-fuse |
710001055 |
US $10.35 |
||
|
790
|
790
710001057 Porte fusible *holder-fuse |
710001057 |
US $10.35 |
||
|
805
|
805
710001132 Logement *housing |
710001132 |
US $10.85 |
||
|
806
|
806
710001133 Verrou *lock |
710001133 |
US $5.87 |
||
|
807
|
807
710001134 Terminal femel *terminal-femal |
710001134 |
US $9.61 |
||
|
808
|
808
710001138 Logement *housing |
710001138 |
US $27.49 |
||
|
809
|
809
710001139 Verrou *lock |
710001139 |
US $14.54 |
||
|
810
|
810
710001140 Terminal femel *terminal-femal |
710001140 |
US $10.35 |
||
|
811
|
811
710001124 Logement *housing |
710001124 |
US $15.73 |
||
|
812
|
812
710001125 Verrou *lock |
710001125 |
US $7.31 |
||
|
813
|
813
710001126 Logement *housing |
710001126 |
US $10.35 |
||
|
814
|
814
710001127 Verrou *lock |
710001127 |
US $5.17 |
||
|
815
|
815
710001121 Terminal femel.*terminal-femal |
710001121 |
US $10.35 |
||
|
816
|
816
710001116 Logement *housing |
710001116 |
US $23.41 |
||
|
817
|
817
710001117 Terminal femel.*terminal-femal |
710001117 |
US $10.35 |
||
|
818
|
818
710001118 Joint de fil *seal-wire |
710001118 |
US $1.56 |
||
|
820
|
820
710001128 Logement *housing |
710001128 |
US $14.54 |
||
|
822
|
822
710001122 Logement *housing |
710001122 |
US $29.09 |
||
|
823
|
823
710001123 Logement *housing |
710001123 |
US $74.41 |
||
|
824
|
824
710001136 Logement *housing |
710001136 |
US $14.28 |
||
|
825
|
825
710001135 Joint de fil *seal-wire |
710001135 |
US $5.20 |
||
|
826
|
826
710001137 Terminal femel *terminal-femal |
710001137 |
US $5.87 |
||
|
827
|
827
710001119 Terminal femel.*terminal-femal |
710001119 |
US $7.24 |
||
|
828
|
828
710001120 Logement *housing |
710001120 |
US $14.54 |
||
|
830
|
830
710001130 Terminal femel *terminal-femal |
710001130 |
US $5.17 |
||
|
831
|
831
710001131 Terminal femel *terminal-femal |
710001131 |
US $9.76 |
||
|
835
|
835
710001141 Joint de fil *seal-wire |
710001141 |
US $7.24 |
||
|
845
|
845
710001155 Logement *housing |
710001155 |
US $14.67 |
||
|
846
|
846
710001156 Verrou *lock |
710001156 |
US $7.31 |
||
|
847
|
847
710001157 Logement *housing |
710001157 |
US $19.28 |
||
|
849
|
849
710001159 Joint de fil *seal-wire |
710001159 |
US $8.21 |
||
|
850
|
850
710001160 Terminal femel *terminal-femal |
710001160 |
US $8.21 |
||
|
851
|
851
710001161 Logement *housing |
710001161 |
US $12.22 |
||
|
852
|
852
710001162 Verrou *lock |
710001162 |
US $4.47 |
||
|
853
|
853
710001163 Joint de fil *seal-wire |
710001163 |
US $9.61 |
||
|
854
|
854
710001164 Terminal femel *terminal-femal |
710001164 |
US $48.80 |
||
|
875
|
875
710000968 Decal fus. rela*logo fuse, rel |
710000968 |
US $4.13 |
||
|
880
|
880
710001114 Capuchon *cap |
710001114 |
US $19.41 |
||
|
894
|
894
710001225 Bouchon *cap |
710001225 |
US $9.71 |
||
|
915
|
915
710001315 Logement *housing |
710001315 |
US $15.73 |
||
|
921
|
921
710001340 Cosse femelle *terminal-femal |
710001340 |
US $7.67 |
||
|
928
|
928
710001348 Terminal male *terminal-male |
710001348 |
US $13.45 |
||
|
933
|
933
710001338 Capuchon *cap |
710001338 |
US $14.54 |
||
|
946
|
946
278002172 Coussinet *foam |
278002172 |
US $7.26 |
||
|
959
|
959
710001420 Terminal male *terminal-male |
710001420 |
US $5.20 |
||
|
969
|
969
710001463 Joint de fil *seal-wire |
710001463 |
US $5.20 |
||
