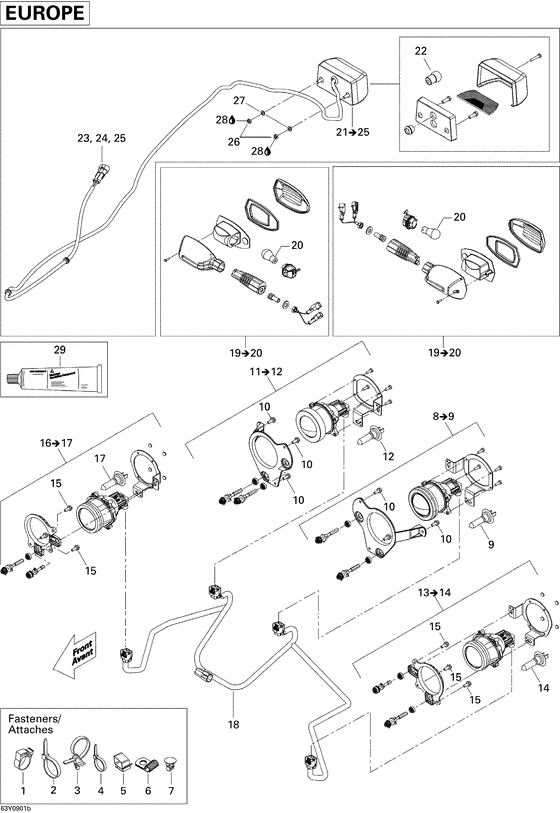

10- lighting system europe Diagram Bombardier Spyder
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293650082 Bride serrage *hose clamp |
293650082 |
US $27.30 |
||
|
2
|
2
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
3
|
3
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
4
|
4
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
5
|
5
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
6
|
6
415052400 Attache collier*open clamp |
415052400 |
US $35.22 |
||
|
7
|
7
293750044 Ancrage tie rap*mount-tie rap |
293750044 |
US $2.01 |
||
|
8
|
8
710001601 Phare haute ass*high beam assIncludes 8 to 9; |
710001601 |
US $140.73 |
||
|
9
|
9
415129249 Ampoule halogen*bulb-hal.hb3 |
415129249 |
US $44.83 |
||
|
10
|
10
207561644 Screw-hex.flange din.6921 s.grip |
207561644 |
US $61.25 |
||
|
11
|
11
710001602 Phare haute ass*high beam assIncludes 11 to 12; |
710001602 |
US $140.73 |
||
|
12
|
12
415129249 Ampoule halogen*bulb-hal.hb3 |
415129249 |
US $44.83 |
||
|
13
|
13
710001603 Phare basse ass*low beam assIncludes 13 to 14; |
710001603 |
US $140.73 |
||
|
14
|
14
415129249 Ampoule halogen*bulb-hal.hb3 |
415129249 |
US $44.83 |
||
|
15
|
15
207561644 Screw-hex.flange din.6921 s.grip |
207561644 |
US $61.25 |
||
|
16
|
16
710001604 Phare basse ass*low beam assIncludes 16 to 17; |
710001604 |
US $140.73 |
||
|
17
|
17
415129249 Ampoule halogen*bulb-hal.hb3 |
415129249 |
US $44.83 |
||
|
18
|
18
710000793 Harnais phare *beam harness |
710000793 |
US $74.41 |
||
|
19
|
19
710000707 Clignotant *rear flasherIncludes 19 to 20; |
710000707 |
US $58.09 |
||
|
20
|
20
715900043 Ampoule*bulb 12v/21w |
715900043 |
US $18.17 |
||
|
21
|
21
710000709 Lumiere immatri*licence lightIncludes 21 to 25; |
710000709 |
US $61.15 |
||
|
22
|
22
415129261 Ampoule *bulb |
415129261 |
US $3.81 |
||
|
23
|
23
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
24
|
24
409209400 Logement male *housing-male |
409209400 |
US $16.92 |
||
|
25
|
25
409012900 Cosse male *terminal-male |
409012900 |
US $42.30 |
||
|
26
|
26
232051600 Nut-hexagonal din.934a2 |
232051600 |
US $7.40 |
||
|
27
|
27
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
28
|
28
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
29
|
29
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
