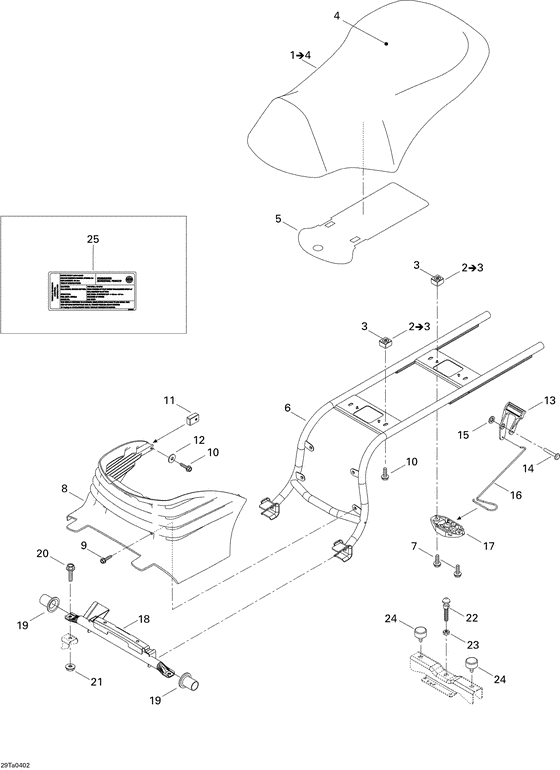

09- seat Diagram Bombardier Traxter
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
708000232
Siege assemble *seat-assy.
INCLUDES ITEMS 1 TO 4; |
708000232 |
— | ||
|
2
|
2
708000046 Logement ecrou *housing-nut asINCLUDES ITEMS 2 TO 3; |
708000046 |
US $7.31 |
||
|
3
|
3
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
4
|
4
708000233
Housse de siege*seat cover
|
708000233 |
— | ||
|
5
|
5
708000160
Feuille reflect*reflecting sheet
|
708000160 |
— | ||
|
6
|
6
708000003
Support siege *support-seat
|
708000003 |
— | ||
|
7
|
7
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
8
|
8
705000879
Cache moteur *engine cover
|
705000879 |
— | ||
|
9
|
9
210261080 Screw-forming hex.hd.fl.din.7500d |
210261080 |
US $16.30 |
||
|
10
|
10
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
11
|
11
708000042
Logement ecrou *housing-nut
|
708000042 |
— | ||
|
12
|
12
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
13
|
13
708000010 Levier loquet *lever-latch |
708000010 |
US $9.71 |
||
|
14
|
14
293150062 Rivet en acier *rivet-solid |
293150062 |
US $14.50 |
||
|
15
|
15
389804300 Ecrou pression *push-nut |
389804300 |
US $7.10 |
||
|
16
|
16
708000015 Ressort *spring |
708000015 |
US $16.29 |
||
|
17
|
17
708000034
Base loquet *base-latch
|
708000034 |
— | ||
|
18
|
18
708000044
Pivot siege *pivot-seat
|
708000044 |
— | ||
|
19
|
19
708000019 Coussinet siege*bushing-seat |
708000019 |
US $8.13 |
||
|
20
|
20
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
21
|
21
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
22
|
22
291000945 Ergot de siege *stud-seat |
291000945 |
US $20.38 |
||
|
23
|
23
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
24
|
24
708000006 Butee caout. *stopper-rubber |
708000006 |
US $10.47 |
||
|
25
|
25
704900625
Etiquette emis.*label-emission
|
704900625 |
— |
