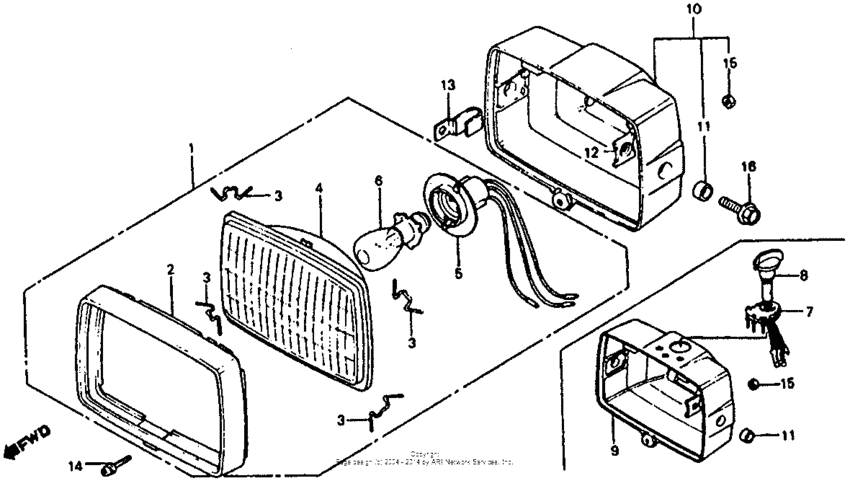

Headlight 81-82 Diagram Honda ATC ATC110
- Model code
- ATC110 A
- Engine Capacity
- 110
- Year
- 1982
- Sales region
- USA
- Frame
- JH3TB020*CC300001 - JH3TB020*CC352101
- Model
- ATC110
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-VM4-003
Light assy head
|
33100-VM4-003 |
— | ||
|
2
|
2
33101-943-003
Rim,headlight
|
33101-943-003 |
— | ||
|
3
|
3
33108-943-003
Spg.,unit holder
|
33108-943-003 |
— | ||
|
4
|
4
33120-943-003
Unit,headlight
|
33120-943-003 |
— | ||
|
5
|
5
33130-958-013
Socket,headlight
|
33130-958-013 |
— | ||
|
6
|
6
34901-HC3-003 Bulb (12v45/45w) |
34901-HC3-003 |
from US $6.94 |
||
|
10
|
10
61301-958-671ZA
Case headli*r109*
|
61301-958-671ZA |
— | ||
|
11
|
11
61302-229-300 Collar,light.case |
61302-229-300 |
US $2.66 |
||
|
12
|
12
61303-105-000 Nut,light case |
61303-105-000 |
from US $3.80 |
||
|
13
|
13
91405-689-000 Clip, wire harness |
91405-689-000 |
from US $3.16 |
||
|
14
|
14
93700-050-080-B
Screw,oval,5x8
|
93700-050-080-B |
— | ||
|
15
|
15
94001-050-800-S NutHEX., 5MM |
94001-050-800-S |
from US $0.37 |
||
|
16
|
16
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
from US $0.59 |
||
| replacement | |||||
|
16
|
16
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
16
|
16
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
