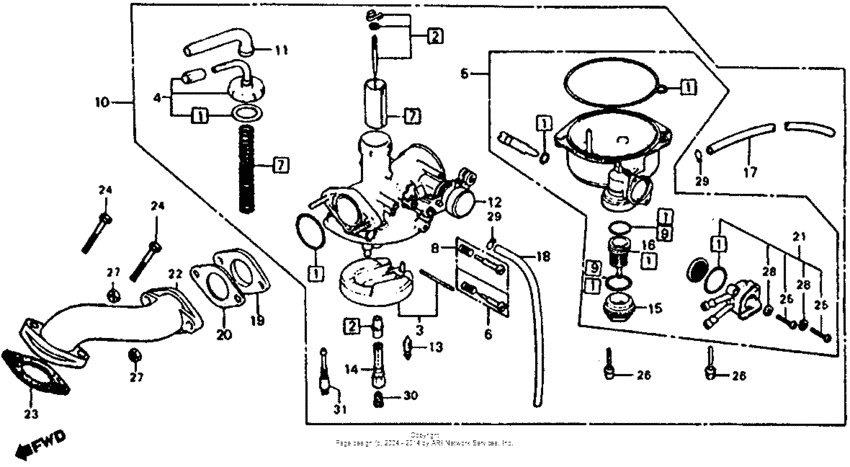

Carburetor 84-85 Diagram Honda ATC ATC110
- Model code
- ATC110 A
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB020*EC500001 -
- Model
- ATC110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-943-305 Gasket set |
16010-943-305 |
from US $23.66 |
||
|
2
|
2
16012-968-003
Needle set, jet
|
16012-968-003 |
— | ||
|
3
|
3
16013-883-005 Float set |
16013-883-005 |
from US $19.31 |
||
|
4
|
4
16014-943-801
Top set
|
16014-943-801 |
— | ||
|
5
|
5
16015-968-003
Chamber set, float
|
16015-968-003 |
— | ||
|
6
|
6
16016-459-761
Screw set,a
|
16016-459-761 |
— | ||
|
7
|
7
16022-943-003
Valve set,throt
|
16022-943-003 |
— | ||
|
8
|
8
16028-GC8-004 Screw set b |
16028-GC8-004 |
from US $10.95 |
||
|
9
|
9
16040-GB0-911 Gasket b set |
16040-GB0-911 |
US $10.66 |
||
|
10
|
10
16100-943-804
Carburetor assy
|
16100-943-804 |
— | ||
|
11
|
11
16118-121-014
Cap, cable sealing
|
16118-121-014 |
— | ||
|
12
|
12
16148-141-881 Cap, choke dust |
16148-141-881 |
from US $3.48 |
||
|
13
|
13
16155-883-005 Valve comp., float |
16155-883-005 |
from US $17.57 |
||
|
14
|
14
16165-943-003 Holder,needle jet |
16165-943-003 |
US $21.79 |
||
|
15
|
15
16175-GB0-911 Cup, fuel strainer |
16175-GB0-911 |
US $19.45 |
||
|
16
|
16
16176-GB0-911 Cup, filter |
16176-GB0-911 |
from US $11.64 |
||
|
17
|
17
16199-435-771 Tube, rubber |
16199-435-771 |
from US $6.22 |
||
|
18
|
18
16199-943-003
Tube, air vent
|
16199-943-003 |
— | ||
|
19
|
19
16211-943-306 Insulator |
16211-943-306 |
from US $9.33 |
||
|
20
|
20
16212-943-306 Gasket, carburetor |
16212-943-306 |
from US $3.70 |
||
|
22
|
22
17111-943-000
Pipe,in.
|
17111-943-000 |
— | ||
|
23
|
23
17119-046-306 Gasket, in. pipe |
17119-046-306 |
from US $3.89 |
||
|
24
|
24
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
25
|
25
93500-030120H Screw, pan, 3x12 |
93500-030120H |
from US $0.37 |
||
|
26
|
26
93892-040-140-8 Screw-washer4X14 |
93892-040-140-8 |
from US $0.44 |
||
|
27
|
27
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
28
|
28
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
29
|
29
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
30
|
30
99101-HP20820 Jet (#82) |
99101-HP20820 |
from US $5.33 |
||
|
31
|
31
99103-165-0350 Jet comp,slow #35 |
99103-165-0350 |
from US $6.51 |
