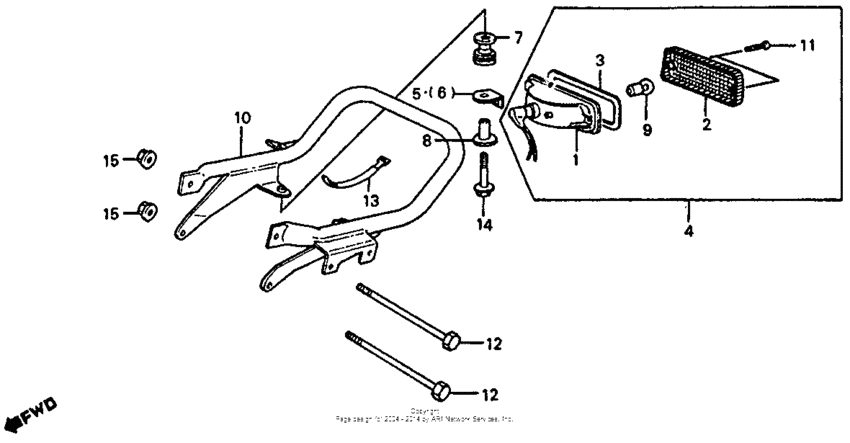

Taillight + carry pipe 84-85 Diagram Honda ATC ATC110
- Model code
- ATC110 A
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB020*EC500001 -
- Model
- ATC110
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33300-943-801
Housing,taillight
|
33300-943-801 |
— | ||
|
2
|
2
33302-958-013 Lens, taillight |
33302-958-013 |
from US $14.08 |
||
|
3
|
3
33303-958-003
Gasket
|
33303-958-003 |
— | ||
|
4
|
4
33700-943-801
Taillight assy.
|
33700-943-801 |
— | ||
|
5
|
5
33705-943-000
Brkt, r. taillight
|
33705-943-000 |
— | ||
|
6
|
6
33706-943-000
Brkt, l. taillight
|
33706-943-000 |
— | ||
|
7
|
7
33731-958-670
Rubber
|
33731-958-670 |
— | ||
|
8
|
8
33732-958-671
Collar
|
33732-958-671 |
— | ||
|
9
|
9
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
9
|
9
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
10
|
10
81200-968-000
Rack, carrier
|
81200-968-000 |
— | ||
|
11
|
11
90140-943-010 Screw, pan (4x28) |
90140-943-010 |
US $1.68 |
||
|
12
|
12
90196-918-000
Bolt, hex. (10x180)
|
90196-918-000 |
— | ||
|
13
|
13
91406-729-000 Clip, head |
91406-729-000 |
US $5.25 |
||
|
14
|
14
93482-0603508 Bolt-washer (6x35) |
93482-0603508 |
from US $0.59 |
||
|
15
|
15
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
