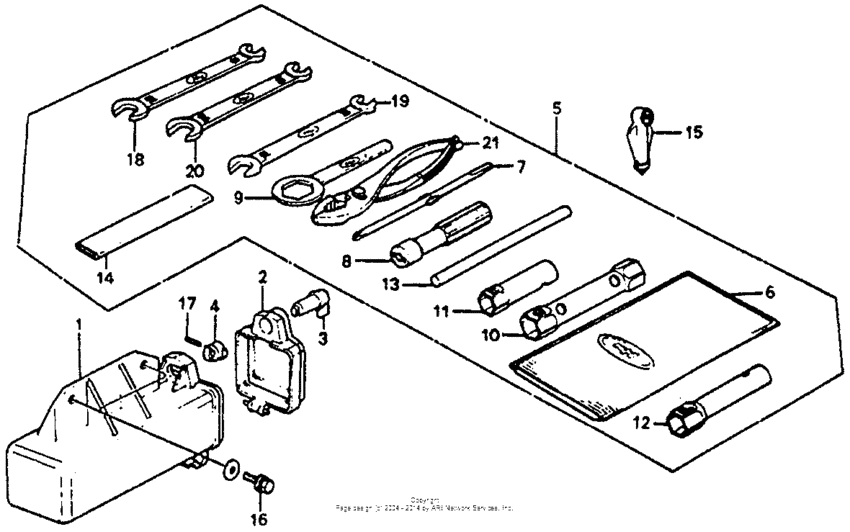

Tools 84-85 Diagram Honda ATC ATC110
- Model code
- ATC110 A
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB020*EC500001 -
- Model
- ATC110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83501-968-000
Box, tool
|
83501-968-000 |
— | ||
|
2
|
2
83504-968-000 Cap, tool box |
83504-968-000 |
US $24.40 |
||
|
3
|
3
83507-965-000
Body, knob
|
83507-965-000 |
— | ||
|
4
|
4
83508-965-000
Stopper, key body
|
83508-965-000 |
— | ||
|
5
|
5
89000-943-000
Tool set
|
89000-943-000 |
— | ||
|
6
|
6
89101-965-003
Bag, tool (170)
|
89101-965-003 |
— | ||
| replacements | |||||
|
6
|
6
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
|
6
|
6
89101-MC7-000 Tool bag |
89101-MC7-000 |
from US $6.81 |
||
|
7
|
7
89102-538-000 Driver, SCREW(NO.2 + -) |
89102-538-000 |
from US $2.37 |
||
|
8
|
8
89103-538-000 Grip |
89103-538-000 |
US $6.78 |
||
|
10
|
10
89212-028-000
Spanner,box 17mm
|
89212-028-000 |
— | ||
|
12
|
12
89216-074-000
Wrench,box,p18x19
|
89216-074-000 |
— | ||
|
12
|
12
89216-107-000
Wrench,box,p18x19
|
89216-107-000 |
— | ||
|
12
|
12
99004-18190 Wrench, box (p18x19) |
99004-18190 |
from US $4.29 |
||
|
13
|
13
9900501000 Bar a, handle |
9900501000 |
from US $1.48 |
||
|
15
|
15
89301-918-672
Gauge, tire
(Optional). |
89301-918-672 |
— | ||
|
16
|
16
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
17
|
17
9430520141 Pin, spring (2x14) |
9430520141 |
from US $0.74 |
||
|
18
|
18
9900108120 Spanner, 8x12 |
9900108120 |
from US $3.11 |
||
|
19
|
19
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
20
|
20
9900110140 Spanner, 10x14 |
9900110140 |
from US $3.55 |
||
|
21
|
21
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
21
|
21
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
