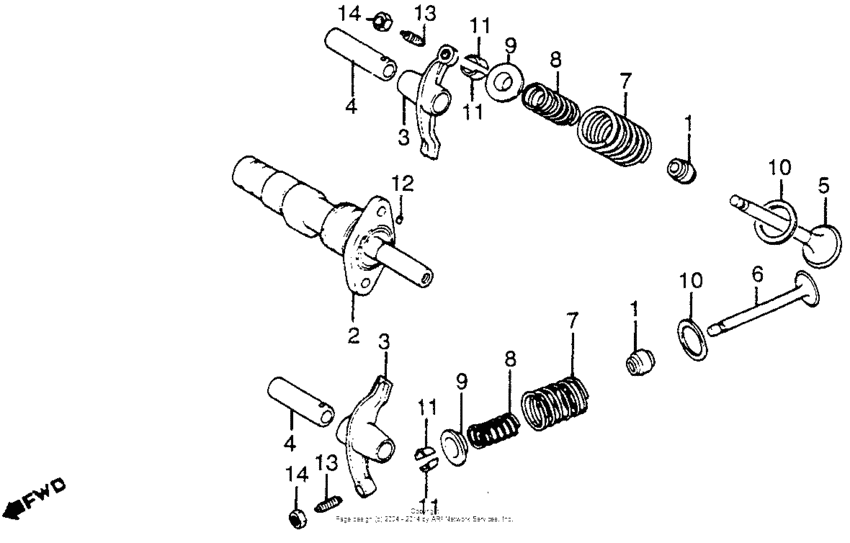

Camshaft + valve Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12208-413-003 Seal, valve stem (arai) |
12208-413-003 |
from US $7.84 |
||
|
2
|
2
14101-459-030 Camshaft |
14101-459-030 |
US $78.86 |
||
|
3
|
3
14431-459-000 Arm, Valve Rocker |
14431-459-000 |
US $22.26 |
||
|
4
|
4
14451-459-000
Shaft
|
14451-459-000 |
— | ||
|
5
|
5
14711-459-000 Valve, in |
14711-459-000 |
US $32.50 |
||
|
6
|
6
14721-459-000 Valve, ex |
14721-459-000 |
from US $42.43 |
||
|
7
|
7
14751-459-000 Spring, valve |
14751-459-000 |
US $5.03 |
||
|
8
|
8
14761-459-000 Spring, valve |
14761-459-000 |
from US $4.37 |
||
|
9
|
9
14771-459-000 Retainer, vlv spr |
14771-459-000 |
US $8.73 |
||
|
10
|
10
14775-459-000 Seat, valve spring |
14775-459-000 |
US $4 |
||
|
11
|
11
14781-107-003 Cotter, valve (sanko) |
14781-107-003 |
from US $3.18 |
||
|
12
|
12
30905-216-000 Pin (3x5.2) |
30905-216-000 |
from US $2.72 |
||
|
13
|
13
90012-333-000 Screw, tappet adjusting |
90012-333-000 |
from US $3.03 |
||
|
14
|
14
90206-001-000 Nut, tappet adjusting |
90206-001-000 |
from US $2.41 |
