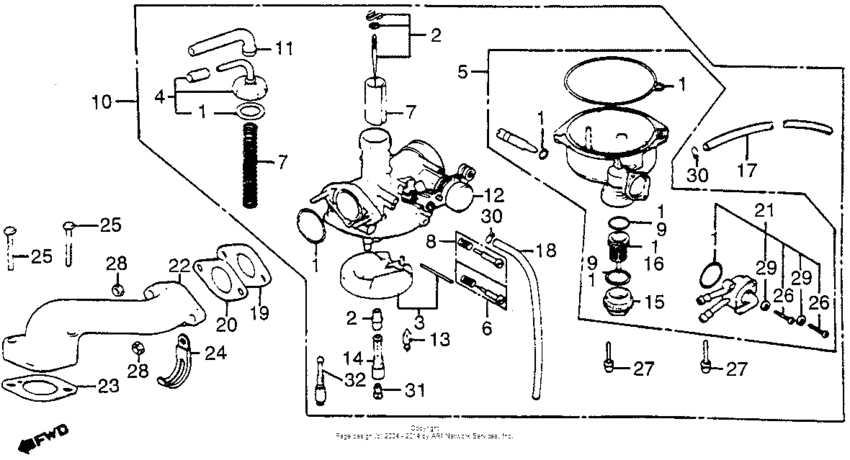

Carburetor Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-943-305 Gasket set |
16010-943-305 |
from US $23.66 |
||
|
2
|
2
16012-968-003
Needle set, jet
|
16012-968-003 |
— | ||
|
3
|
3
16013-883-005 Float set |
16013-883-005 |
from US $19.31 |
||
|
4
|
4
16014-943-801
Top set
|
16014-943-801 |
— | ||
|
5
|
5
16015-968-003
Chamber set, float
|
16015-968-003 |
— | ||
|
6
|
6
16016-GB5-305
Screw set, a
|
16016-GB5-305 |
— | ||
|
6
|
6
16016-GB5-681 Screw set, a |
16016-GB5-681 |
from US $12 |
||
|
7
|
7
16022-VM6-004
Valve set, throttle
|
16022-VM6-004 |
— | ||
|
8
|
8
16028-GC8-004 Screw set b |
16028-GC8-004 |
from US $10.95 |
||
|
9
|
9
16040-GB0-911 Gasket b set |
16040-GB0-911 |
US $10.66 |
||
|
10
|
10
16100-VM6-024
Carburetor assy.
|
16100-VM6-024 |
— | ||
|
11
|
11
16118-121-014
Cap, cable sealing
|
16118-121-014 |
— | ||
|
12
|
12
16148-141-881 Cap, choke dust |
16148-141-881 |
from US $3.48 |
||
|
13
|
13
16155-883-005 Valve comp., float |
16155-883-005 |
from US $17.57 |
||
|
14
|
14
16165-943-013
Holder, needle jet
|
16165-943-013 |
— | ||
|
15
|
15
16175-GB0-911 Cup, fuel strainer |
16175-GB0-911 |
US $19.45 |
||
|
16
|
16
16176-GB0-911 Cup, filter |
16176-GB0-911 |
from US $11.64 |
||
|
17
|
17
16199-435-771 Tube, rubber |
16199-435-771 |
from US $6.22 |
||
|
18
|
18
16199-943-003
Tube, air vent
|
16199-943-003 |
— | ||
|
19
|
19
16211-943-306 Insulator |
16211-943-306 |
from US $9.33 |
||
|
20
|
20
16212-943-306 Gasket, carburetor |
16212-943-306 |
from US $3.70 |
||
|
22
|
22
17111-968-000
Pipe, inlet
|
17111-968-000 |
— | ||
|
23
|
23
17119-088-831 Gasket, in. pipe |
17119-088-831 |
from US $2.96 |
||
| replacement | |||||
|
23
|
23
17119-088-832 Gasket, in. pipe |
17119-088-832 |
US $6.95 |
||
|
24
|
24
90651-MA6-720 BandHARNESS |
90651-MA6-720 |
from US $3.26 |
||
|
25
|
25
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
26
|
26
93500-030120H Screw, pan, 3x12 |
93500-030120H |
from US $0.37 |
||
|
27
|
27
93892-040-140-8 Screw-washer4X14 |
93892-040-140-8 |
from US $0.44 |
||
|
28
|
28
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
29
|
29
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
30
|
30
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
31
|
31
99102-GHB0920 Jet, main (#92) |
99102-GHB0920 |
from US $4.88 |
||
|
32
|
32
99103-9430380 Jet, slow (#38) |
99103-9430380 |
US $6.51 |
||
