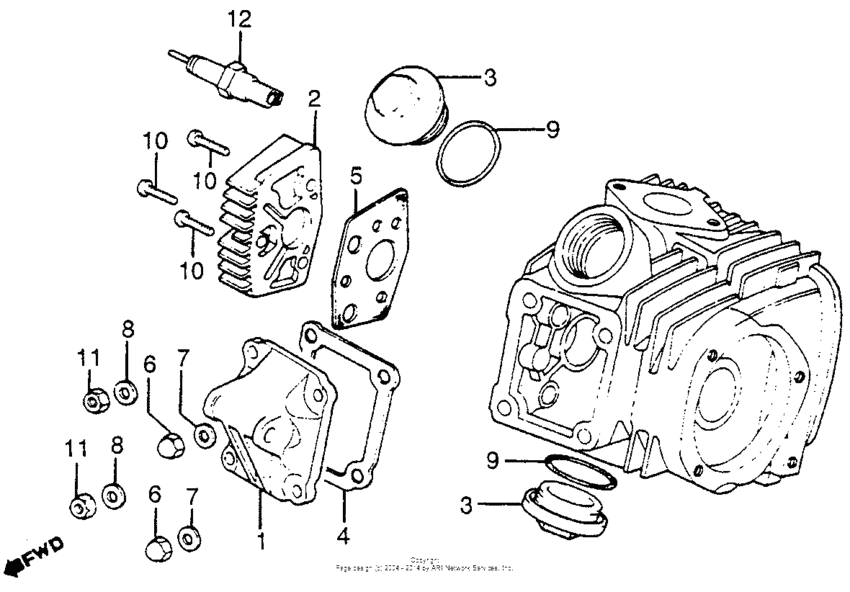

Cylinder head cover Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12301-968-000 Cover, cylinder head |
12301-968-000 |
US $38.91 |
||
|
2
|
2
12331-459-000 Cvr, r. cyl hd side |
12331-459-000 |
from US $16.90 |
||
|
3
|
3
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $11.03 |
||
|
4
|
4
12391-459-000 Gasket, cyl hd cvr |
12391-459-000 |
US $3.35 |
||
| replacements | |||||
|
4
|
4
12391-459-951 Gasket, cyl hd cvr |
12391-459-951 |
US $3.92 |
||
|
4
|
4
12391-459-950 Gasket, cyl hd cvr |
12391-459-950 |
from US $3.35 |
||
|
4
|
4
12391-459-306 Gasket |
12391-459-306 |
US $3.35 |
||
| replacements | |||||
|
4
|
4
12391-459-951 Gasket, cyl hd cvr |
12391-459-951 |
US $3.92 |
||
|
4
|
4
12391-459-950 Gasket, cyl hd cvr |
12391-459-950 |
from US $3.35 |
||
|
4
|
4
12391-459-951 Gasket, cyl hd cvr |
12391-459-951 |
US $3.92 |
||
|
5
|
5
12394-459-951 Gasket |
12394-459-951 |
US $4.29 |
||
|
6
|
6
90220-028-000 Nut, cap (8mm) |
90220-028-000 |
US $2.22 |
||
|
7
|
7
90442-028-000 Washer (8mm) |
90442-028-000 |
from US $1.92 |
||
|
8
|
8
90483-028-000 Washer, 8mm |
90483-028-000 |
from US $1.28 |
||
|
9
|
9
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $1.58 |
||
|
10
|
10
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
11
|
11
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
12
|
12
9806938719 Spark plug (dr8es-l) |
9806938719 |
from US $2.91 |
||
|
12
|
12
9806958726 S/plg (x24esr-u) |
9806958726 |
from US $2.82 |
||
