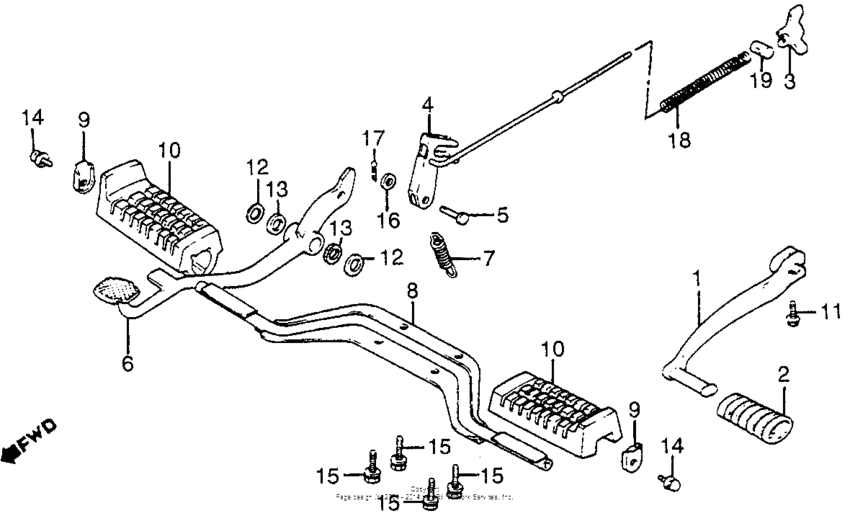

Footpegs + gearshift pedal + brake pedal Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-968-000
Pedal, gearshift
|
24700-968-000 |
— | ||
|
2
|
2
24781-371-000 Rubber |
24781-371-000 |
from US $3.47 |
||
|
3
|
3
43459-434-000 Nut, brake adjust |
43459-434-000 |
from US $7.55 |
||
|
4
|
4
43470-968-000
Lever, escape
|
43470-968-000 |
— | ||
|
5
|
5
43472-918-000
Shaft, escape
|
43472-918-000 |
— | ||
|
6
|
6
46500-968-000
Pedal, brake
|
46500-968-000 |
— | ||
|
7
|
7
46514-VM3-000
Spring, brake pedal
|
46514-VM3-000 |
— | ||
|
8
|
8
50610-943-305
Bar, step
|
50610-943-305 |
— | ||
|
9
|
9
50651-943-000
Stopper, step rubber
|
50651-943-000 |
— | ||
|
10
|
10
50661-968-000
Rubber, step
|
50661-968-000 |
— | ||
|
11
|
11
90118-968-000 Bolt, flange (6x20) |
90118-968-000 |
from US $2.29 |
||
|
12
|
12
90512-303-000 Washer (17.5mm) |
90512-303-000 |
from US $1.92 |
||
|
13
|
13
91206-968-003 Dust seal, 17x23x3 (nok) |
91206-968-003 |
from US $4.07 |
||
|
14
|
14
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
15
|
15
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
16
|
16
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
17
|
17
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
17
|
17
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
17
|
17
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
17
|
17
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
17
|
17
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
18
|
18
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
19
|
19
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
