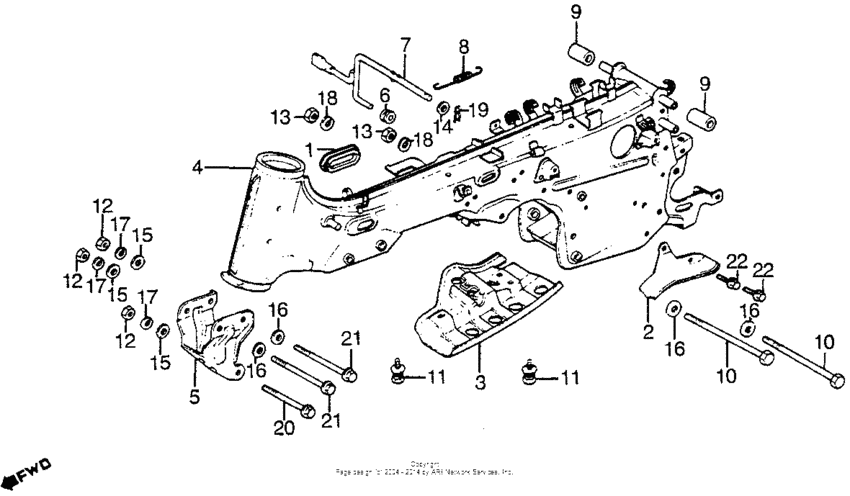

Frame Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32984-918-000
Grommet, harn
|
32984-918-000 |
— | ||
|
2
|
2
40526-968-000
Guide, chain
|
40526-968-000 |
— | ||
|
3
|
3
40528-968-000 Plate, protector |
40528-968-000 |
US $61.11 |
||
|
4
|
4
50100-968-000
Frame
|
50100-968-000 |
— | ||
|
5
|
5
50121-968-680
Hanger, engine
|
50121-968-680 |
— | ||
|
6
|
6
50220-943-000 Grommet, seat lock lever |
50220-943-000 |
from US $3.26 |
||
|
7
|
7
50221-943-010 Lever, seat lock |
50221-943-010 |
US $13.50 |
||
|
8
|
8
50222-918-000
Spring
|
50222-918-000 |
— | ||
|
9
|
9
50801-918-000
Rubber
|
50801-918-000 |
— | ||
|
10
|
10
92101-10120-0A Bolt, hex. (10x120) |
92101-10120-0A |
from US $1.48 |
||
|
11
|
11
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
12
|
12
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
13
|
13
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
15
|
15
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
16
|
16
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
17
|
17
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
18
|
18
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
19
|
19
9425106400 Pin, lock, 6mm |
9425106400 |
from US $0.44 |
||
|
20
|
20
95701-0805500 Bolt, flange, 8x55 |
95701-0805500 |
from US $0.86 |
||
|
21
|
21
95701-0808000 Bolt, flange, 8x80 |
95701-0808000 |
from US $0.89 |
||
|
22
|
22
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
