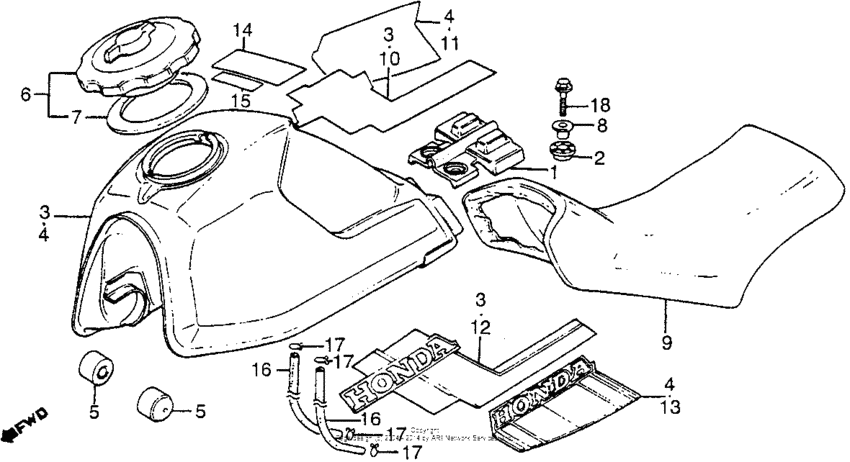

Fuel tank + seat Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17506-943-020
Rubber
|
17506-943-020 |
— | ||
|
2
|
2
17507-943-010
Rubber
|
17507-943-010 |
— | ||
|
3
|
3
17520-968-000ZA
Tk sub, fuel *r109*
|
17520-968-000ZA |
— | ||
|
5
|
5
17611-303-000 Rubber, fr |
17611-303-000 |
from US $7.99 |
||
|
6
|
6
17620-HC3-505
Cap comp.,fuel ta
|
17620-HC3-505 |
— | ||
|
7
|
7
17631-899-000 Packing, fuel filler cap |
17631-899-000 |
US $8.16 |
||
| replacement | |||||
|
7
|
7
17631-899-010 Packing, fuel filler cap |
17631-899-010 |
US $3.70 |
||
|
8
|
8
61104-943-000
Collar
|
61104-943-000 |
— | ||
|
9
|
9
77100-943-405
Seat
|
77100-943-405 |
— | ||
|
10
|
10
87123-968-000
Stripe, r. fuel tank
|
87123-968-000 |
— | ||
|
12
|
12
87124-968-000
Stripe, l. fuel tank
|
87124-968-000 |
— | ||
|
14
|
14
87135-968-000
Mark
|
87135-968-000 |
— | ||
|
15
|
15
87504-130-720ZA
Label *nh1*
|
87504-130-720ZA |
— | ||
|
16
|
16
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
17
|
17
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
18
|
18
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
18
|
18
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
18
|
18
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
