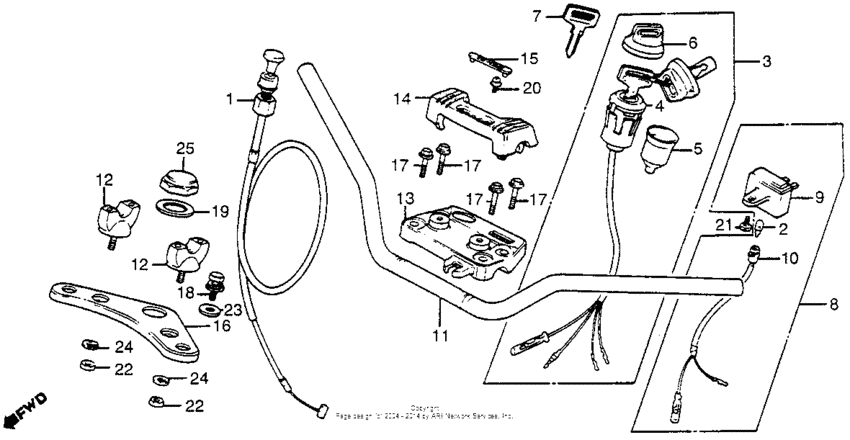

Handlebar + top bridge Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17950-968-000
Cable, choke
|
17950-968-000 |
— | ||
|
2
|
2
34908-MB0-003 Bulb, wedge base (12v 3w) |
34908-MB0-003 |
from US $2.22 |
||
| replacement | |||||
|
2
|
2
34275-S2X-003 Bulb 12V 2.3W Wed |
34275-S2X-003 |
from US $2.22 |
||
|
3
|
3
35010-958-680
Lock set
|
35010-958-680 |
— | ||
|
4
|
4
35010-958-680
Lock set
|
35010-958-680 |
— | ||
|
5
|
5
35105-958-680 Cover |
35105-958-680 |
US $5.18 |
||
|
6
|
6
35113-958-681 Cap, combination switch key |
35113-958-681 |
US $7.39 |
||
|
8
|
8
38400-968-003
Indicator, neutral
|
38400-968-003 |
— | ||
|
9
|
9
38401-968-003 Case |
38401-968-003 |
US $13.84 |
||
|
10
|
10
38402-968-003
Socket
|
38402-968-003 |
— | ||
|
11
|
11
53100-968-000
Handlebar
|
53100-968-000 |
— | ||
|
12
|
12
53130-HB9-000
Holder, handle
|
53130-HB9-000 |
— | ||
|
12
|
12
53130-958-000 Holder, handlebar |
53130-958-000 |
US $17.34 |
||
| replacement | |||||
|
12
|
12
53130-HB9-000
Holder, handle
|
53130-HB9-000 |
— | ||
|
13
|
13
53131-968-000
Holder, handlebar
|
53131-968-000 |
— | ||
|
14
|
14
53205-958-682
Cover, handlebar
|
53205-958-682 |
— | ||
|
15
|
15
53206-958-003
Label
|
53206-958-003 |
— | ||
|
16
|
16
53231-968-000
Bridge, fork top
|
53231-968-000 |
— | ||
|
17
|
17
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.14 |
||
|
18
|
18
90115-958-681
Bolt-washer (12x25)
|
90115-958-681 |
— | ||
|
19
|
19
90482-968-000
Washer
|
90482-968-000 |
— | ||
|
20
|
20
93891-060-200-8 Screw-washer6X20 |
93891-060-200-8 |
from US $0.52 |
||
|
21
|
21
93903-34320 ScrewTAPPING, 4X12 |
93903-34320 |
from US $0.37 |
||
|
22
|
22
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
23
|
23
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
24
|
24
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
|
25
|
25
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
