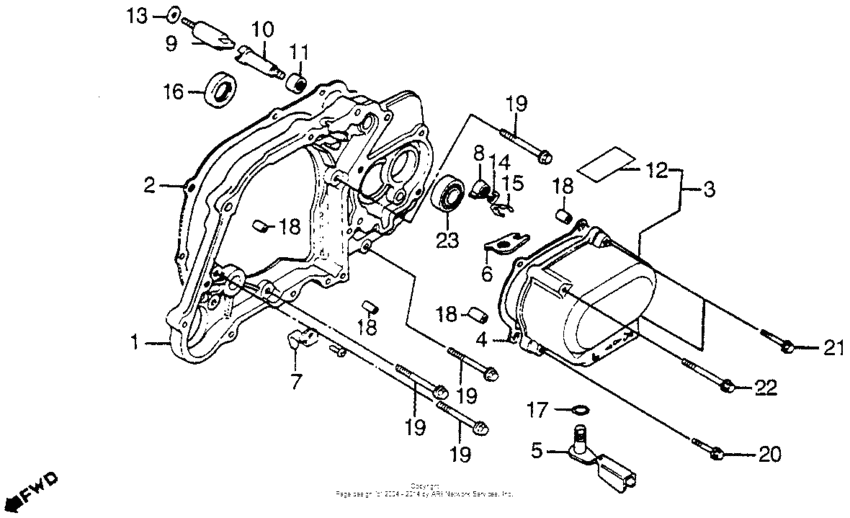

Left cover spacer + sub-transmission cover Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-968-000
Spacer, l. cover
|
11210-968-000 |
— | ||
|
2
|
2
11215-968-306
Gasket, l. spacer
|
11215-968-306 |
— | ||
|
3
|
3
11370-968-000
Cover, sub-trans
|
11370-968-000 |
— | ||
|
4
|
4
11693-968-306
Gasket
|
11693-968-306 |
— | ||
|
5
|
5
24821-968-000
Shaft, sub-change
|
24821-968-000 |
— | ||
|
6
|
6
24831-968-000
Arm, sub-change
|
24831-968-000 |
— | ||
|
7
|
7
28123-968-000
Plate
|
28123-968-000 |
— | ||
|
8
|
8
35762-HF7-000 Indicator, neutral |
35762-HF7-000 |
from US $5.71 |
||
|
8
|
8
35762-918-020
Indicator, neutral
|
35762-918-020 |
— | ||
| replacement | |||||
|
8
|
8
35762-HF7-000 Indicator, neutral |
35762-HF7-000 |
from US $5.71 |
||
|
9
|
9
35763-918-000 Shaft a |
35763-918-000 |
US $22.19 |
||
|
10
|
10
35764-968-000
Shaft b
|
35764-968-000 |
— | ||
|
11
|
11
35765-918-000
Collar
|
35765-918-000 |
— | ||
|
13
|
13
90417-918-000
Washer
|
90417-918-000 |
— | ||
|
15
|
15
90605-230-000 Circlip, 5mm |
90605-230-000 |
from US $2.15 |
||
|
16
|
16
91202-968-013
Oil seal (31x43x7)
|
91202-968-013 |
— | ||
|
17
|
17
91301-053-000 O-ring (7.5x15) |
91301-053-000 |
from US $2.22 |
||
|
17
|
17
91302-HB3-004 O-ring, 7.5x1.5 |
91302-HB3-004 |
from US $2 |
||
|
18
|
18
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
19
|
19
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
20
|
20
96001-0603200 Bolt, flange, 6x32 |
96001-0603200 |
from US $0.74 |
||
|
21
|
21
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
22
|
22
96001-0605500 Bolt, flange (6x55) |
96001-0605500 |
from US $0.81 |
||
|
23
|
23
96100-6201000 Bearing, radial ball, 6201 |
96100-6201000 |
from US $4.44 |
||
